ZS-210X8X3604 | Passive Line Array Speaker System with 8 x Dual 10" Line Array Speakers, Power Amplifier, 2 x Flying Frames, Black

Sound Town
Sound Town ZS-210X8X3604 | Passive Line Array Speaker System with 8 x Dual 10" Line Array Speakers, Power Amplifier, 2 x Flying Frames, Black

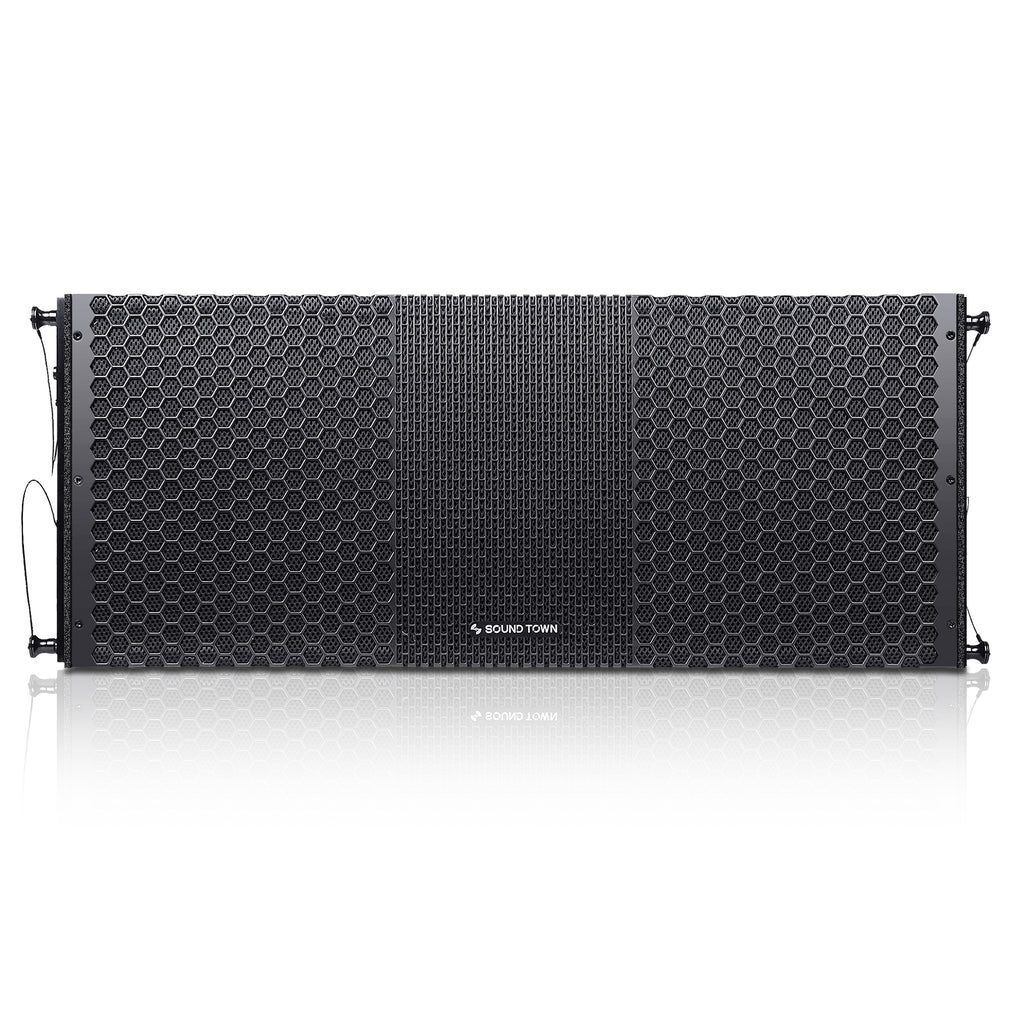

Sound Town ZETHUS-210BPW-R | REFURBISHED: ZETHUS Series Dual 10" Powered Line Array Loudspeaker with Onboard DSP, Black - Front panel
Sound Town ZETHUS-210B ZETHUS Series 2 x 10” Line Array Loudspeaker System with Dual Titanium Compression Drivers, Full Range/Bi-amp Switchable, Black - Back Panel
Sound Town XDI-3604 | Mode Audio High Power Density Class-D 4-Channel PA/DJ Power Amplifier, 4 x 3600W RMS at 4-ohm, with PFC Power, LED Screen - Front Panel
Sound Town XDI-3604 | Mode Audio High Power Density Class-D 4-Channel PA/DJ Power Amplifier, 4 x 3600W RMS at 4-ohm, with PFC Power, LED Screen - Back Panel
Sound Town ZETHUS-210FF ZETHUS Series Mounting Frame for Suspending ZETHUS-210B Line Array Speaker
Passive Line Array Speaker System with 8 x Dual 10" Line Array Speakers, Power Amplifier, 2 x Flying Frames, Black for Live Event

$7,299.99 $10,949.99

Experience professional-grade sound with the Sound Town ZS-210X8X3604 line array system, a complete solution for high-performance audio. This set includes:

The ZETHUS-210B line array speaker delivers superior sound quality with two 10” woofers and two titanium compression drivers. Each of the speakers comes with 550W RMS, 1100W program extraordinary power handling capability. Housed in an all birch plywood enclosure, with heavy duty metal grill and aluminum extrusion rigging hardware, it holds up to mobile applications with rugged construction.

The MODE Audio XDi-3604 Class-D amplifier is designed to complement the ZETHUS-210B speakers, delivering 3600W RMS per channel at 4Ω. Featuring Power Factor Correction (PFC), it ensures efficiency, reduces heat, and stabilizes output, making it ideal for demanding live sound applications. The amplifier’s stable, high-quality output guarantees that every performance will have reliable and clear audio.

For optimal versatility, the ZETHUS-210FF flying frame enables secure suspension and precise positioning of the ZETHUS-210B speakers, ideal for permanent installations. Featuring four safety pins and four shackles, this frame ensures reliable suspension.

  • SOUND TOWN ZETHUS ZS-210X8X3604 PASSIVE LINE ARRAY SET: The Sound Town ZETHUS series ZS-ZS-210X8X3604 line array set includes (8) ZETHUS-210B line array speakers, (1) XDi-3604 power amplifier, and (2) ZETHUS-210FF flying frames for suspension setup.
  • ZETHUS-210B LINE ARRAY SPEAKERS: The ZETHUS-210B is a compact line array speaker which delivers superior sound quality with two 10” woofers and two titanium compression drivers. Each of the speakers comes with 550W RMS, 1100W program extraordinary power handling capability.
  • XDi-3604 PROFESSIONAL AMPLIFIER: The XDi-3604 is a class-D amplifier, delivering 3600W RMS per channel at 4Ω. With the Power Factor Correction (PFC) design, increases efficiency, reduces heat and interference while ensuring stable, high-quality output, perfectly suited for use with FILA-28LMH line array speakers.
  • ZETHUS-210FF SUSPENSION FLYING FRAME: Achieve secure suspension for your ZETHUS-210B line array speakers with the ZETHUS-210FF flying frame, enhancing audio performance in permanent installations or professional event setups. Featuring four safety pins and four shackles, this frame ensures reliable suspension.
  • TOUR-LEVEL CRAFTSMANSHIP: Built with a birch plywood enclosure and finished with a durable polyurea coating, this design minimizes distortion and unwanted vibrations. A rugged perforated steel grille adds durability and protection, making it road-ready for reliable performance even in the most demanding conditions.

Specifications

Model ZETHUS-210B
Active / Passive Passive
Frequency Range 52 Hz - 19 kHz
Frequency Response 52 Hz - 19 kHz
Sensitivity 103 dB (Passive)
SPL Max 130 dB
Dispersion 120º x 15º (H x V)
Configuration Compact dual 10" passive full-range line array loudspeaker
Transducer LF: 2 x 10", HF: 2 x 1.4" diaphragm
Voice Coil 2.5"
Magnet 50 oz
Impedance 16Ω Nominal (Bi-Amp)
Power Handling 550W RMS / 2200W Peak
Enclosure Material High-grade 100% birch plywood
Mounting Hardware Compact line array aluminum hardware / Optional flying frame (ZETHUS-210FF)
Finish Texture coating (RAL colors available)
Grill & Rigging Component Steel with anti-corrosion coat
Amplifier --
Input 4 Pin SPEAKON
Output 4 Pin SPEAKON
Signal Processing --
Control --
Indicator --
Voltage --
Crossover Parts# XO-Z210
High Frequency Driver Parts# STHF-3403T
Low Frequency Woofer Parts# STLF-10Z



Model XDi-3604
Stereo Power (8Ω) 4 x 2000W
Stereo Power (4Ω) 4 x 3600W
Bridge Power (8Ω) 2 x 6800W
Rated Power Demand 100-240V ± 10%, 50/60 Hz
Gain/Sensitivity 32 dB, 35 db, 38 dB, 41 dB
Frequency Response 20 Hz - 20 kHz (1W @ 8Ω, ± 0.5 dB)
S/N Ratio >110 dBA (20 Hz - 20 kHz, A weighted)
Input Impedance 10kΩ balanced
Total Harmonic Distortion (THD) <0.5% from 1W to full power (typical value<0.05%)
Damping Factor (8Ω) >5000 @ 20-200 Hz
Slew Rate 50V/ us @ 8Ω
Input Connector One balanced XLR (with lock) female per channel
Output Connector One SPEAKON per channel connect to loudspeakers
Multiple-Functions Switch Two Sensitivity Switches, one Mode Switch and one Clip Switch



Dimension & Weight

Model ZETHUS-210B ZETHUS-210FF XDi-3604
Product Width (in.) 30.3" 30.3" 18.9"
Product Height (in.) 12.6" 3.7" 1.7"
Product Depth (in.) 16.5" 24.8" 18.5"
Product Weight (lb.) 65.0" 41.8 lbs 24.0 lbs
Package Width (in.) 37.6" 31.7" 25.2"
Package Height (in.) 16.3" 4.3" 5.7"
Package Depth (in.) 19.6" 26.2" 25.2"
Package Weight (lb.) 69.0 lbs 44.9 lbs 33.0 lbs


Warranty/Certifications

Manufacturer Warranty 1 Year



▶ XDi Series User Manual
▶ MODE Audio Power Amplifier Brochure
▶ ZETHUS Series Brochure
