ZETHUS-218SPW | ZETHUS Series Dual 18“ Powered 3200W Line Array Subwoofer w/ DSP, 2-Channel Class-D Amplifier, Birch Plywood, Black
- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- DOWNLOADS
- REVIEWS
The Sound Town ZETHUS Series ZETHUS-218SPW premium line array subwoofer boasts dual 18” woofers and 4” voice coils, energized by a 2-channel class-D amplifier, delivering a remarkable 1600W continuous and 3200W peak power. Designed for seamless integration, it features (2) XLR-1/4" combo inputs and balanced XLR outputs, making connectivity effortless with the ZETHUS Series full-range and other full-range speakers. With the integrated digital signal processor (DSP) and a toggle between full-range and high-pass output modes, the ZETHUS Series subwoofer ensures a versatile audio experience.
Encased in a robust birch plywood enclosure, the ZETHUS-218SPW subwoofer guarantees minimal distortion and vibrations even at high volume outputs - a testament to top-tier craftsmanship. The ZETHUS-218SPW is thoughtfully designed with multiple side handles for easy transportation. For those always on the go, the ZSCB-218S caster board (sold separately) simplifies ground stacking and mobility, making it a top choice for mobile setups. Enhance your sound system further by integrating the ZETHUS-210BPW full-range powered line array speakers (sold separately) using the ZETHUS-SF1 mounting frame (also sold separately) for ground stacking. Experience unmatched bass precision with the ZETHUS-218SPW subwoofer, tailored for venues ranging from stages, auditoriums, clubs, and bars to restaurants and places of worship.
- ZETHUS SERIES POWERED SUBWOOFER: The ZETHUS-218SPW subwoofer features dual 18" woofers with 4" voice coils, powered by a 2-channel class-D amplifier capable of 1600W continuous, 3200W peak power.
- XLR & 1/4” INPUT - XLR OUTPUT: Seamlessly integrate the ZETHUS Series subwoofer with its (2) XLR-1/4“ combo input and balanced XLR outputs. With the built-in digital signal processor (DSP) presets and a toggle between full-range and high-pass output modes, it ensures easy connectivity with full-range ZETHUS speakers.
- TOUR-LEVEL CRAFTSMANSHIP: Built with high-quality birch plywood enclosure designed to resist distortion and unwanted vibrations, even at high output levels, for a clear and accurate output.
- PORTABLE PERFORMANCE: Designed with multiple side handles simplifying transport. The ZSCB-218S caster board (sold separately) allows for ground stacking and hassle-free transportation, making it an ideal choice for mobile setups. Perfect for stages, auditoriums, clubs, bars, restaurants, place of worship, and more.
-
SEAMLESS INTEGRATION: Easily add and integrate ZETHUS-210BPW full-range powered line array speakers (sold separately) to the ZETHUS-218SPW subwoofer for a complete line array system with an impressive sound performance using the ZETHUS-SF1 mounting frame (sold separately) for ground stacking.
Specifications
Model | ZETHUS-218SPW |
Active / Passive | Active |
Frequency Range | 27 Hz - 180 Hz |
Frequency Response | 32 Hz - 180 Hz |
Sensitivity | 104 dB |
SPL Max | 135 dB |
Dispersion | Omnidirectional |
Configuration | Dual 18" active line array subwoofer |
Transducer | LF: 2 x 18" woofer, HF: -- |
Impedance | 2 x 8Ω Nominal (bi-amp) |
Power Handling | 1600W RMS / 3200W Peak |
Enclosure Material | High-grade 100% birch plywood |
Mounting Hardware | Integrated line array hardware |
Finish | Texture coating |
Grill & Rigging Component | Steel with anti-corrosion coat |
Amplifier | Class-D amplifier (2-channel bi-amped) |
Input | 2 x 1/4" & XLR combo |
Output |
2 x XLR (FULL RANGE/HIGH PASS) |
Signal Processing |
PRESETTING EQ (LPF), POLARITY SWITCH |
Control | Volume, polarity, LPF |
Indicator | -- |
Voltage | Neutrik PowerCON in & out 100V-240V (50-60 Hz) |
Caster Board Model# | ZSCB-218S |
Dimension & Weight

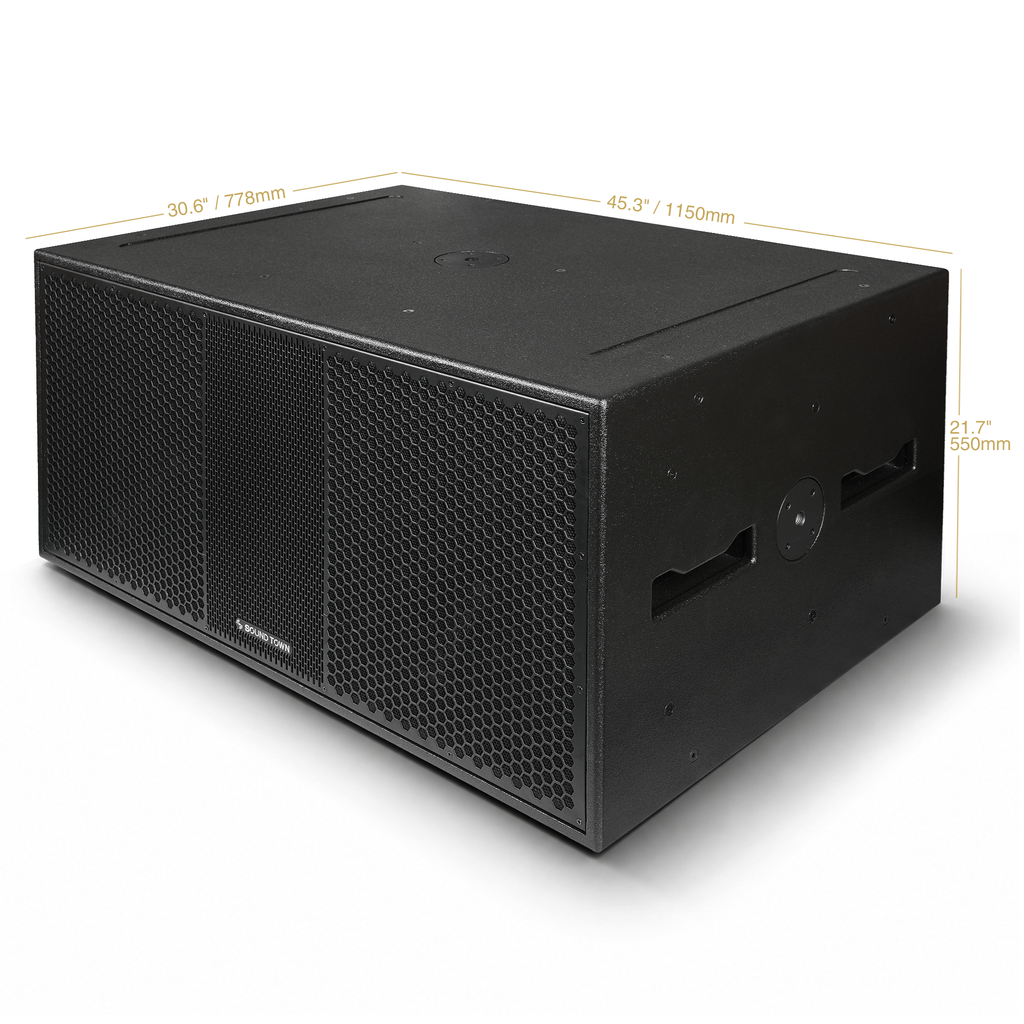

Product Width (in.) |
45.3" |
Package Width (in.) | 50.8" |
Product Height (in.) | 21.7" | Package Height (in.) | 28.0" |
Product Depth (in.) | 30.6" | Package Depth (in.) | 36.2" |
Product Weight (lb.) | 272.0 lbs | Package Weight (lb.) | 284.2 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
