ZETHUS-218S210X4 | ZETHUS Series Line Array System with One Dual 18-inch Bi-Amp Subwoofer, Four Compact Dual 10-inch PA Speakers, One Stack Adapter, Black

Sound Town
Sound Town ZETHUS-218S210X4 ZETHUS Series Line Array System with One Dual 18-inch Subwoofer, Four Compact Dual 10-inch PA Speakers, One stack adapter, Black - Right Panel
Sound Town ZETHUS-218S210X4 ZETHUS Series Line Array System with One Dual 18-inch Subwoofer, Four Compact Dual 10-inch PA Speakers, One stack adapter, Black - Front Panel
Sound Town ZETHUS-218S210X4 ZETHUS Series Line Array System with One Dual 18-inch Subwoofer, Four Compact Dual 10-inch PA Speakers, One stack adapter, Black - Left Panel
Sound Town ZETHUS-218S210X4 ZETHUS Series Line Array System with One Dual 18-inch Subwoofer, Four Compact Dual 10-inch PA Speakers, One stack adapter, Black - Back Panel
Sound Town ZETHUS-218S210X4 | ZETHUS Series Dual 18" 3200W High Power Line Array Passive Subwoofer, Bi-Amp Switchable, Black, for Stages, Bars, Clubs - Right Panel with Carry Handles

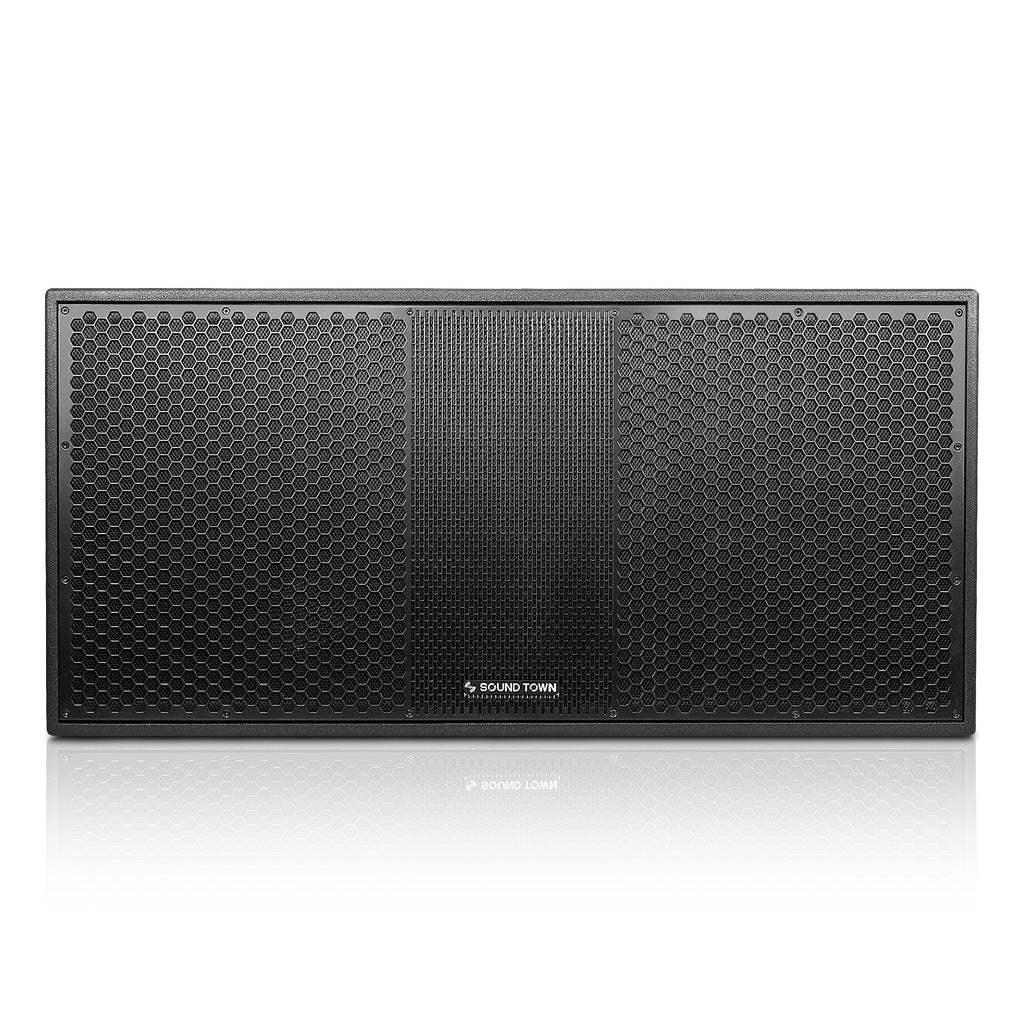

Sound Town ZETHUS-218S210X4 | ZETHUS Series Dual 18" 3200W High Power Line Array Passive Subwoofer, Bi-Amp Switchable, Black, for Stages, Bars, Clubs - Front Panel Grill

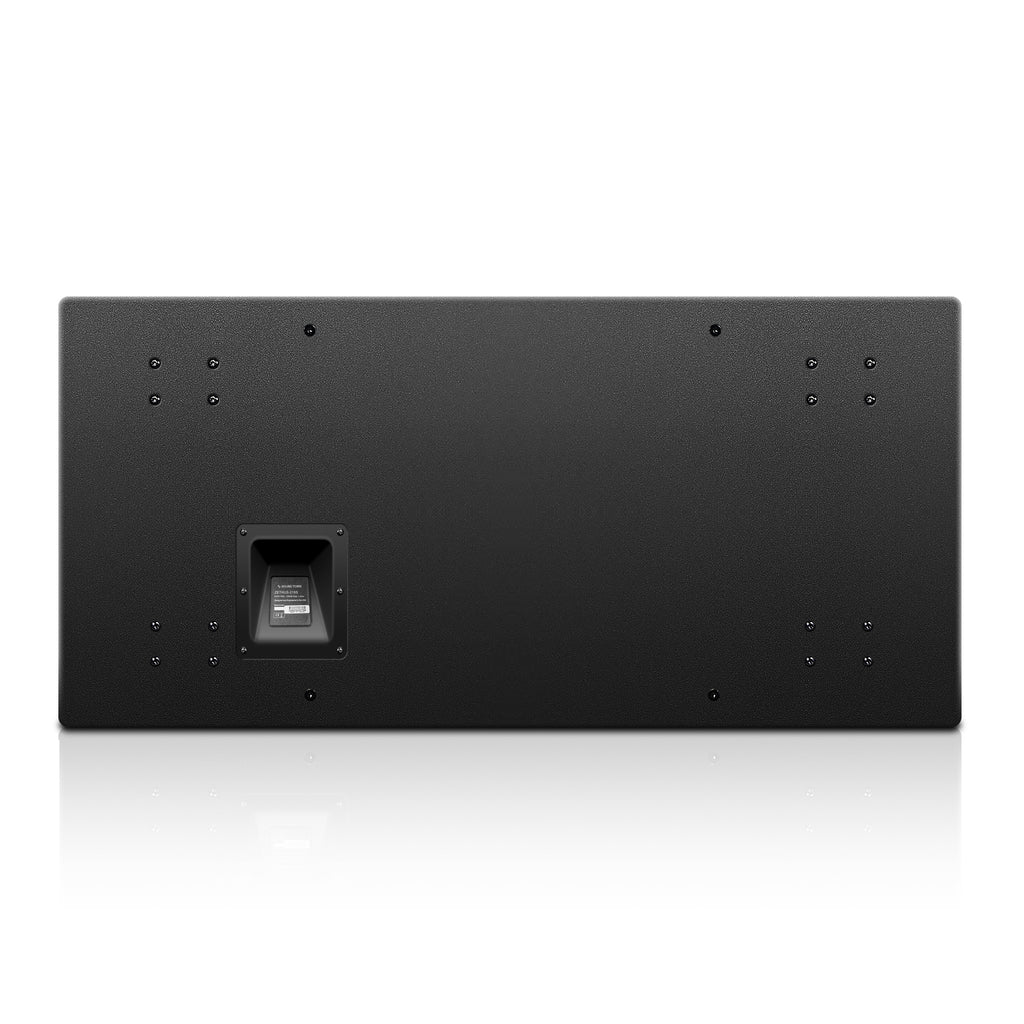

Sound Town ZETHUS-218S210X4 | ZETHUS Series Dual 18" 3200W High Power Line Array Passive Subwoofer, Bi-Amp Switchable, Black, for Stages, Bars, Clubs - Back Panel Speakon Connectors

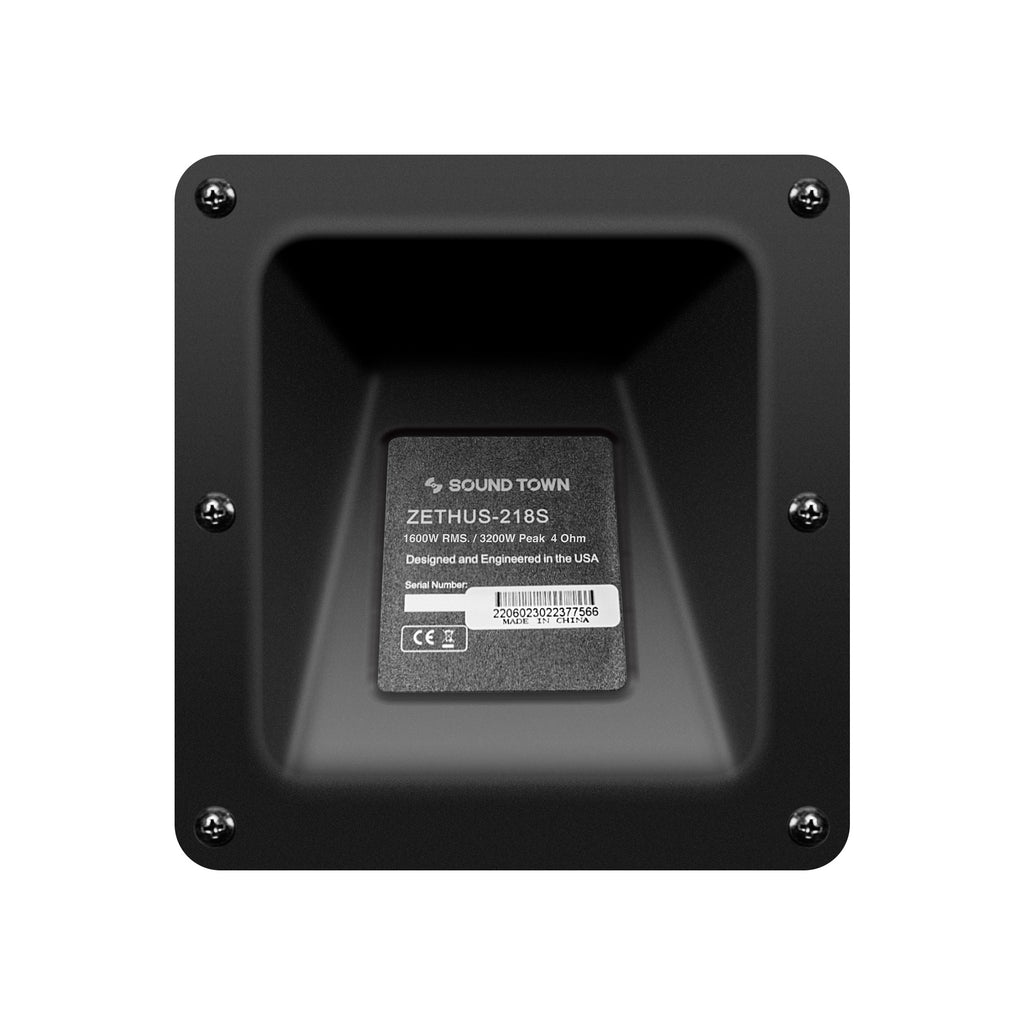

Sound Town ZETHUS-218S210X4 | ZETHUS Series Dual 18" 3200W High Power Line Array Passive Subwoofer, Bi-Amp Switchable, Black, for Stages, Bars, Clubs - Input Plate
Sound Town ZETHUS-218S210X4 | ZETHUS Series Dual 18" 3200W High Power Line Array Passive Subwoofer, Bi-Amp Switchable, Black, for Stages, Bars, Clubs - Customized High-Power Low-Frequency Transducer

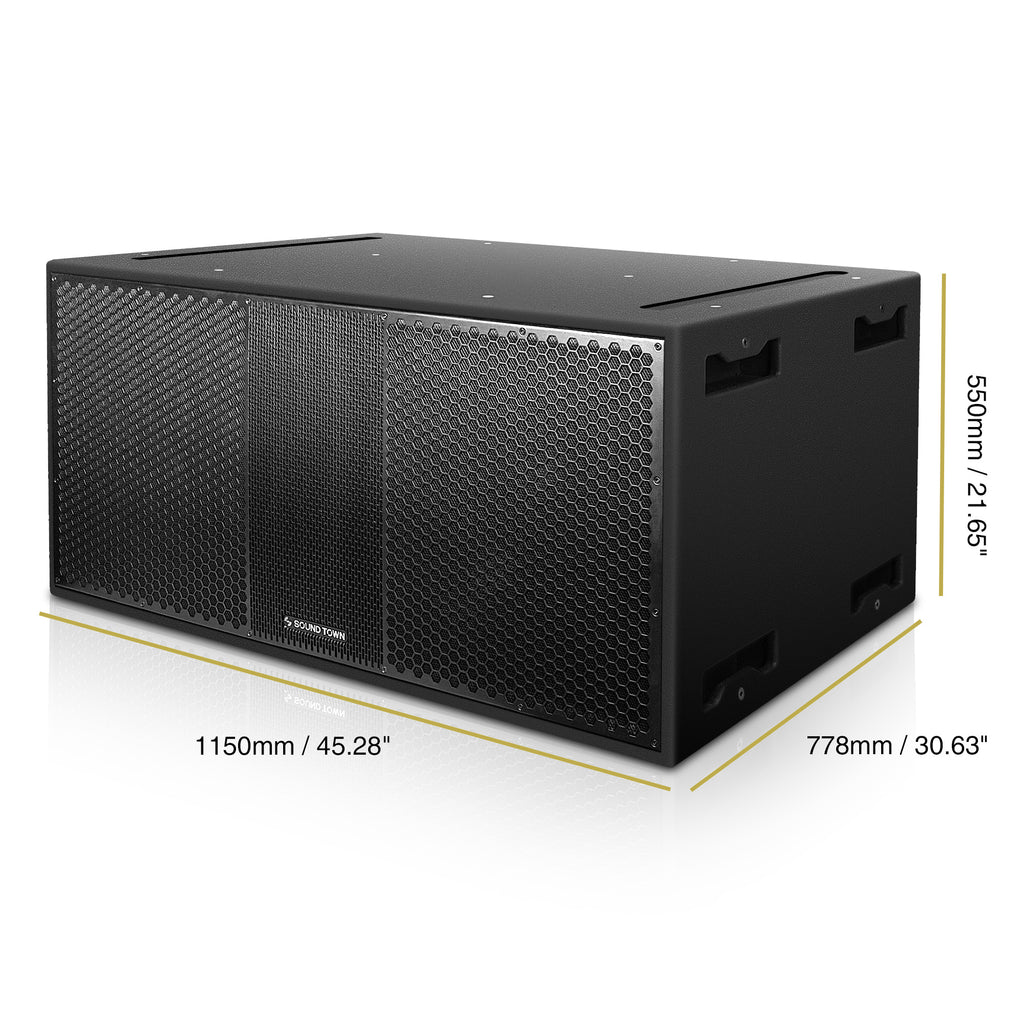

Sound Town ZETHUS-218S210X4 | ZETHUS Series Dual 18" 3200W High Power Line Array Passive Subwoofer, Bi-Amp Switchable, Black, for Stages, Bars, Clubs - Size and Dimensions, M20 Threaded Pole Mount Socket, Carry Handles
Sound Town ZETHUS-218S210X4 ZETHUS Series 2 x 10” Line Array Loudspeaker System with Dual Titanium Compression Drivers, Full Range/Bi-amp Switchable, Black - right panel
Sound Town ZETHUS-218S210X4 ZETHUS Series 2 x 10” Line Array Loudspeaker System with Dual Titanium Compression Drivers, Full Range/Bi-amp Switchable, Black - front panel
Sound Town ZETHUS-218S210X4 ZETHUS Series 2 x 10” Line Array Loudspeaker System with Dual Titanium Compression Drivers, Full Range/Bi-amp Switchable, Black - left panel
Sound Town ZETHUS-218S210X4 ZETHUS Series 2 x 10” Line Array Loudspeaker System with Dual Titanium Compression Drivers, Full Range/Bi-amp Switchable, Black - 3D
Sound Town ZETHUS-218S210X4 ZETHUS Series 2 x 10” Line Array Loudspeaker System with Dual Titanium Compression Drivers, Full Range/Bi-amp Switchable, Black - Back panel
Sound Town ZETHUS-218S210X4 ZETHUS Series 2 x 10” Line Array Loudspeaker System with Dual Titanium Compression Drivers, Full Range/Bi-amp Switchable, Black - Jack Plate, Bi-amp
Sound Town ZETHUS-218S210X4 ZETHUS Series 2 x 10” Line Array Loudspeaker System with Dual Titanium Compression Drivers, Full Range/Bi-amp Switchable, Black - Specifications with Performance Curve, SPL vs. Frequency and Impedance vs. Frequency graphs, size and dimensions.
Sound Town ZETHUS-218S210X4 Speaker Stack Adapter for ZETHUS-218S Subwoofer and ZETHUS Line Array PA Speakers - ground stacked
Sound Town ZETHUS-218S210X4 Speaker Stack Adapter for ZETHUS-218S Subwoofer and ZETHUS Line Array PA Speakers - ground stacked bracket
Sound Town ZETHUS-218S210X4 Speaker Stack Adapter for ZETHUS-218S Subwoofer and ZETHUS Line Array PA Speakers - size and dimensions
Sound Town ZETHUS-218S210X4 Heavy-Duty Plywood Caster Board for ZETHUS-218S/218SPW Subwoofers and Furniture with 4-inch Wheels and Brakes - Sold Separately
Sound Town ZETHUS-218S210X4 ZETHUS Series Line Array System with One Dual 18-inch Subwoofer, Four Compact Dual 10-inch PA Speakers, One stack adapter, Black - Live Events

$4,699.99 $6,697.99

The Sound Town ZETHUS Series ZETHUS-218S210X4 line array speaker system includes:

  • (1) ZETHUS-218S Passive Dual 18" 3200W Line Array Passive Bi-Amp Subwoofer
  • (4) ZETHUS-210B Passive Dual 10” Line Array Loudspeaker System
  • (1) ZETHUS-SF1 Stack Adapter

The ZETHUS-218S is a 3200W high power passive subwoofer. It comes with two 18” woofers, one 4“ voice coil and delivers deep, rich and tight bass. It operates at 1600W RMS and has a peak power output of 3200W and is wired at 4-Ohm. The frequency range can be driven down to 32 Hz. The ZETHUS-210B is a lightweight and compact line array speaker. It comes with two 10” woofers and one 1.4” compression driver with 550W RMS, 1100W peak power handling capability.

Four ZETHUS-210B line array speakers can be quickly stacked on top of the ZETHUS-218S subwoofer and secured with the stack adapter ZETHUS-SF1. Altogether they deliver accurate and immersive sound performance at earth-shaking volume. The line array system is ideal for mid and large-size live sound venues such as stages, bars, ballrooms, restaurants, houses of worship, convention centers, live theaters and more.

  • The line array speaker system includes 1 x ZETHUS-218S passive line array subwoofer, 4 x ZETHUS-210B passive line array speakers, and 1 x ZETHUS-SF1 stack adapter.
  • The ZETHUS-218S is a high-power passive line array subwoofer. With two 18” woofers and one 4" voice coil built in, the ZETHUS-218S subwoofer handles 1600W RMS / 3200W peak power output, and delivers deep, rich and punchy bass.
  • The ZETHUS-210B is a lightweight and compact line array speaker. It comes with two 10” woofers and one 1.4“ compression driver with 550W RMS, 1100W peak power handling capability.
  • Four ZETHUS-210B line array speakers can be quickly stacked on top of the ZETHUS-218S subwoofer and secured with the stack adapter ZETHUS-SF1. Altogether they deliver accurate and immersive sound performance at earth-shaking volume.
  • Perfect for live sound venues such as stages, bars, ballrooms, restaurants, houses of worship, convention centers, theaters and more.

Specifications

Model ZETHUS-218S ZETHUS-210B
Active / Passive Passive Passive
Frequency Response 32 Hz - 180 Hz 58 Hz ~ 19 kHz
Sensitivity 104 dB (Passive) 103 dB (Passive)
SPL Max 135 dB 130 dB
Dispersion Omnidirectional 120º x 15º (H x V)
Configuration Dual 18" passive line array subwoofer Compact dual 10" passive full-range line array loudspeaker
Transducer LF: 2 x 18" woofer, HF: -- LF: 2 x 10", HF: 2 x 1.4" diaphragm
Voice Coil 4"
 2.5"
Magnet 145 oz
 50 oz
Impedance Parallel: 4Ω; Bi-Amp: 2 x 8Ω 16Ω Nominal (Bi-Amp)
Power Handling 1600W RMS, 3200W PROGRAM, 6400W PEAK 550W RMS / 2200W Peak
Connectors 2 x 4 Pin Speakon 2 x 4 Pin Speakon
Cabinet Construction High-grade 100% birch plywood High-grade 100% birch plywood
Mounting M8 inserts for stack frame mounting, M20 threading pole mount socket on the side --
Flying/Mounting Bracket Model# ZETHUS-SF1 Compact line array aluminum hardware / Optional flying frame (ZETHUS-210FF)
Finish Texture coating Texture coating
Grill & Rigging Component Steel with anti-corrosion coat Steel with anti-corrosion coat
Amplifier --
 --
Input --
 --
Output --
 --
Signal Processing --
 --
Control --
 --
Indicator --
 --
Voltage --
 --
Crossover Parts# -- XO-Z210
High Frequency Driver Parts# -- STHF-3403T
Low Frequency Woofer Parts# STLF-18AS STLF-10Z
Caster Board Model# ZSCB-218S --


Dimension & Weight

Model
 ZETHUS-218S ZETHUS-210B (each) ZETHUS-SF1
Product Width (in.) 45.3" 30.3" 32.2"
Product Height (in.) 21.7" 12.6" 2.0"
Product Depth (in.) 30.6" 16.5" 18.1"
Product Weight (lb.) 236.0 lbs 65.0 lbs 21.0 lbs
Package Width (in.) 50.8" 37.6" 32.9"
Package Height (in.) 28.1" 16.3" 3.0"
Package Depth (in.) 36.2" 19.6" 18.9"
Package Weight (lb.) 247.5 lbs 69.0 lbs
 23.2 lbs


Warranty/Certifications

Manufacturer Warranty 1 Year



▶ ZETHUS Series Brochure
