ZETHUS-208BV2X4 | ZETHUS Series Line Array Speaker System with Four Compact 2 X 8-inch Passive Line Array Speakers, Black for Installation, Live Sound, Bar, Club
- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- DOWNLOADS
- REVIEWS
DESCRIPTION

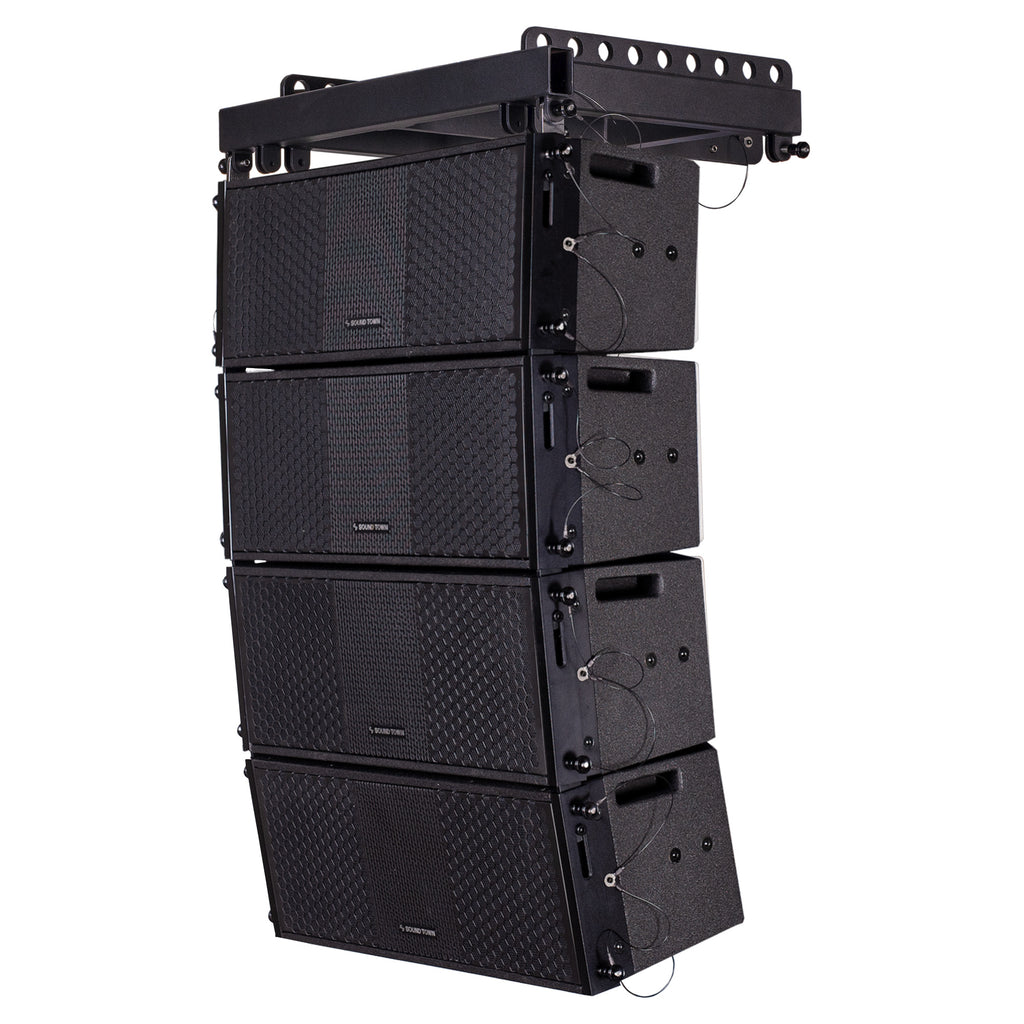

The Sound Town ZETHUS Series ZETHUS-208BV2X4 line array speaker system includes:
- (4) ZETHUS-208BV2 line array speakers
- (1) ZETHUS-208FF mounting frame.
The ZETHUS-208BV2 is a lightweight and compact line array speaker which delivers superior sound quality with two 8” woofers, one 1.75” titanium compression driver and 350W RMS, 700W peak (16-Ohm) extraordinary power handling capability.
The line array speakers can be quickly stacked and secured with attached mounting points and heavy-duty metal handles on the rear panels. With 4 speakers packed together, they deliver accurate and immersive sound performance, ideal for medium to large-sized venues including clubs, bars, restaurants, churches and schools etc.
FEATURES
- The ZETHUS-208BV2 is a lightweight and compact line array speaker which delivers superior sound quality with two 8” woofers, one 1.75” titanium compression driver and 350W RMS, 700W peak (16-Ohm) extraordinary power handling capability
- The high-quality plywood enclosure comes with heavy-duty metal grille and rugged construction
- 4 line array speakers can be quickly stacked and secured with attached mounting points and heavy-duty metal handles on the rear panels. With 4 speakers packed together, they deliver accurate and immersive sound performance
- With the mounting frame, the speaker system can be flown for optimum coverage. Ideal for a wide range of installation applications ranging from live entertainment, clubs to churches or other venues where a line array speaker system is desired
SPECIFICATIONS
Specifications
Model | ZETHUS-208BV2 |
Frequency Response | 60 Hz - 20 kHz |
Sensitivity | 101 dB (Passive) |
SPL Max | 128 dB |
Dispersion | 90º x 15º (H x V) |
Configuration | Compact dual 8" passive full-range line array loudspeaker |
Transducer | LF: 2 x 8", HF: 1 x 1.75" diaphragm |
Voice Coil | 2" |
Magnet | 30 oz |
Impedance | 16Ω Nominal |
Power Handling | 350 / 700W |
Connectors | 2 x 4 Pin Speakon |
Cabinet Construction | High-grade 100% birch plywood |
Mounting | Compact line array hardware / Optional U bracket |
Finish | Texture coating (RAL colors available) |
Grill & Rigging Component | Steel with anti-corrosion coat |
Crossover Parts# | XO-Z208 |
High Frequency Driver Parts# | STHF-4403T |
Low Frequency Woofer Parts# | STLF-08Z |
Dimension & Weight
Model |
ZETHUS-208BV2 (each) | ZETHUS-208FF |
Product Width (in.) | 26.4" | 26.3" |
Product Height (in.) | 9.7" | 2.3" |
Product Depth (in.) | 13.5" | 25.4" |
Product Weight (lb.) | 42.0 lbs | 37.5 lbs |
Package Width (in.) | 29.3" | 28.0" |
Package Height (in.) | 13.1" | 4.1" |
Package Depth (in.) | 16.5" | 26.8" |
Package Weight (lb.) | 45.8 lbs | 42.1 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
