ZETHUS-208BV2 | ZETHUS Series 2 x 8” Line Array Loudspeaker, w/ Titanium Compression Driver, Plywood, Full Range/Bi-amp Switchable, Black

Sound Town

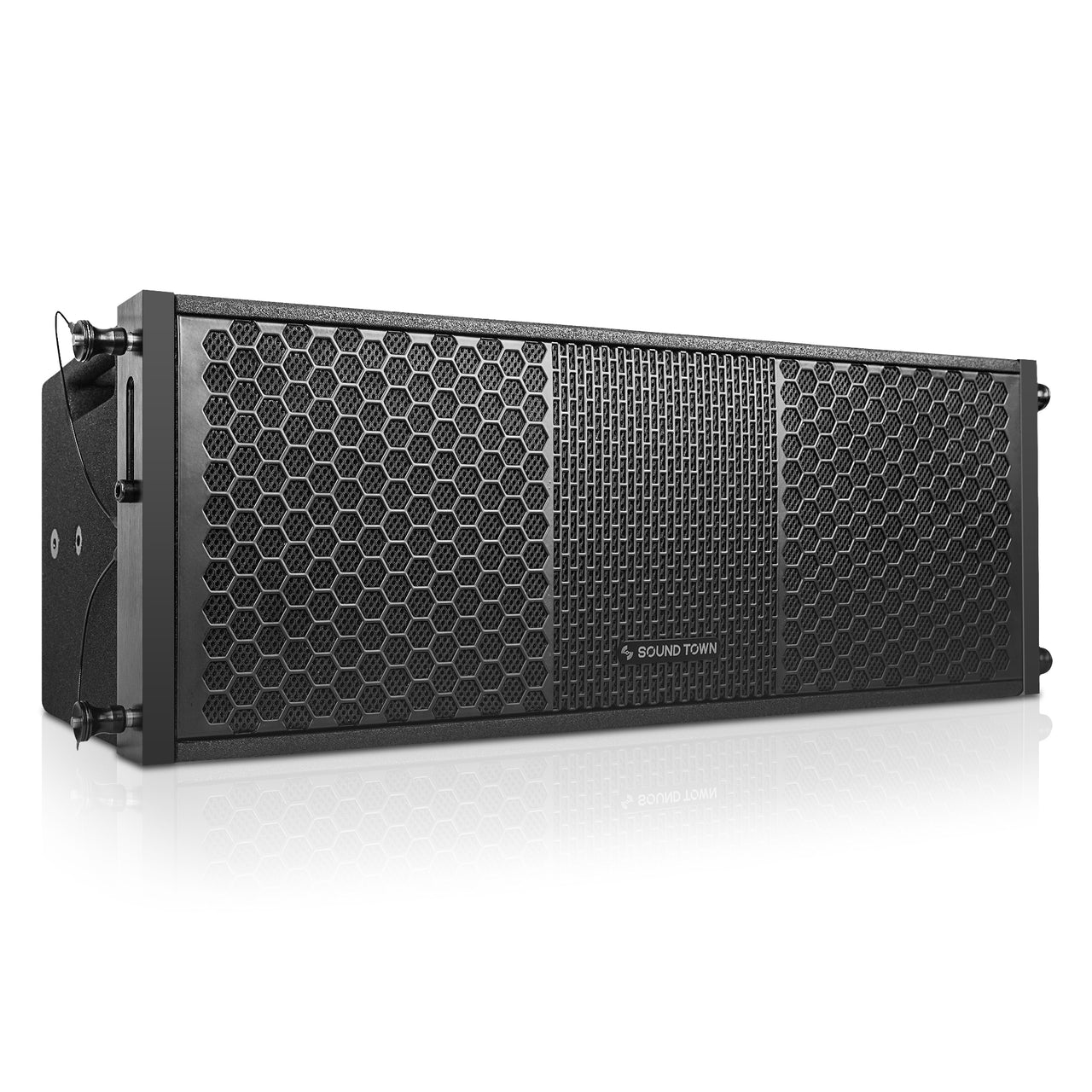

Sound Town ZETHUS-208BV2 2 X 8” Line Array Loudspeaker System with Titanium Compression Driver, Black - Right Panel

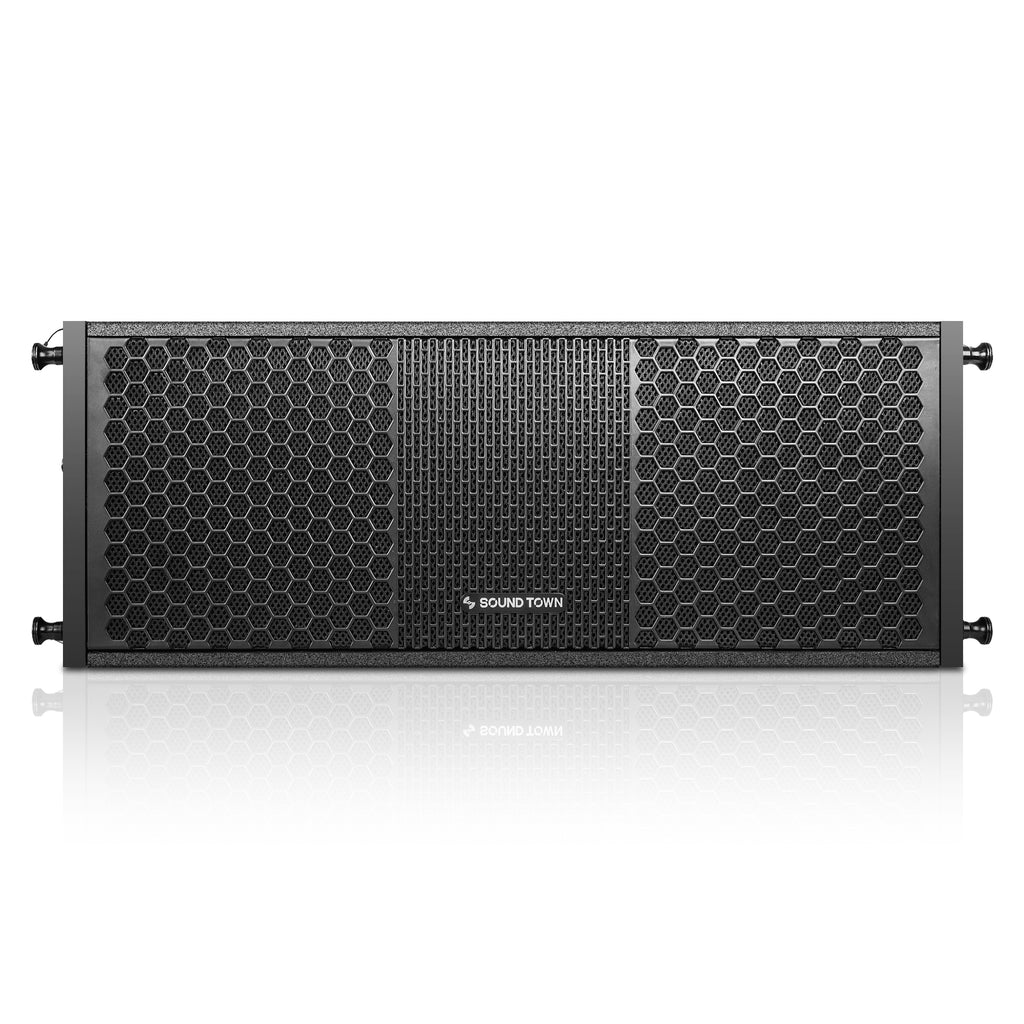

Sound Town ZETHUS-208BV2 2 X 8” Line Array Loudspeaker System with Titanium Compression Driver, Black - Front Panel
Sound Town ZETHUS-208BV2 2 X 8” Line Array Loudspeaker System with Titanium Compression Driver, Black - Left Panel
Sound Town ZETHUS-208BV2 2 X 8” Line Array Loudspeaker System with Titanium Compression Driver, Black - Back Panel

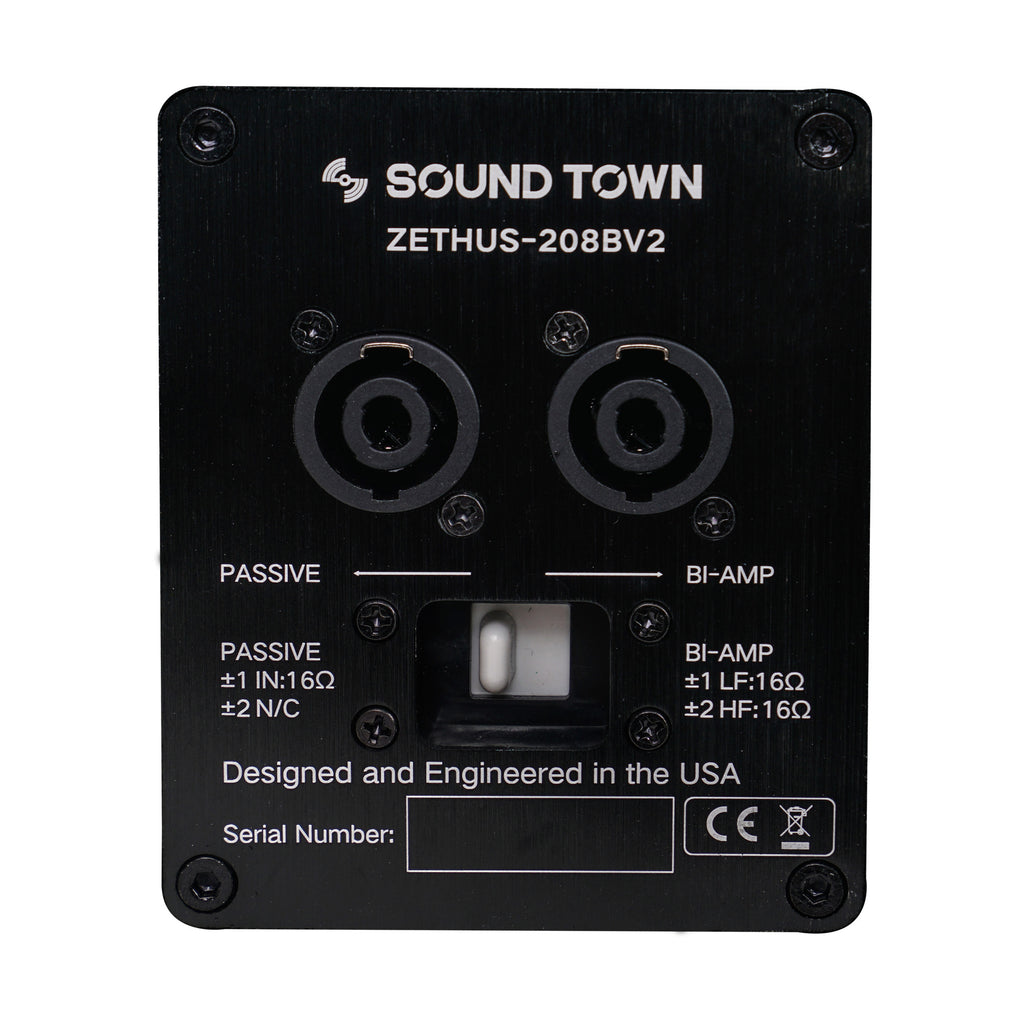

ZETHUS-208BV2 2 X 8” Line Array Loudspeaker System with Titanium Compression Driver, Black - Input Connectors
Sound Town ZETHUS-208BV2 3D Model

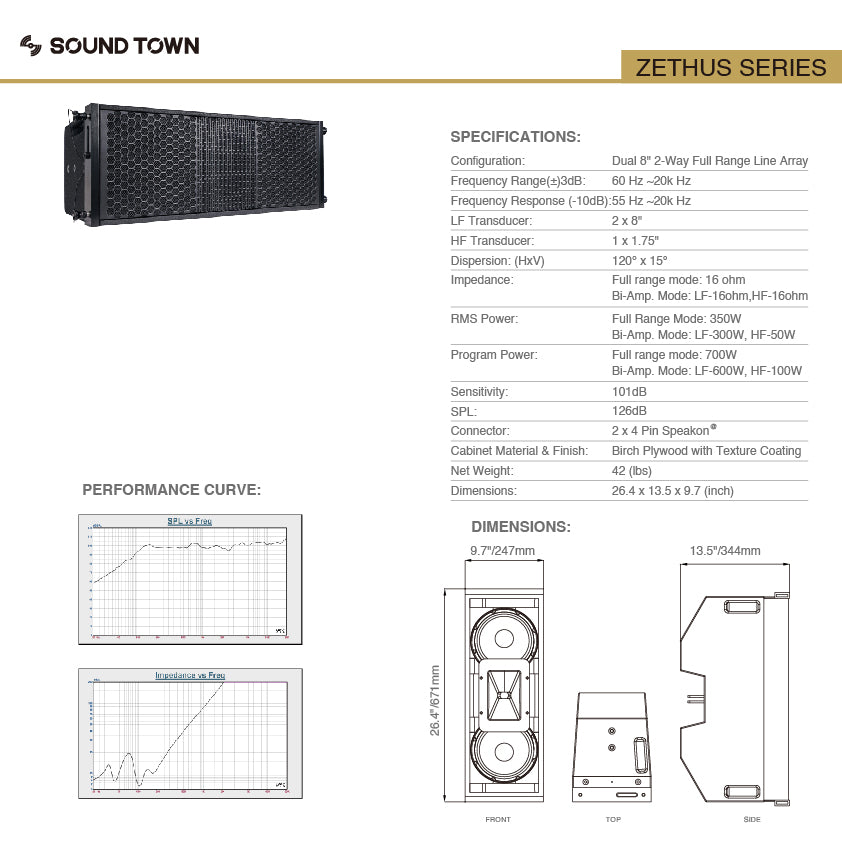

Sound Town ZETHUS-208BV2 2 X 8” Line Array Loudspeaker System with Titanium Compression Driver, Black - Specifications, Performance Curve, SPL vs. Frequency, Impedance vs. Frequency, Size & Dimensions

$499.99 $712.99

The Sound Town ZETHUS-208BV2 is a lightweight and compact line array speaker system, which provides outstanding sound quality, flexibility and elegant aesthetics for a diverse range of applications. It comes with two 8” woofers and one 1.75” titanium compression driver with 700W peak power handling capability. The full range speaker itself delivers a frequency range of 55 Hz to 19K Hz and when combined with the Sound Town ZETHUS-115S subwoofer (available separately), the line array system produces a frequency range all the way down to 35 Hz. This speaker comes with two Speakon input connectors and is easy to be connected with your PA system.

The Sound Town ZETHUS-208BV2 array speaker has multiple flying points and provides flexible mounting or suspension options with separately available mounting accessories including flying frame (ZETHUS-208FF) mounting pole (ZETHUS-208SS), and bracket (ZETHUS-208UB). It comes with black powder-coated finish and is housed in a plywood enclosure, together with rugged construction and heavy-duty perforated metal grille, it holds up touring applications.

  • STELLAR SOUND AND MASSIVE POWER: A lightweight and compact line array speaker delivers superior sound quality with two 8” woofers, one 1.75” titanium compression driver and 350W RMS, 700W peak (16-Ohm) extraordinary power handling capability
  • EASY INTEGRATION: When combined with ZETHUS-115S subwoofer (available separately), this system can deliver a tight and punchy low-end bass at earth shaking volume
  • FLEXIBLE MOUNTING: It has multiple flying points and provides flexible mounting/suspension options; additional mounting accessories including flying frame (ZETHUS-208FF), mounting pole (ZETHUS-208SS), and bracket (ZETHUS-208UB) available to purchase for versatile configurations
  • STURDY CONSTRUCTION: Housed in a plywood enclosure, it holds up to mobile applications with heavy-duty metal grille and rugged construction
  • VERSATILE APPLICATION: Ideal for small to medium-sized venues including clubs, bars, restaurants, churches and schools and more

Specifications

Model ZETHUS-208BV2 (black), ZETHUS-208WV2 (white)
Frequency Range 60 Hz - 20 kHz
Frequency Response 55 Hz ~ 20 kHz
Sensitivity 101 dB (Passive)
SPL Max 128 dB
Dispersion 120º x 15º (H x V)
Configuration Compact dual 8" passive full-range line array loudspeaker
Transducer LF: 2 x 8", HF: 1 x 1.75" diaphragm
Voice Coil 2"
Magnet 30 oz
Impedance 16Ω Nominal
Power Handling 350 RMS / 700W Peak
Connectors 2 x 4 Pin Speakon
Cabinet Construction High-grade 100% birch plywood
Flying/Mounting Bracket Model# ZETHUS-208FF or ZETHUS-115SFF, compact line array hardware
Finish Texture coating
Grill & Rigging Component Steel with anti-corrosion coat
Crossover Parts# XO-Z208
High Frequency Driver Parts# STHF-4403T
Low Frequency Woofer Parts# STLF-08Z


Dimension & Weight

Product Width (in.) 26.4" Package Width (in.) 29.3"
Product Height (in.) 9.7" Package Height (in.) 13.1"
Product Depth (in.) 13.5" Package Depth (in.) 16.5"
Product Weight (lb.) 42.0 lbs Package Weight (lb.) 45.8 lbs


Warranty/Certifications

Manufacturer Warranty 1 Year



▶ ZETHUS Series Brochure
