The Sound Town ZETHUS Series ZETHUS-110PWX4 line array speaker system includes:
- (4) ZETHUS-110PW 10” Powered Two-Way Line Array Loudspeaker System
- (1) ZETHUS-115SFF Mounting Frame.

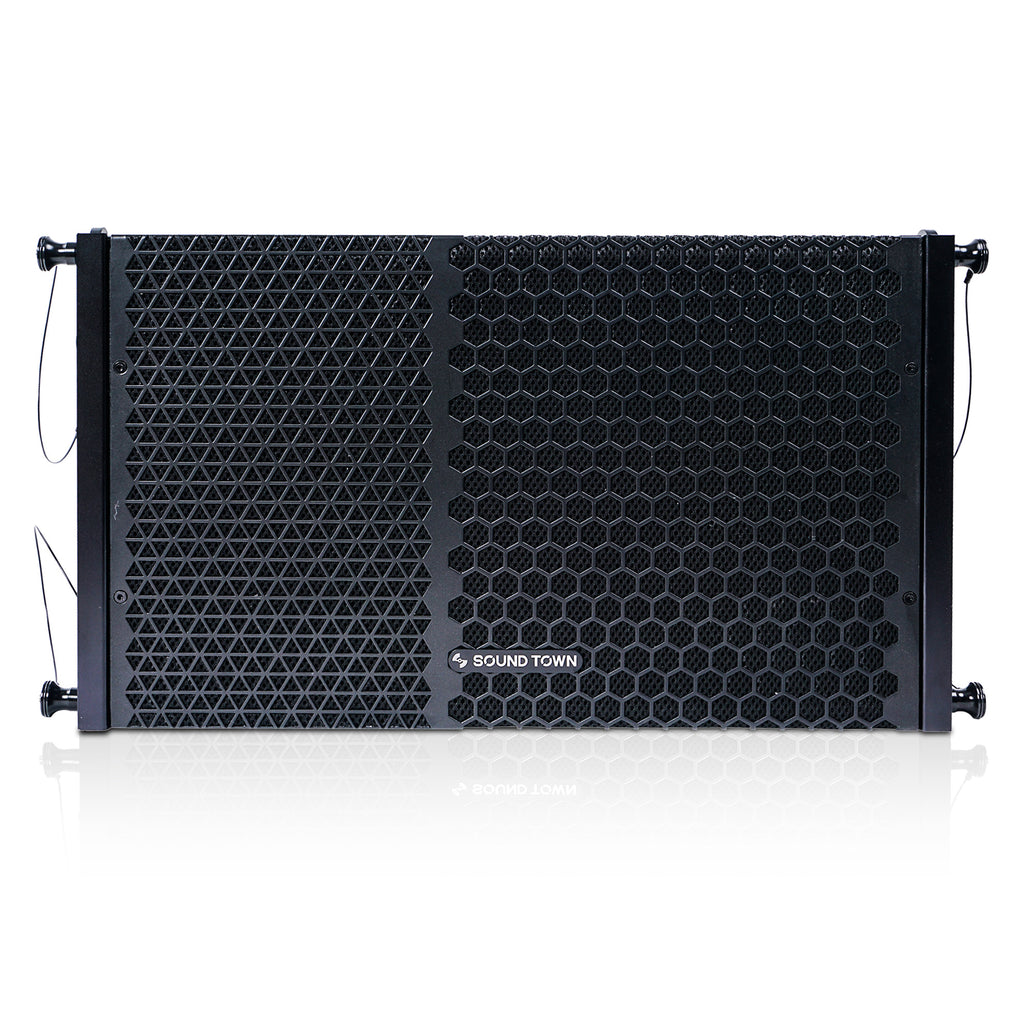

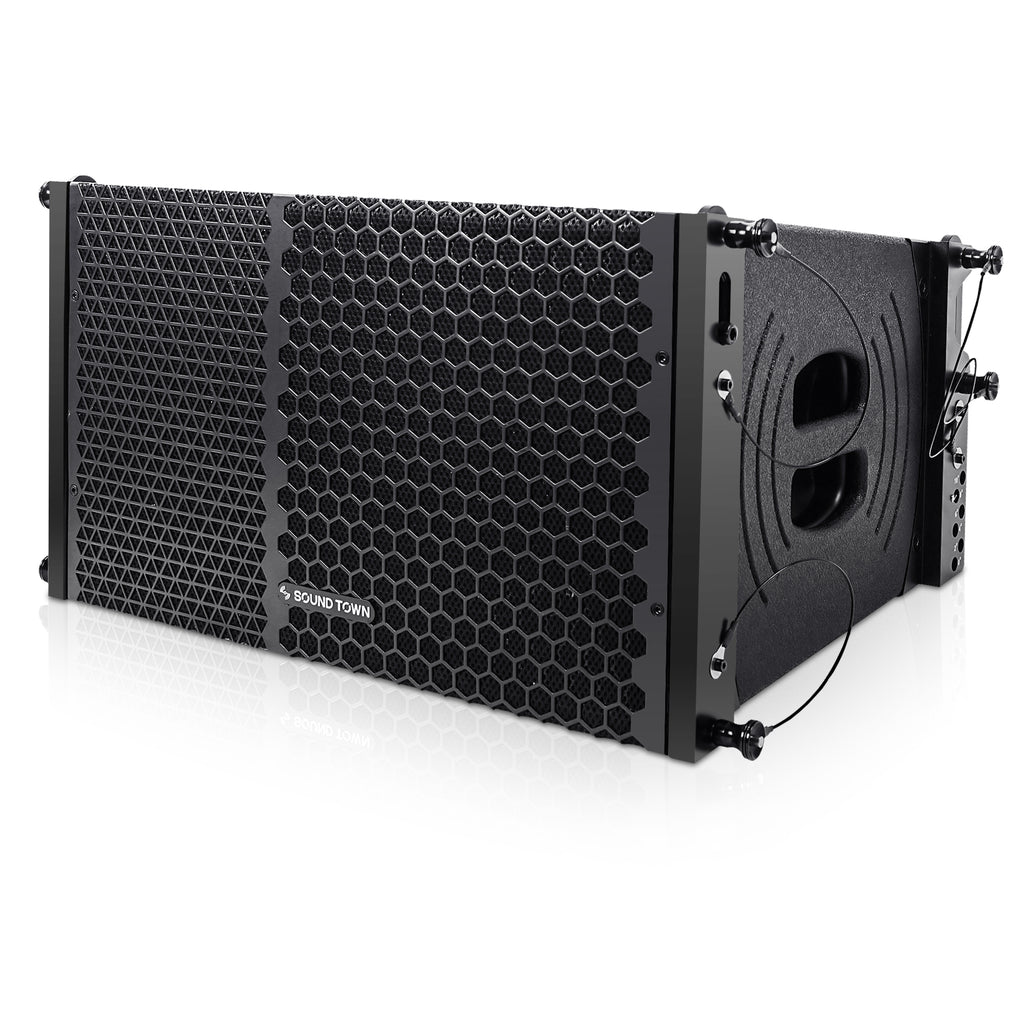

Unleash the power of exceptional sound with the ZETHUS-110PW powered line array speaker system, a harmonious fusion of cutting-edge technology and stunning design. This premium package includes four ZETHUS-110PW speakers and one ZETHUS-115SFF mounting frame, bringing unmatched audio brilliance and versatility to your world.
Boasting a lightweight and compact design, this speaker harnesses the might of a 10" woofer and a 2" titanium compression driver, resulting in extraordinary sonic precision. A formidable class-D amplifier generates 300W continuous and an astounding 600W peak power at 8Ω, filling your space with captivating soundscapes. Equipped with an onboard DSP, effortlessly optimize your system for pristine audio. Navigate the settings with ease through the single knob press-and-scroll operation, all displayed on the intuitive LCD screen.
Combine ZETHUS-110PW line array speakers effortlessly, secured by integrated mounting points and heavy-duty rigging hardware. Elevate your auditory dreams further with the ZETHUS-115SFF flying frame, enabling seamless full-range array installations. For an immersive bass experience, pair with the ZETHUS-115SPW subwoofer (available separately), delivering resounding low-end impact. (Please note: Subwoofer mounting requires the ZETHUS-110WAD fly bar and ZETHUS-115SFF flying frame, sold separately.)
- ZETHUS-110PWX4: This speaker system includes 4 x ZETHUS-110PW powered line array speakers and 1 x ZETHUS-115SFF mounting frame.
- STELLAR SOUND AND MASSIVE POWER: Elevate your audio with ZETHUS-110PW powered line array speakers. A 10" woofer and 2" titanium compression driver delivers 300W continuous power (600W peak) with its class-D amp at 8Ω. Built-in onboard DSP provides precise system optimization.
- DURABLE CONSTRUCTION: The ZETHUS-110PW line array speaker is housed in a rugged plywood enclosure with a heavy-duty metal grille for added durability and designed to withstand touring and mobile applications.
- EASY INTEGRATION AND FLEXIBLE MOUNTING: ZETHUS-110PW speakers can be quickly stacked and secured with the attached mounting points and heavy-duty metal rigging hardware on the rear panels. Easily fly your line array with the included ZETHUS-115SFF flying frame. Need a subwoofer? Combine it with the ZETHUS-115SPW and ZETHUS-110WAD fly bar (sold separately).
- VERSATILE APPLICATIONS: Designed for small to medium-sized venues such as clubs, theaters, bars, restaurants, churches, and schools, the Sound Town ZETHUS line array speakers excel in a variety of audio setups and environments.
Specifications
Model | ZETHUS-110PW (black), ZETHUS-110WPW (white) |
Active / Passive | Active |
Frequency Range | 50 Hz -19 kHz |
Frequency Response | 55 Hz -19 kHz |
Sensitivity | 101 dB (Passive) |
SPL Max | 128 dB |
Dispersion | 90º x 20º (H x V) |
Configuration | 10" active full-range line array loudspeaker |
Transducer | LF: 1 x 10" woofer HF: 1 x 2" diaphragm |
Voice Coil | 2.5" |
Magnet | 50 oz |
Impedance | 8Ω |
Power Handling | 300W Continuous / 600W Peak |
Cabinet Construction | High-grade 100% birch plywood |
Mounting | Integrated line array hardware |
Finish | Texture coating |
Grill & Rigging Component | Steel with anti-corrosion coat |
Amplifier | Class-D amplifier w/ DSP |
Input | 1 x 1/4" & XLR combo |
Output | 1 x XLR mixed out |
Control | DSP:LPF/Bass Boost/3-band EQ/MODE select |
Indicator | Power, limit |
Voltage | Neutrik PowerCON in & out 100V-240V (50-60 Hz) |
Plate Amp Parts# | STPA-760LA |
Dimension & Weight
Model |
ZETHUS-110PW |
ZETHUS-115SFF |
Product Width (in.) | 20.5" | 27.2" |
Product Height (in.) | 11.8" | 5.4" |
Product Depth (in.) | 15.2" | 25.6" |
Product Weight (lb.) | 45.0 lbs | 49.1 lbs |
Package Width (in.) | 23.0" | 28.5" |
Package Height (in.) | 15.0" | 6.3" |
Package Depth (in.) | 18.4" | 27.0" |
Package Weight (lb.) | 50.7 lbs | 51.3 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
▶ ZETHUS-110PW User Manual (V2), purchased after 12.12.24
▶ ZETHUS Series Brochure
