Refurbished Condition: 100% testing and function is in good condition while outside box worn out and small cosmetic dents. cosmetic damages will vary, including but not limited to, damaged or cracked, bent ears, scratches, dents, etc.

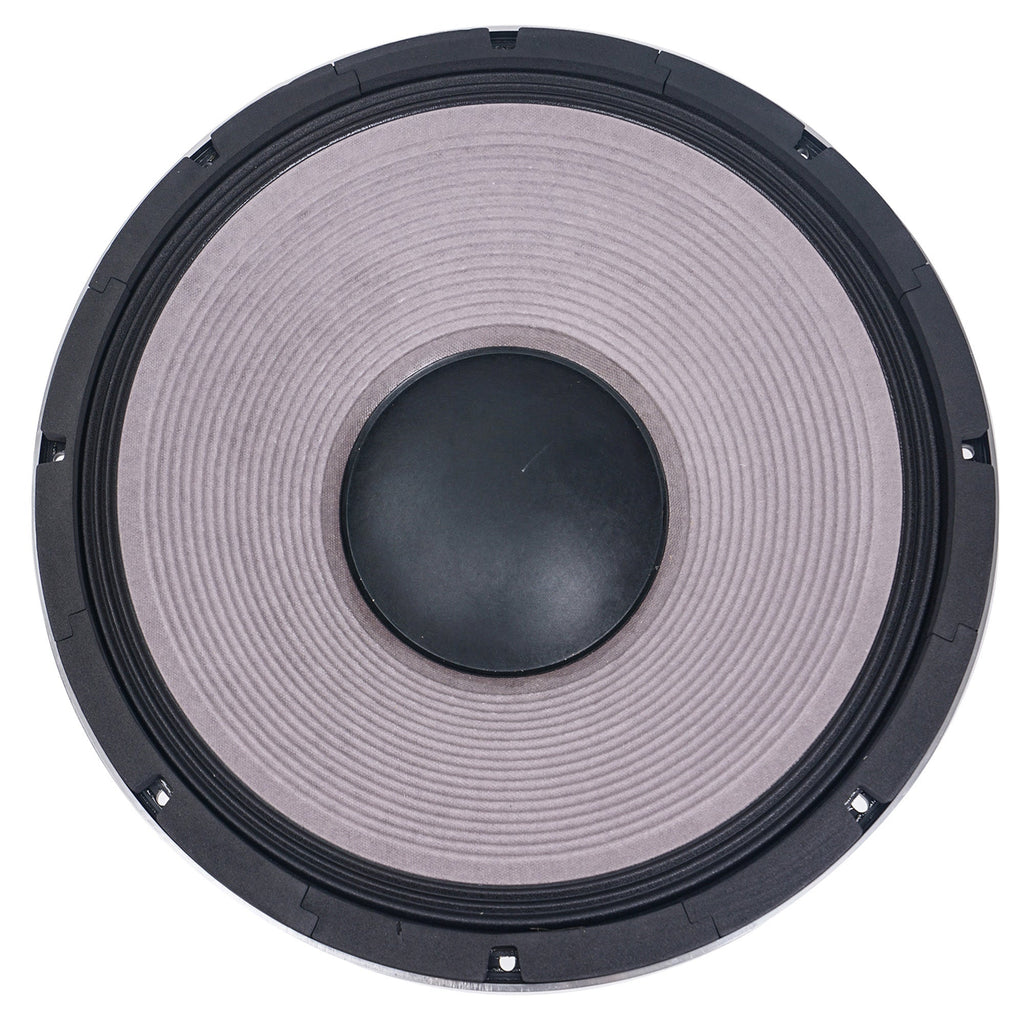

The Sound Town STLF-18200A is an 18” universal replacement driver for PA/DJ woofers. It is compatible with Sound Town PA speakers (subwoofer) and compatible with other brand speakers with an 18” subwoofer. The subwoofer comes with an 8-ohm impedance and has a frequency range of 35-2K Hz with a sensitivity of 102dB. It has a built-in cast aluminum chassis and has a paper cone with cloth edge. With 800W RMS power handling capability, the STLF-18200A delivers a massive and deep bass and makes a great replacement woofer for your 18-inch PA speakers or subwoofer cabinets.

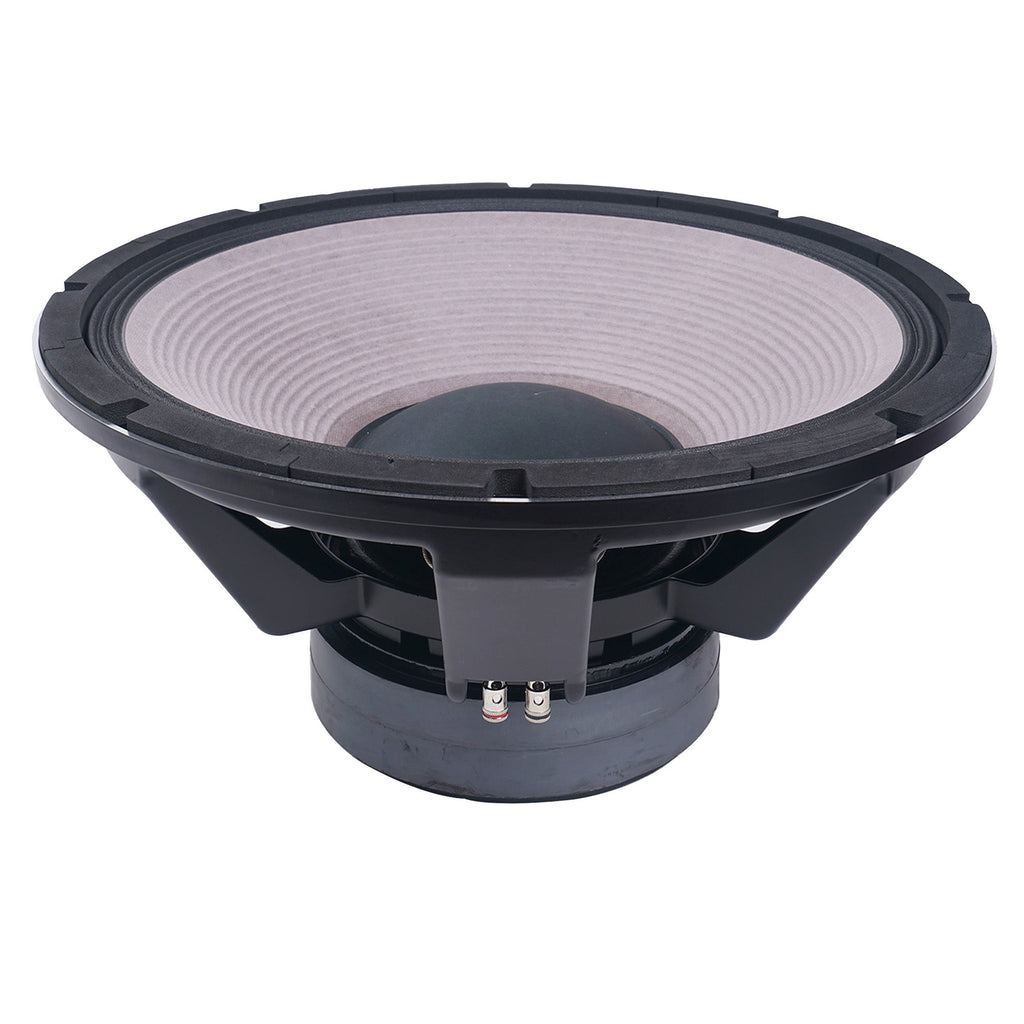

- 18” cast aluminum frame

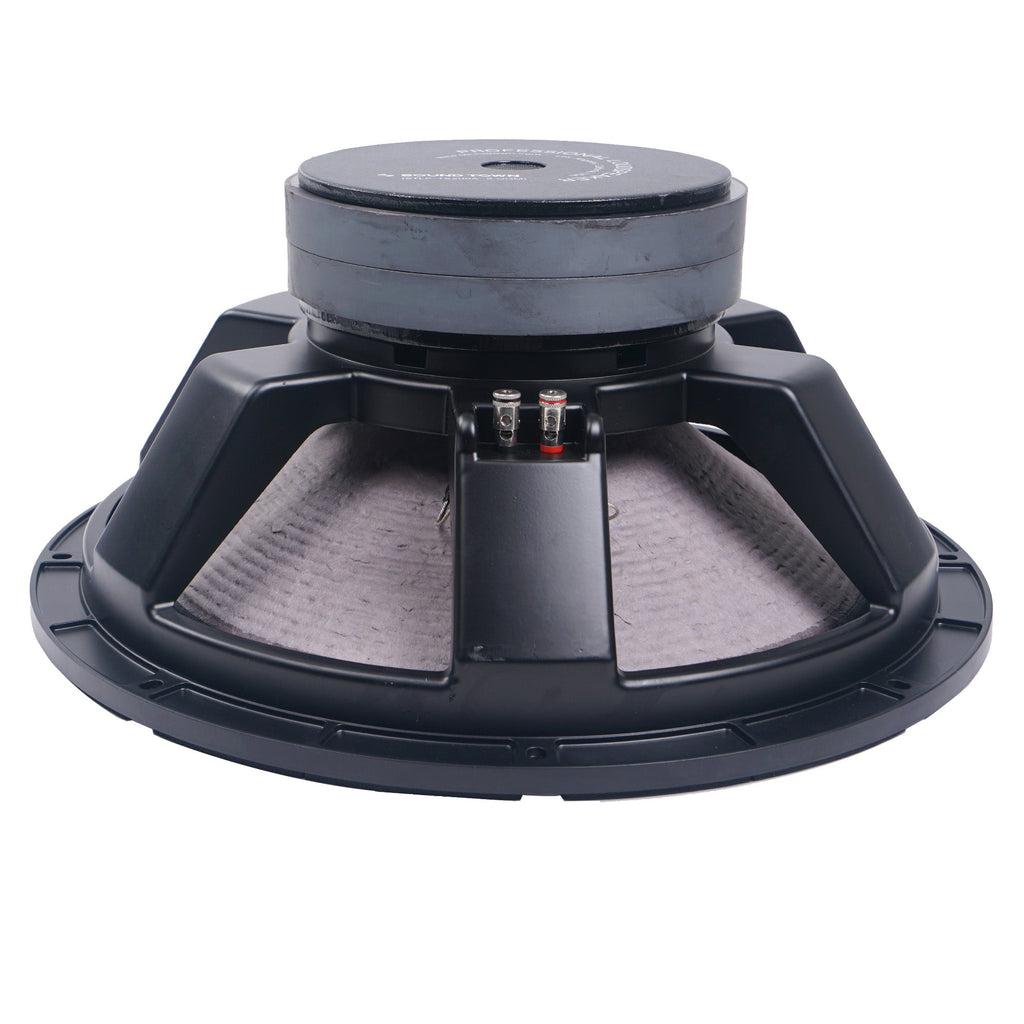

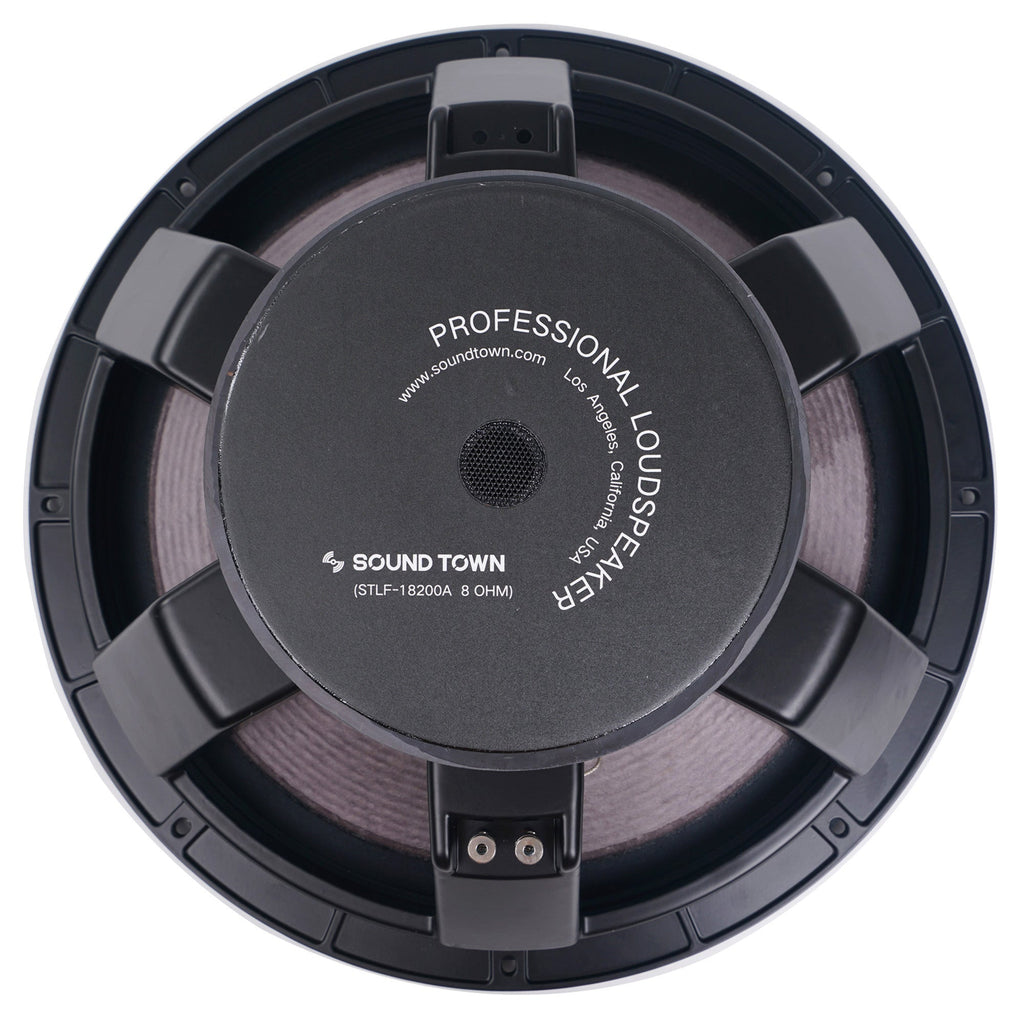

- 4” voice coil and 2X100-oz dual magnet produce superb sound
- 800W RMS power handling capability
Details
| Model | STLF-18200A | Resonance | 35Hz |
| Nominal Basket Diameter | 18" | Frequency Response |
35Hz-2KHz |

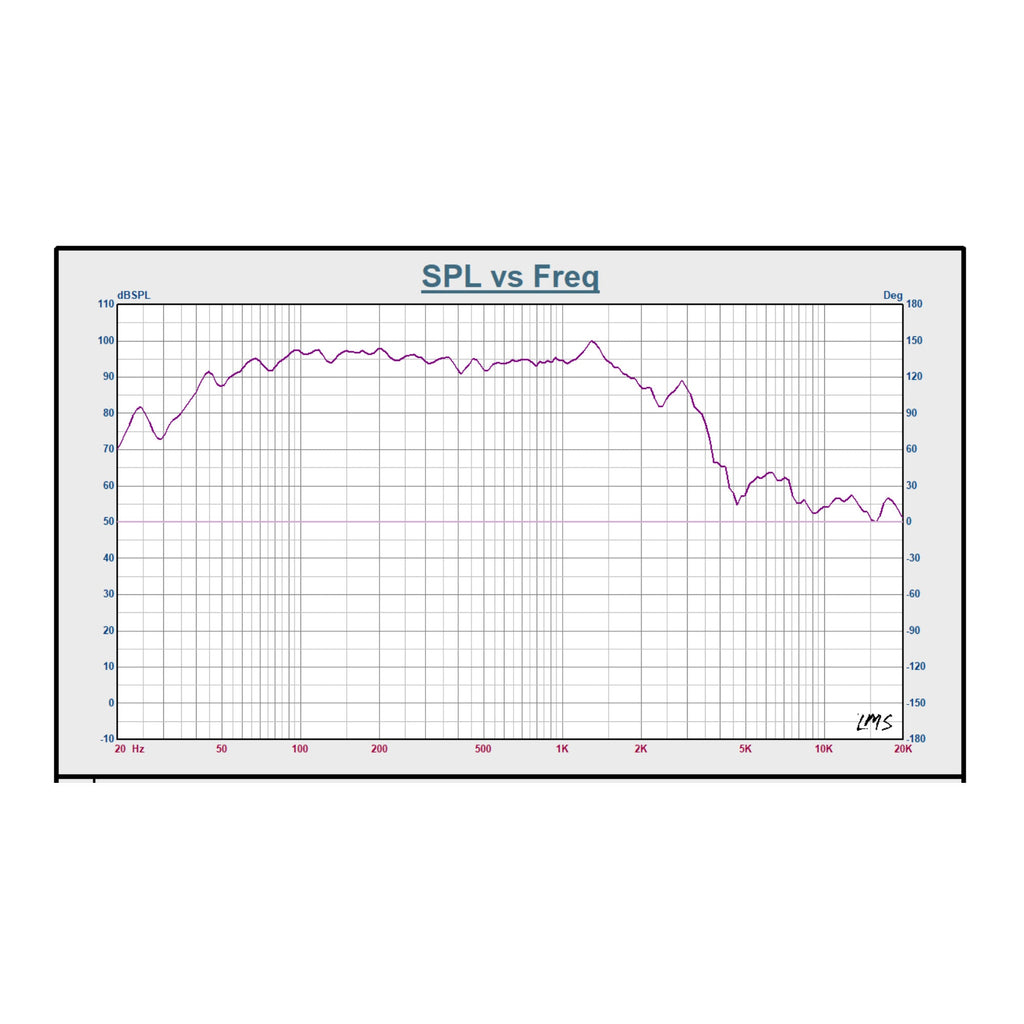

| Nominal Impedance | 8Ω | Sensitivity | 98±3dB |
| Power Rating |
800W RMS | Magnet Weight | 200 OZ |
| Peak Power | 1600W Peak | Voice Coil Diameter | 4.0" VC |

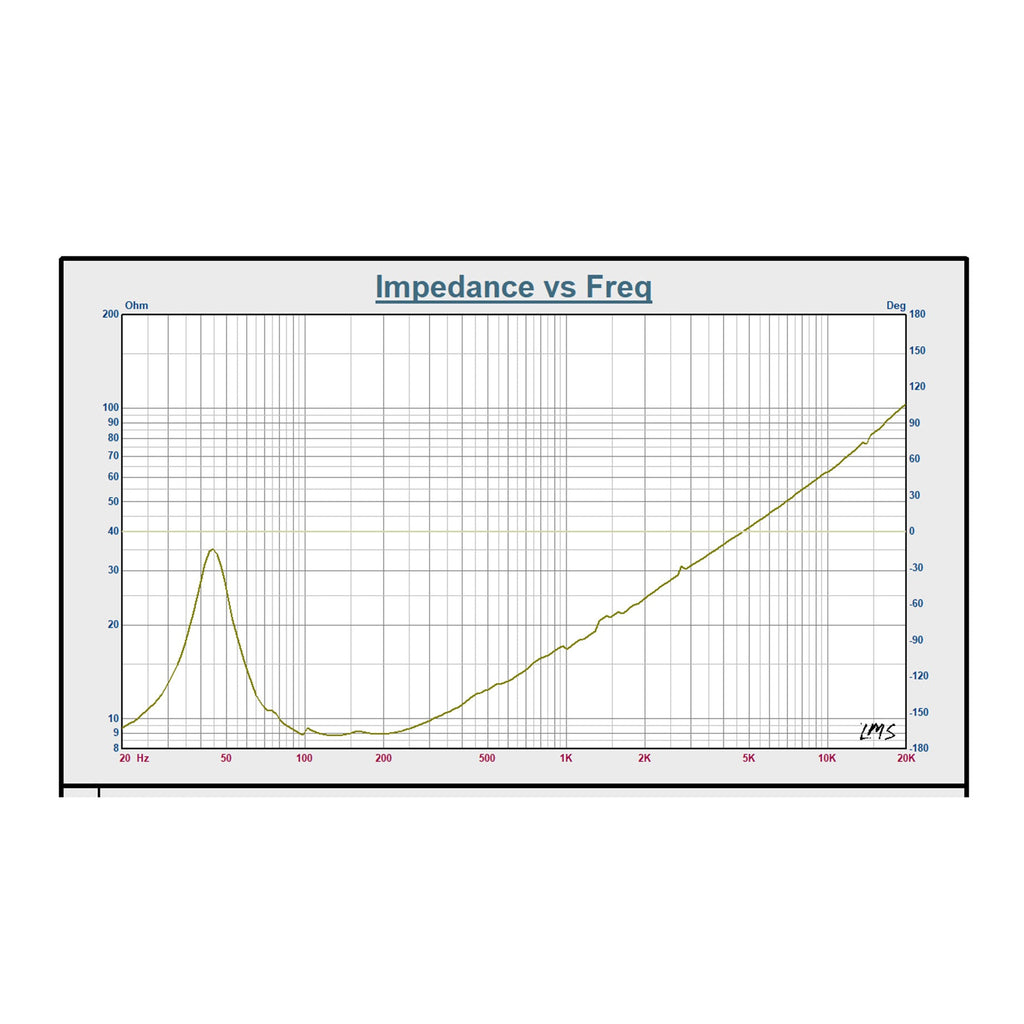

Thiele & Small Parameters
| Resonant Frequency (fs) | 35Hz | Compliance Equivalent Volume (Vas) | 157.66 Ltr |
| DC Resistance (Re) | 7.7Ω | Mechanical Compliance of Suspension (Cms) | 63.0 mm/N |
| Mechanical Q (Qms) | 2.293 | BL Product (BL) | 21.2 Tm |
| Electromagnetic Q (Qes) | 1.108 | Diaphragm Mass Inc. Airload (MMs) | 173.5 g |
| Total Q (Qts) | 0.747 | Surface Area of Cone (Sd) | 1327 cm2 |

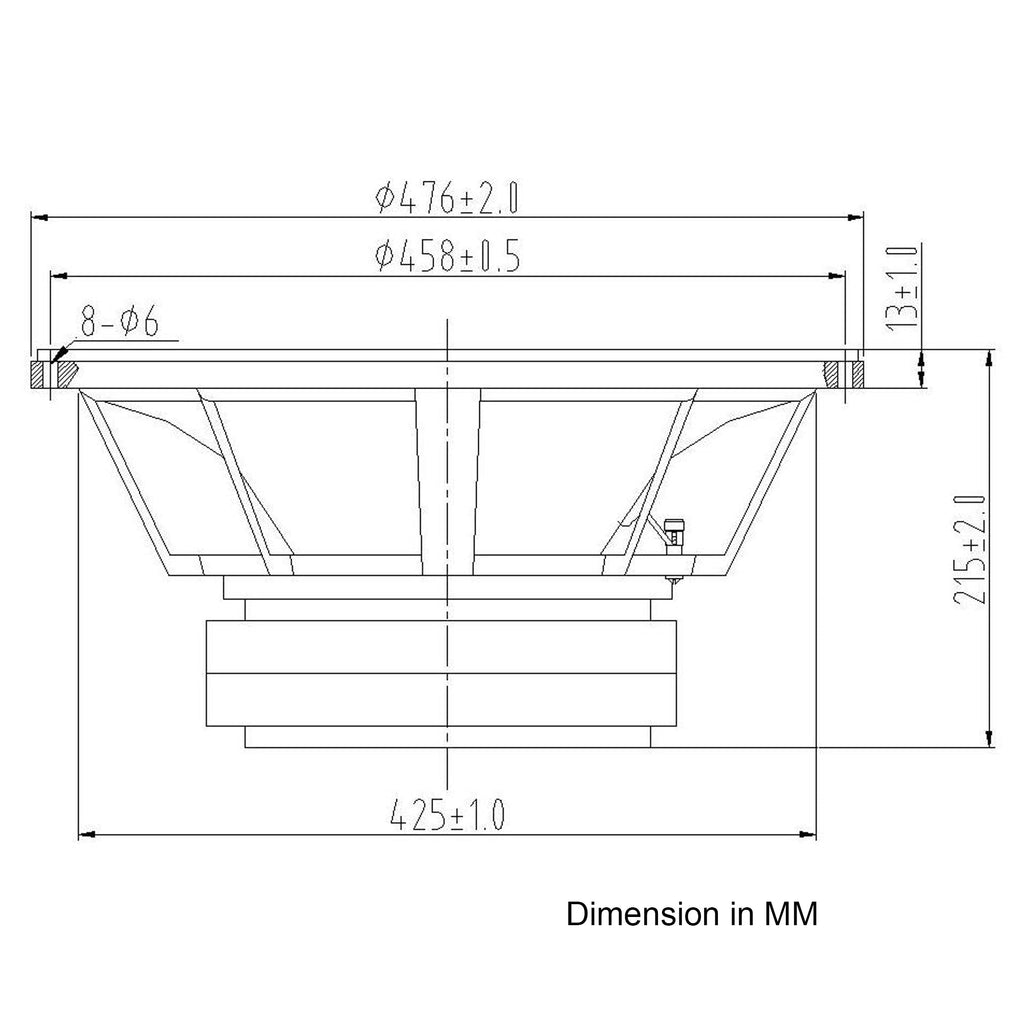

Mounting Information
| Overall Diameter | 18.7", 476 mm | Mounting Holes Diameter | 8-0.24", 8-6 mm |
| Depth | 8.46", 215 mm | Net Weight | 35.4 lbs, 16.1 kg |
| Baffle Hole Diameter | 13.6", 345.5 mm | Shipping Weight | 38.7 lbs, 17.6 kg |
| Installation Position Diameter | 18.0", 458 mm |
Materials of Construction
| Coil Construction | Round Copper | Cone Composition | Paper Cone |
| Coil Former | Aluminum | Cone Edge Composition | Cloth Edge |
| Magnet Composition | Ferrite | Dust Cap Composition | Paper Cap |
| Basket Materials | Die Cast Aluminum |
Dimension & Weight
| Product Width (in.) | ∅18.7" | Package Width (in.) | 20.9" |
| Product Height (in.) | --" | Package Height (in.) | 11.0" |
| Product Depth (in.) | 8.6" | Package Depth (in.) | 20.9" |
| Product Weight (lb.) | 35.4 lbs | Package Weight (lb.) | 38.7 lbs |
Warranty/Certifications
| Manufacturer Warranty | 180 Days (6 Months) |
