$1,029.99

The Sound Town PS-18SWK12WPW PA System Line Array Speake Set Includes:

  • (1) CARME-18SWPW  CARME Series 1600W 18” Powered Subwoofer with DSP, Birch Plywood, White
  • (1) CARPO-K12WPW  Powered Column Line Array Speaker w/ 6x5" Woofers, Dual Compression Drivers, Class-D W/DSP, TWS, Plywood, White

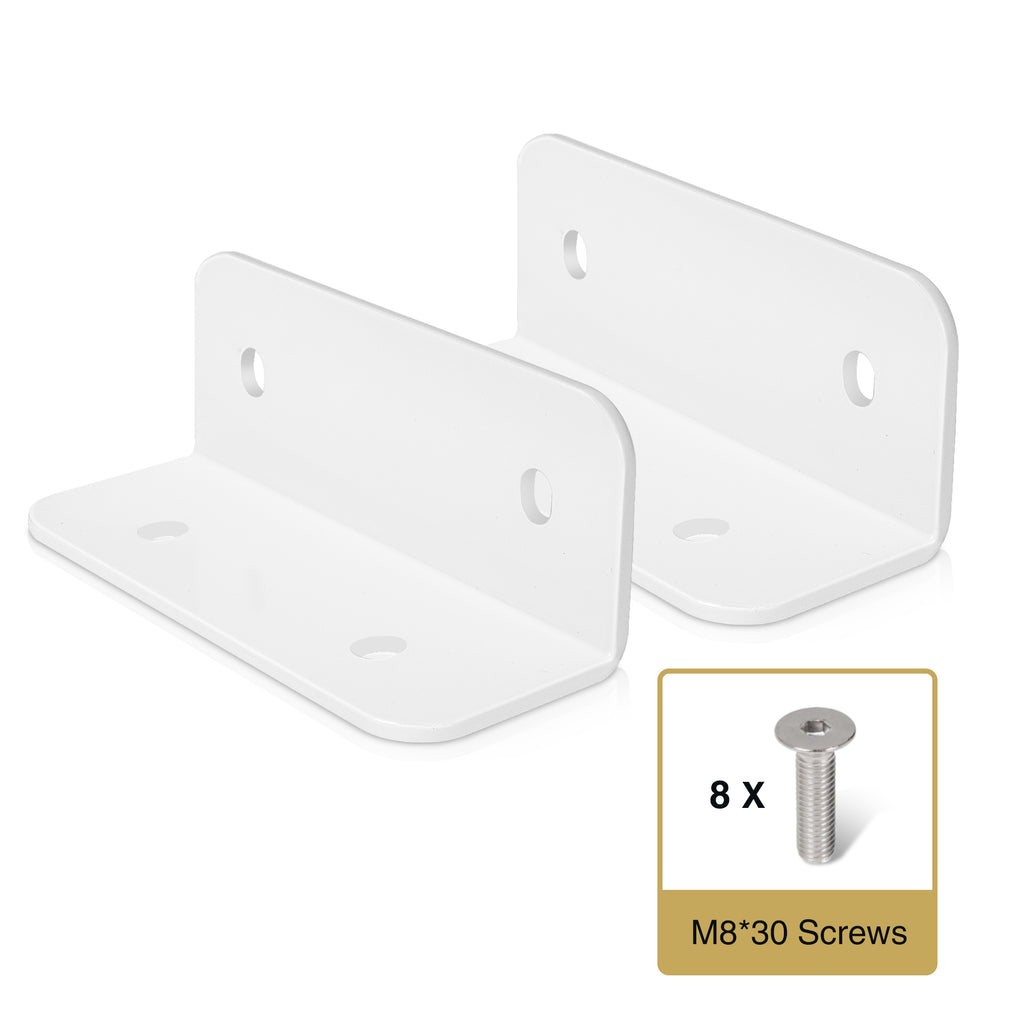

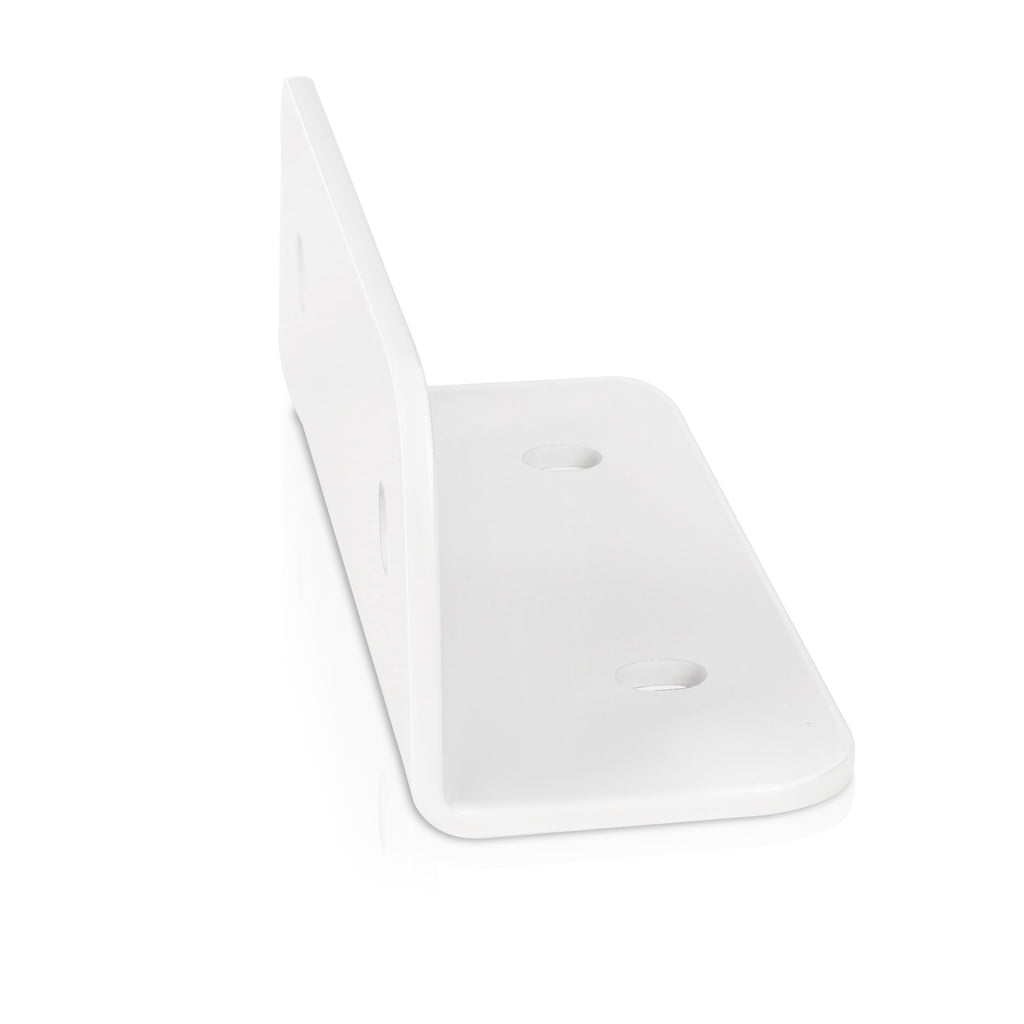

  • (1) CARPO-WLB-2PRS Mounting Bracket for CARME Subwoofer + CARPO Column Speaker Set, White

Introducing the Sound Town PS-18SWK12WPW compact powered line array set, a strong and reliable sound system that takes your live music experience to the next level. This set comes with the CARME-18SWPW 18-inch powered subwoofer and the CARPO-K12WPW powered column line array speaker. You can easily set them up on the ground using the CARPO-WLB-2PRS mounting brackets. And if you want to move them around easily, you can add the optional ZSCB-VX18S caster board.

The CARPO-K12WPW column speaker has six 5-inch woofers and two 3/4-inch compression drivers with linear horns that make the high sounds really clear and detailed. It also has a strong built-in class-D amplifier that gives you a lot of power, with 650W continuous and 1300W peak power output. Plus, it has digital signal processing (DSP) built in, which lets you choose from 4 different sound modes and manual adjustments for 3-band EQ, bass boost, and delay to get your sound just right. And you can connect to it wirelessly using Bluetooth for easy setup with your devices.

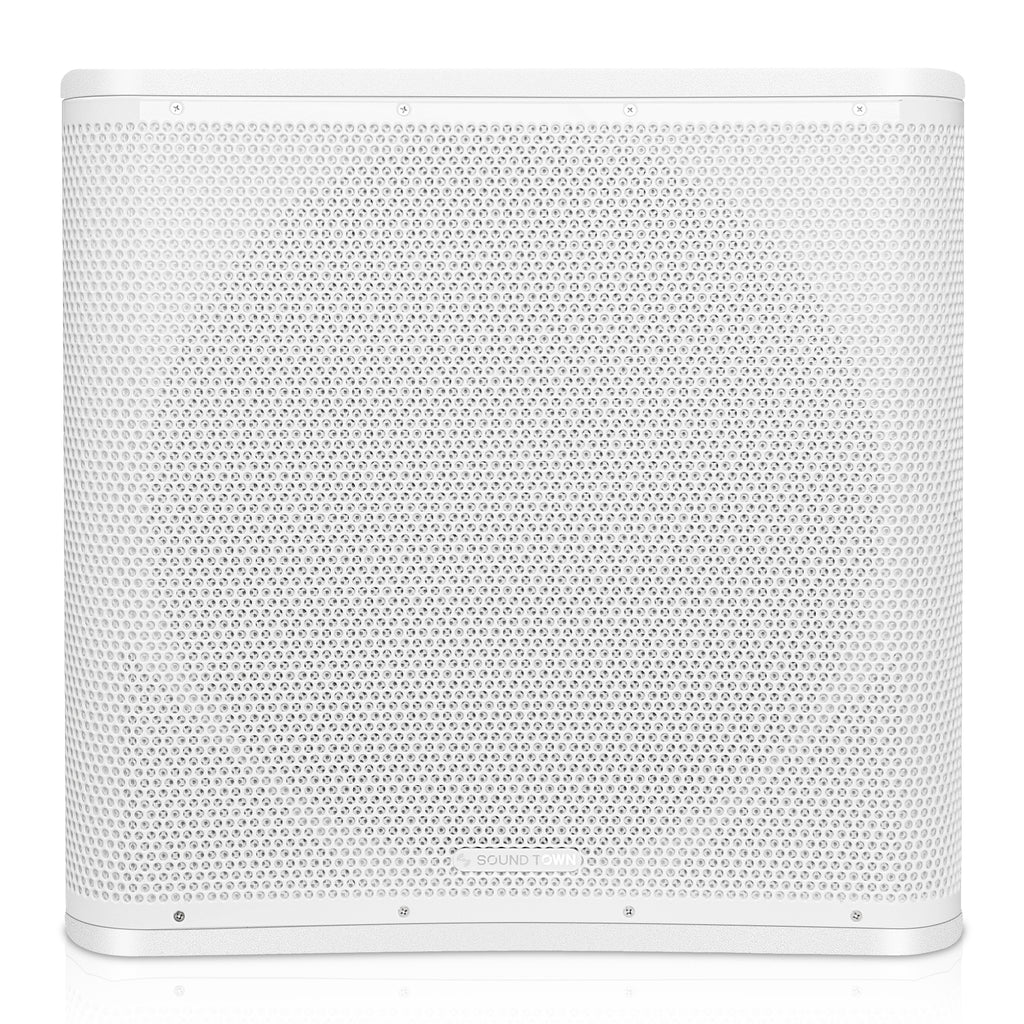

The CARME-18SWPW features a robust die-cast aluminum frame and a large 145 oz. magnet to create a powerful bass foundation that enhances the overall sound quality. The whole system with a frequency response ranging from 35Hz to 20kHz, ensures a wide range of sound reproduction. Designed for durability, the PS-18SWK12WPW line array set is made from strong birch plywood and has a tough metal grille to protect it. It's made with the same care and quality as equipment used on professional tours, it's reliable even when you turn up the volume. It gives you clear and rich sound, whether you're in a club, a church, a school auditorium, or anywhere else. Whether you're hosting a live concert, a business event, or a busy nightclub, the Sound Town PS-18SWK12WPW has you covered with versatile and powerful sound.

  • SOUND TOWN PS-18SWK12WPW POWERED LINE ARRAY SET: The Sound Town PS-18SWK12WPW powered line array set includes (1) CARME-18SWPW 18" powered subwoofer, (1) CARPO-K12WPW powered column line array speaker and (1) CARPO-WLB-2PRS mounting bracket.

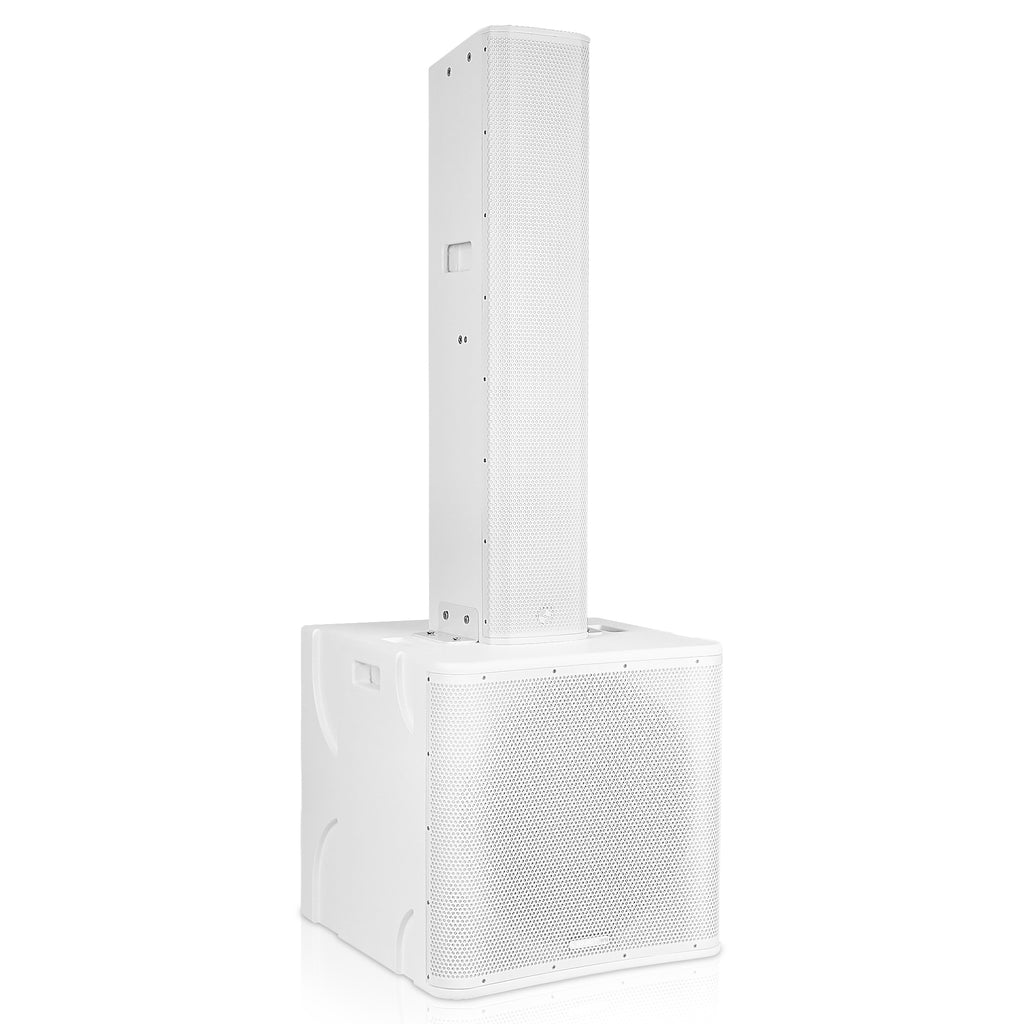

  • GROUND-STACK SETUP: You can easily put the CARPO-K12WPW column speaker on top of the CARME-18SWPW subwoofer using the CARPO-WLB-2PRS brackets. This setup is perfect for lots of places like concerts, clubs, bars, restaurants, churches, and school auditoriums. It gives you great sound that fills the space well. And if you add the optional ZSCB-VX18S caster board, moving it around is really easy too!
  • CARPO SERIES CARPO-K12WPW ACTIVE COLUMN SPEAKER: The CARPO-K12WPW column speaker has six 5" woofers and two 3/4" compression drivers with linear horns. It comes with a built-in amplifier that can give you 650W continuous and 1300W peak power. Plus, it has digital signal processing (DSP) built in, which lets you choose from 4 different sound modes and manually adjust things like the 3-band EQ, bass boost, and delay to get your sound just right. And you can connect to it wirelessly using Bluetooth for easy setup with your devices.

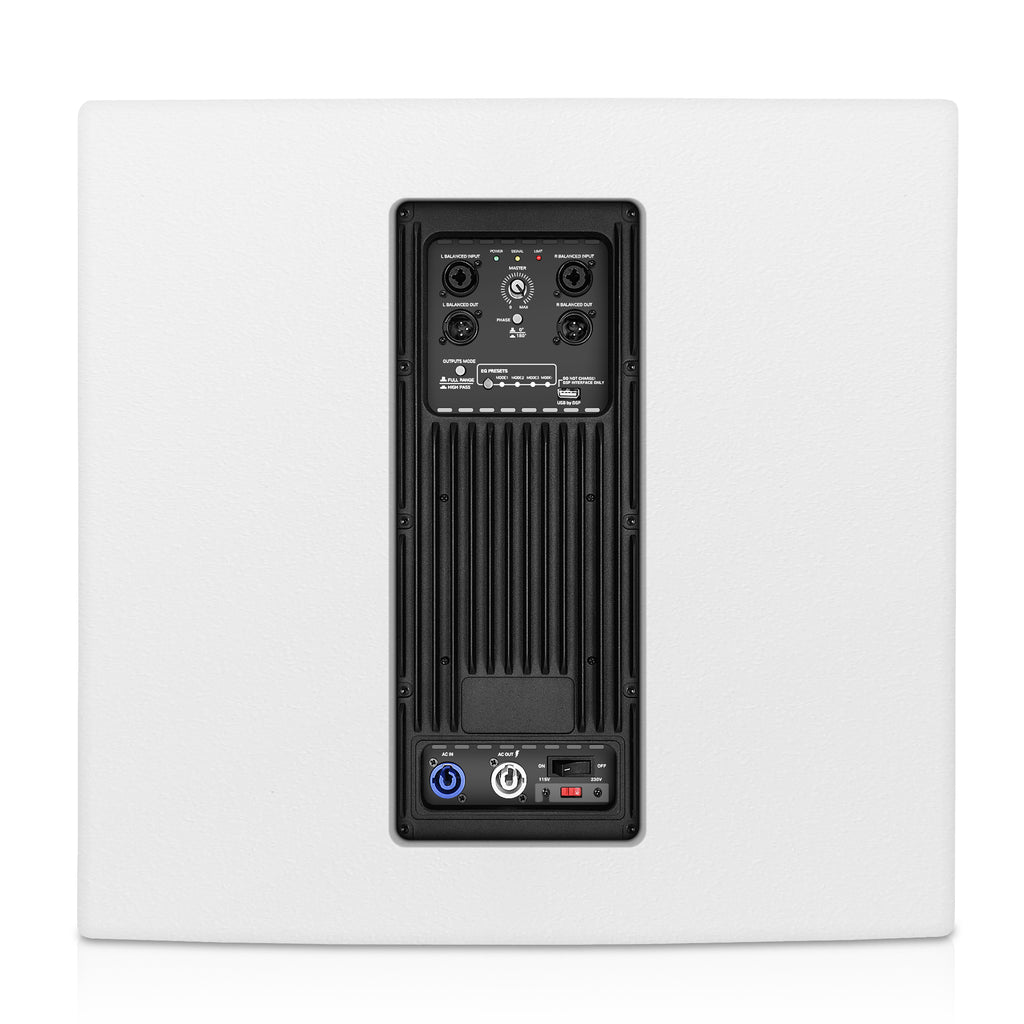

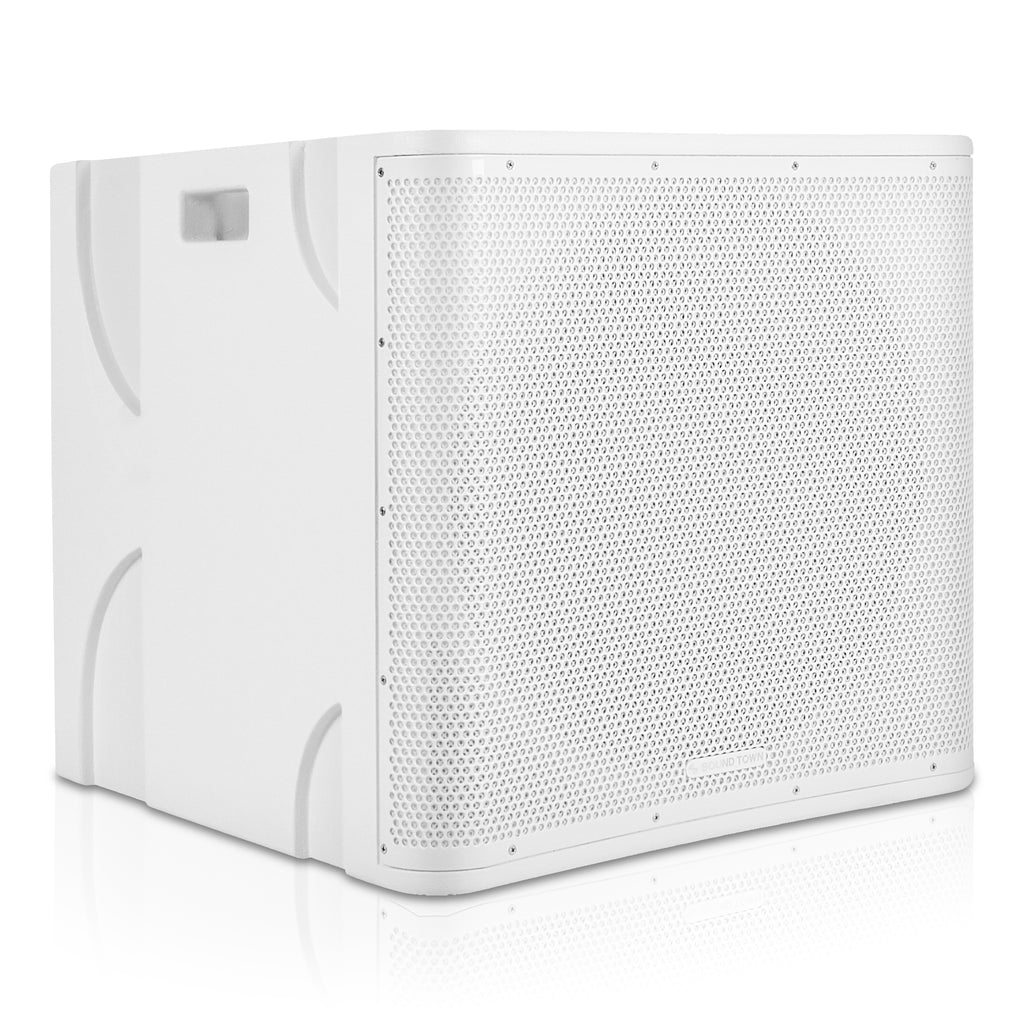

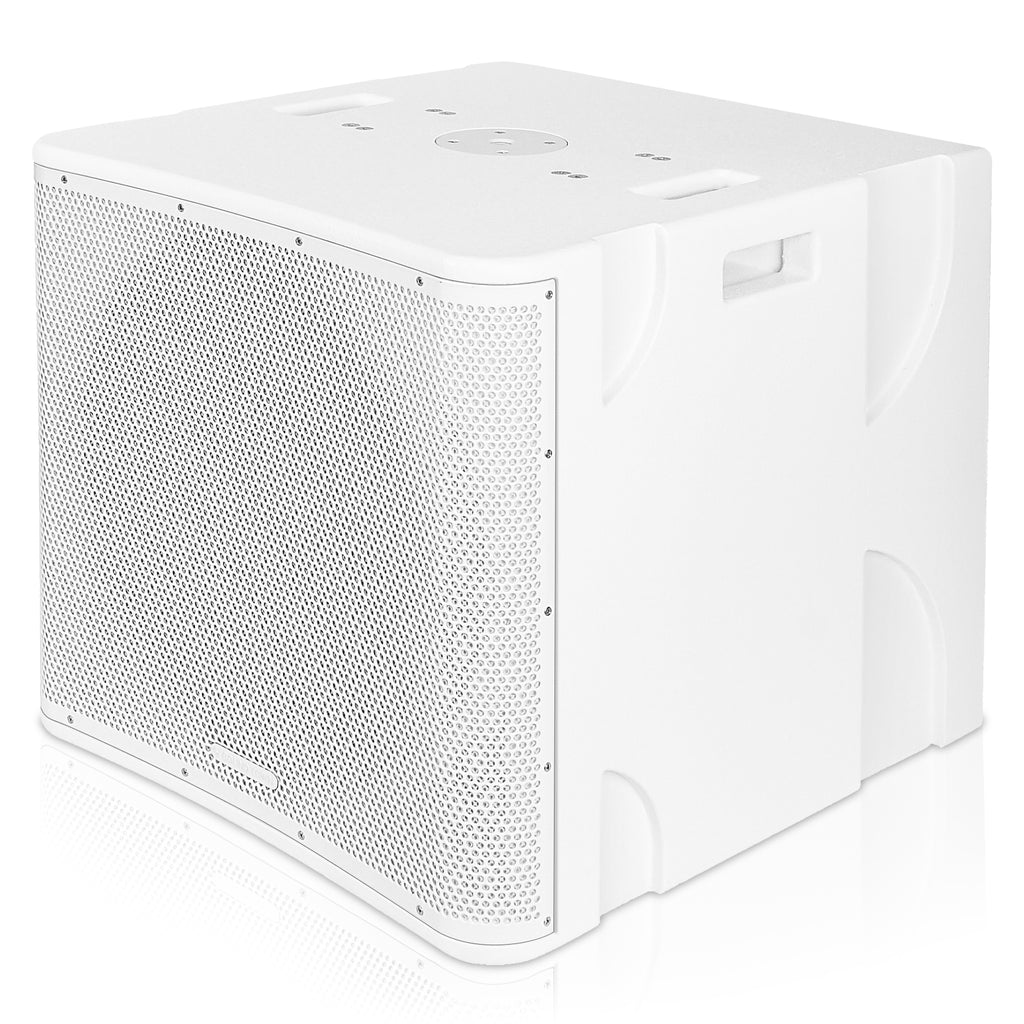

  • CARME SERIES CARME-18SWPW ACTIVE SUBWOOFER: The CARME-18SWPW subwoofer has a powerful 1600W class-D amplifier that can give you 800W continuous and 1600W peak output, so you can feel the bass really well. It has an 18-inch speaker with a strong aluminum frame, 4” voice coil, and a 145 oz. magnet, all working together to make the bass sound really strong. The whole system can produce a wide range of sounds, from really deep bass at 35Hz to high-pitched sounds at 20kHz.
  • TOUR-LEVEL CRAFTSMANSHIP: Constructed from high-quality birch plywood and reinforced with a heavy-duty metal grille, the PS-18SWK12WPW line array set is designed to minimize distortion at high volumes, delivering clean and rich audio performance you can expect from tour-quality craftsmanship.


Specifications

Model CARME-18SPW (black), CARME-18SWPW (white)
CARPO-K12WPW
Active / Passive Passive Active
Frequency Range --
70 Hz - 20 kHz
Frequency Response 35 Hz - 150 Hz
75 Hz - 20 kHz
Sensitivity 100 dB (Passive)
101 dB
SPL Max 128 dB
135 dB
Dispersion --
120 x 20º (H x V)
Configuration 18" active high-power subwoofer
High-Power Wall-Mount Column Line Array Speaker
Transducer LF: 1 x 18"
LF: 6 x 5" Woofer, HF: 2 x 0.75" Compression Drivers
Voice Coil 4" 1.5"
Magnet 100 oz
21 oz
Impedance 8Ω Nominal

Power Handling 800W RMS / 1600W Peak
650W Continuous / 1300W Peak
Enclosure Material High-grade 100% birch plywood High-grade 100% birch plywood
Mounting Hardware Stand mount on top
35mm mounting socket
U-bracket (included)
CARPO-WEP extension bracket (not included)
CARPO-PFF flying frame (not included)
Finish Texture coating (RAL colors available)
Texture coating
Grill & Rigging Component Steel with anti-corrosion coat Steel with anti-corrosion coat

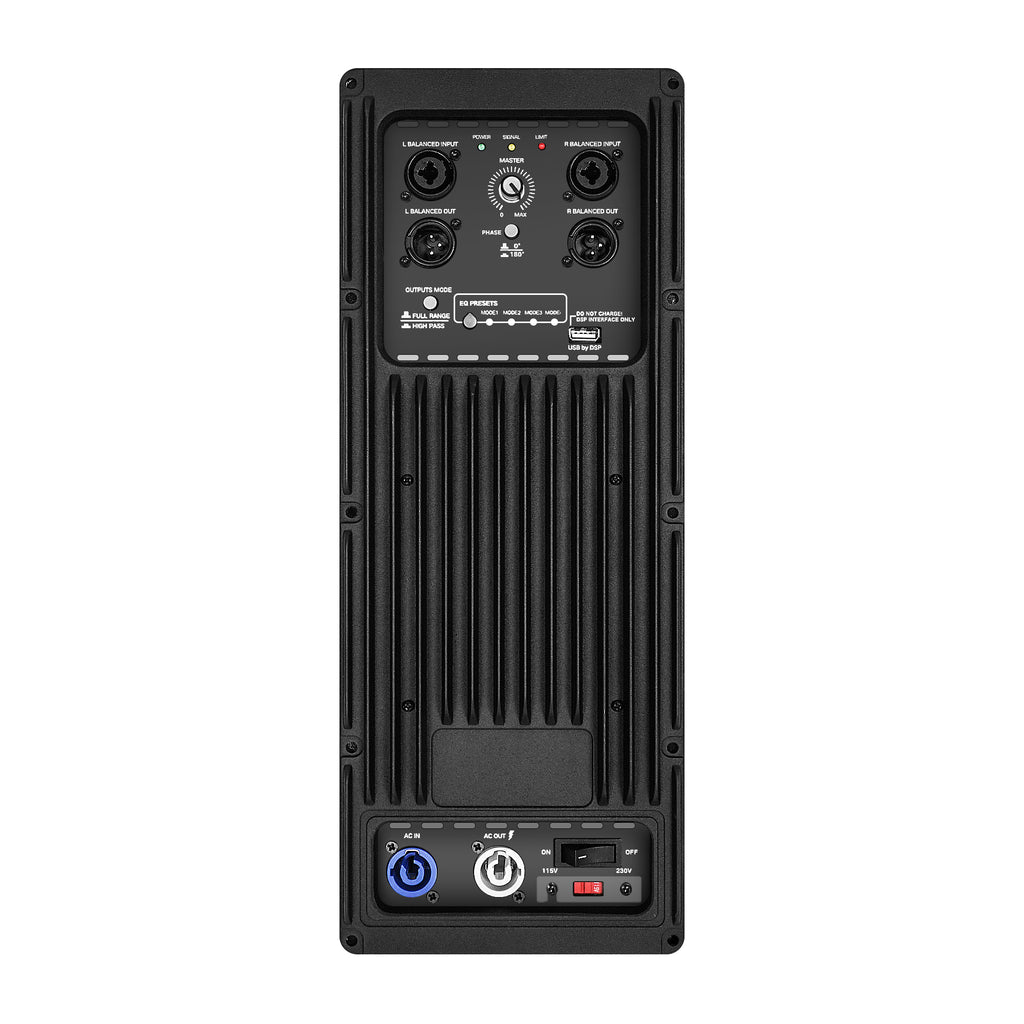

Amplifier Class-D amplifier w/ DSP
STPA-G750DSP-V
Input 2 x 1/4"+XLR combo
2 x 1/4" & XLR combo (MIC/LINE) + 1 X 1/8" (AUX) / Bluetooth
Output 2 x XLR
 XLR (mix/link out)
Signal Processing -- DSP: 3-BAND EQ / BASS BOOST / MODE SELECT / TWS BLUETOOTH
Control Volume, DSP software, MODE selector
--
Indicator Power, limit --
Voltage 100V-240V (50-60 Hz) 100V-240V (50-60 Hz)
Crossover Parts# -- --
High Frequency Driver Parts# -- --
Low Frequency Woofer Parts# -- --


Dimension & Weight

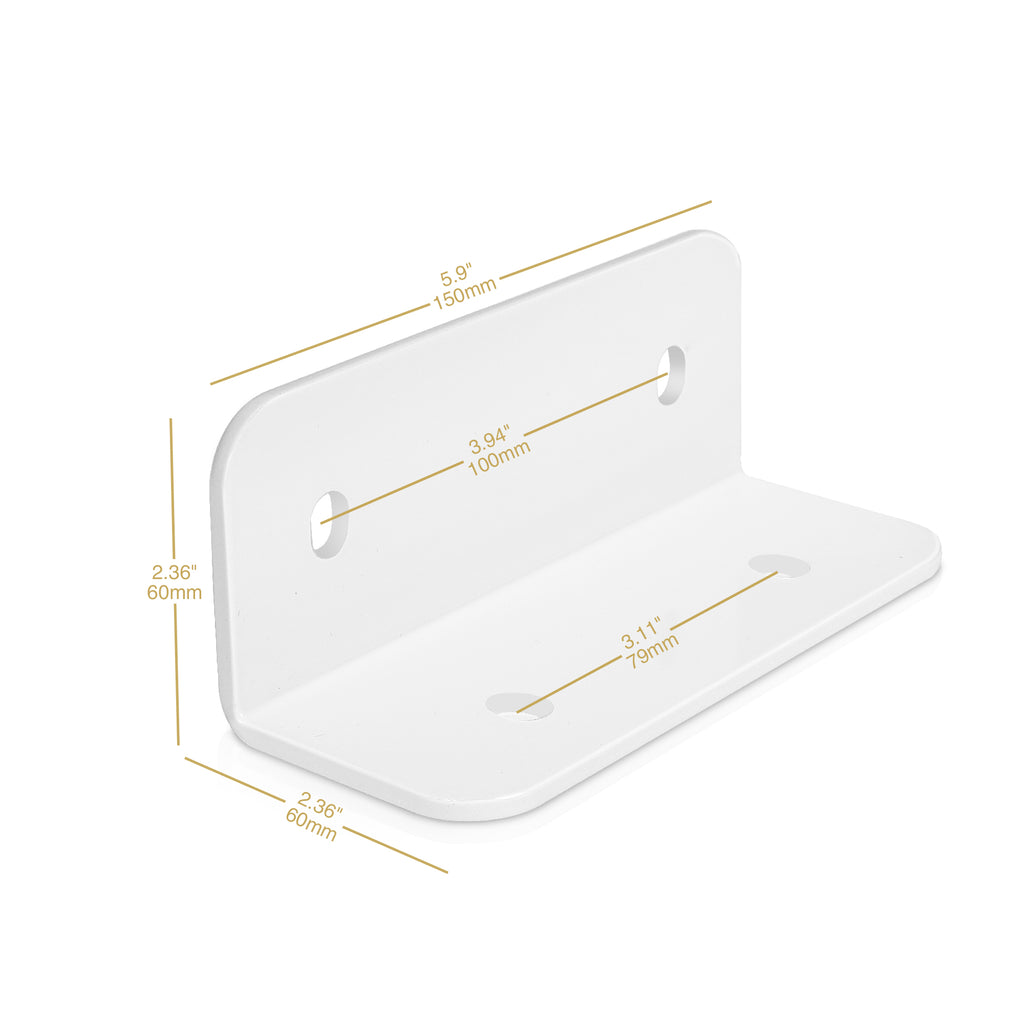

Model CARME-18SPW (black), CARME-18SWPW (white) CARPO-K12WPW CARPO-WLB-2PRS
Product Width (in.) 21.7"     7.9"     5.9"
Product Height (in.) 20.9"     41.7"     2.4"
Product Depth (in.) 23.6"     10.2"     2.4"
Product Weight (lb.) 84.4 lbs     53.1 lb     2.2 lbs
Package Width (in.) 24.6"
10.8"
6.7"
Package Height (in.) 23.6"
47.0"
3.9"
Package Depth (in.) 26.8"
13.2"
3.9"
Package Weight (lb.) 89.0 lbs
58.1 lbs
2.8 lbs



Warranty/Certifications

Manufacturer Warranty 1 Year
