PS-18SK12PW | Powered PA System with One 18" Subwoofer, One High-Power Column Line Array Speaker w/ DSP, TWS Bluetooth, Birch Plywood, Black
- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- DOWNLOADS
- REVIEWS
The Sound Town PS-18SK12PW speaker set includes:
- (1) CARME-18SPW Powered 18" Subwoofer w/ DSP, LPF, Plywood, Black
- (1) CARPO-K12PW Powered Line Array Speaker w/ 6x5" Woofers, Dual Compression Drivers, DSP, TWS, Plywood, Black
- (1) CARPO-LB-2PRS CARPO Series Mounting Bracket for CARME Subwoofer + CARPO Column Speaker Set
Introducing the Sound Town PS-18SK12PW compact powered line array set, a strong and reliable sound system that takes your live music experience to the next level. This set comes with the CARME-18SPW 18-inch powered subwoofer and the CARPO-K12PW powered column line array speaker. You can easily set them up on the ground using the CARPO-LB-2PRS mounting brackets. And if you want to move them around easily, you can add the optional ZSCB-VX18S caster board.
The CARPO-K12PW column speaker has six 5-inch woofers and two 3/4-inch compression drivers with linear horns that make the high sounds really clear and detailed. It also has a strong built-in class-D amplifier that gives you a lot of power, with 650W continuous and 1300W peak power output. Plus, it has digital signal processing (DSP) built in, which lets you choose from 4 different sound modes and manual adjustments for 3-band EQ, bass boost, and delay to get your sound just right. And you can connect to it wirelessly using Bluetooth for easy setup with your devices.
The CARME-18SPW features a robust die-cast aluminum frame and a large 145 oz. magnet to create a powerful bass foundation that enhances the overall sound quality. The whole system with a frequency response ranging from 35Hz to 20kHz, ensures a wide range of sound reproduction.
Designed for durability, the PS-18SK12PW line array set is made from strong birch plywood and has a tough metal grille to protect it. It's made with the same care and quality as equipment used on professional tours, it's reliable even when you turn up the volume. It gives you clear and rich sound, whether you're in a club, a church, a school auditorium, or anywhere else. Whether you're hosting a live concert, a business event, or a busy nightclub, the Sound Town PS-18SK12PW has you covered with versatile and powerful sound.
- SOUND TOWN PS-18SK12PW POWERED LINE ARRAY SET: The Sound Town PS-18SK12PW powered line array set includes (1) CARME-18SPW 18" powered subwoofer, (1) CARPO-K12PW powered column line array speaker and (1) CARPO-LB-2PRS mounting bracket.
- GROUND-STACK SETUP: You can easily put the CARPO-K12PW column speaker on top of the CARME-18SPW subwoofer using the CARPO-LB-2PRS brackets. This setup is perfect for lots of places like concerts, clubs, bars, restaurants, churches, and school auditoriums. It gives you great sound that fills the space well. And if you add the optional ZSCB-VX18S caster board, moving it around is really easy too.
- CARPO SERIES CARPO-K12PW ACTIVE COLUMN SPEAKER: The CARPO-K12PW column speaker has six 5" woofers and two 3/4" compression drivers with linear horns for really powerful sound. It comes with a built-in amplifier that can give you 650W continuous and 1300W peak power. Plus, it has digital signal processing (DSP) built in, which lets you choose from 4 different sound modes and manual adjustments for 3-band EQ, bass boost, and delay to get your sound just right. And you can connect to it wirelessly using Bluetooth for easy setup with your devices.
- CARME SERIES CARME-18SPW ACTIVE SUBWOOFER: The CARME-18SPW subwoofer has a powerful 1600W class-D amplifier that can give you 800W continuous and 1600W peak output, so you can feel the bass really well. It has an 18-inch speaker with a strong aluminum frame, 4” voice coil, and a 145 oz. magnet, all working together to make the bass sound really strong. The whole system can produce a wide range of sounds, from really deep bass at 35Hz to high-pitched sounds at 20kHz.
- TOUR-LEVEL CRAFTSMANSHIP: Constructed from high-quality birch plywood and reinforced with a heavy-duty metal grille, the PS-18SK12PW line array set is designed to minimize distortion at high volumes, delivering clean and rich audio performance you can expect from tour-quality craftsmanship.
Specifications
Model | CARME-18SPW (black) | CARPO-K12PW |
Active / Passive | Active | Active |
Frequency Range | 30 Hz - 150 Hz | 70 Hz - 20 kHz |
Frequency Response | 35 Hz - 150 Hz | 75 Hz - 20 kHz |
Sensitivity | 100 dB | 101 dB |
SPL Max | 128 dB | 135 dB |
Dispersion | -- | 120º x 20º (H x V) |
Configuration | 18" active high-power subwoofer | High-Power Wall-Mount Column Line Array Speaker |
Transducer | LF: 1 x 18", HF: -- |
LF: 6 x 5" Woofer, HF: 2 x 0.75" Compression Drivers |
Voice Coil | 4" | 1.5" |
Magnet | 145 oz | 21 oz |
Impedance | 8Ω | 8Ω |
Power Handling | 800W Continuous / 1600W Peak | 650W Continuous / 1300W Peak |
Enclosure Material | High-grade 100% birch plywood | High-grade 100% birch plywood |
Mounting | M20 stand mount on top |
35mm mounting socket U-bracket (included) CARPO-EP extension bracket (not included) CARPO-PFF flying frame (not included) |
Finish | Texture coating | Texture coating |
Grill & Rigging Component | Steel with anti-corrosion coat | Steel with anti-corrosion coat |
Amplifier | Class-D | Class-D w/ DSP, TWS |
Input | 2 x XLR-1/4" combo |
2 x 1/4" & XLR combo (MIC/LINE) + 1 X 1/8" (AUX) / Bluetooth |
Output | 2 x XLR (thru), 2 x XLR (100 Hz high-pass) |
XLR (mix/link out) |
Signal Processing | DSP: Built-in ADI SigmaDSP28/56 Bit Audio Processor. With DYNAMIC BASS Enhancement and RMS Dynamic Processor, 2nd-order IIR Low Pass Filter. Polarity switch. | DSP: 3-BAND EQ / BASS BOOST / MODE SELECT / TWS BLUETOOTH |
Control | DSP, Phase, Sub Level, LPF |
-- |
Indicator | Signal, Limit, Power |
-- |
Voltage | 100V-240V (50-60 Hz) | 100V-240V (50-60 Hz) |
Plate Amp Parts# | STPAS-G2V2 | STPA-G750DSP-V |
Crossover Parts# | -- | -- |
High Frequency Driver Parts# | -- | -- |
Low Frequency Woofer Parts# | STLF-18AS | -- |

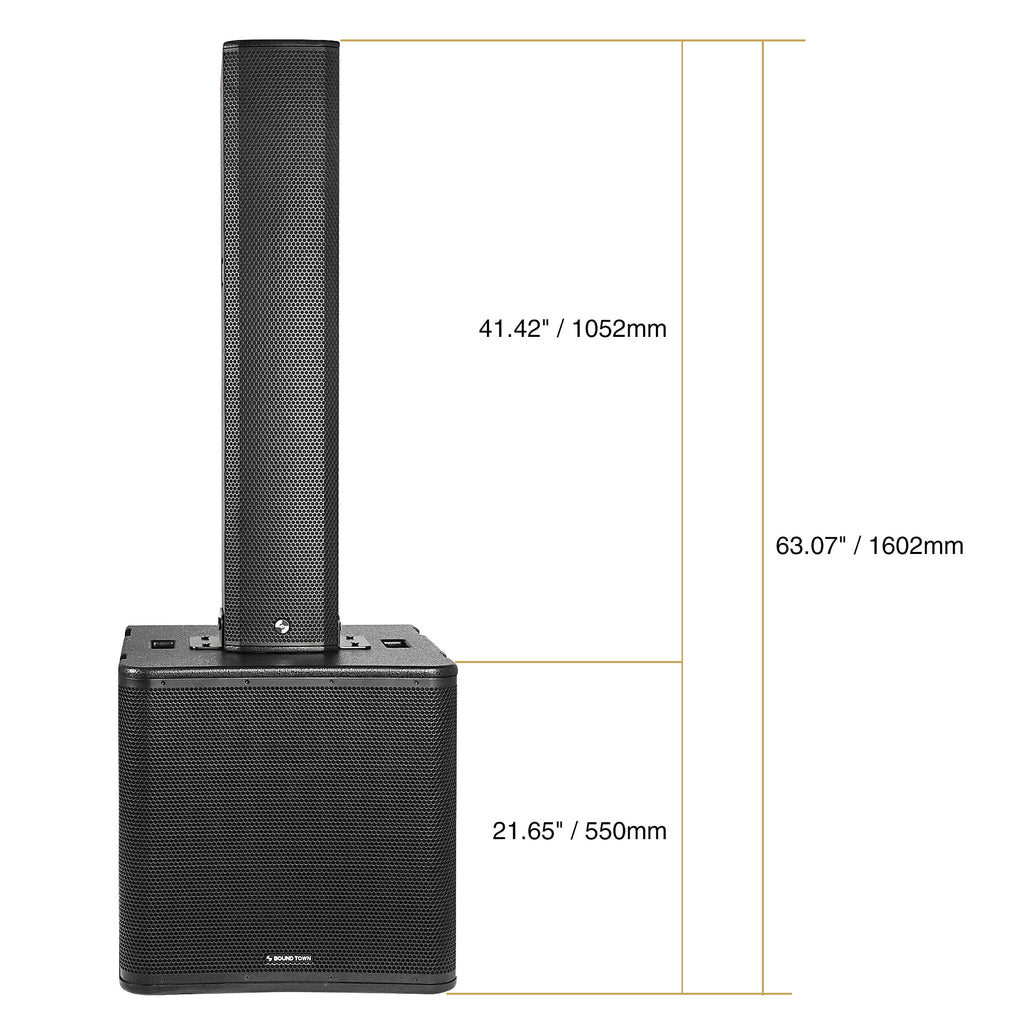

Dimension & Weight
Model | CARME-18SPW (black) | CARPO-K12PW | CARPO-LB-2PRS |
Product Width (in.) | 21.7" | 7.9" | 5.9" |
Product Height (in.) | 20.9" | 41.7" | 2.4" |
Product Depth (in.) | 23.6" | 10.2" | 2.4" |
Product Weight (lb.) | 84.4 lbs | 53.1 lbs | 2.2 lbs |
Package Width (in.) | 24.6" | 10.8" | 6.7" |
Package Height (in.) | 23.6" | 47.0 | 3.9" |
Package Depth (in.) | 26.8" | 13.2" | 3.9" |
Package Weight (lb.) | 89.0 lbs | 58.1 lbs | 2.6 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
▶ CARME-18SPW User Manual (V2), purchased after 12.02.24
▶ CARME-18SPW User Manual (V1), discontinued
▶ CARPO-K12PW User Manual
