FL-21S212X2S | Passive Line Array Speaker System with 21" Subwoofer, 2 x Dual 12" Loudspeakers, Stacking Frame, Caster Board









- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- DOWNLOADS
- REVIEWS

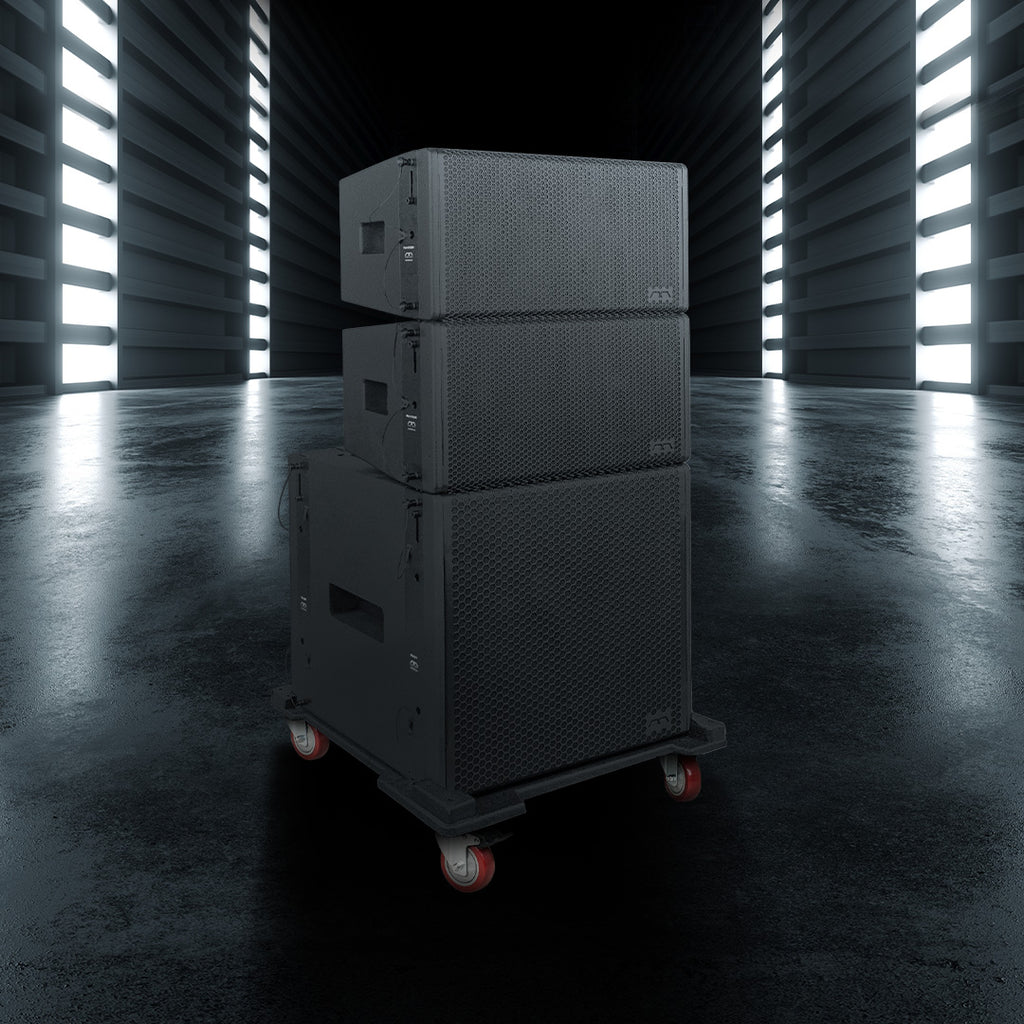

The MODE Audio series FL-21S212X2S line array system set is a comprehensive audio solution that includes:
- (2) FILA-212LMH Dual 12" 3-Way 3900W Full-Range Line Array Loudspeaker
- (1) FILA-21S 21" 4000W Subwoofer
- (1) FILA-SSF Stacking Frame
- (1) FILA-1821CB Caster Board
This all-in-one kit is designed to deliver exceptional audio performance across various venues, ensuring clear sound and extensive coverage. Whether for large concerts, performances, or events, the FL-21S212X2S meets your needs with powerful bass and crisp highs.
The FILA-212LMH three-way line array speakers feature dual 12-inch neodymium woofers, a 5.5-inch mid-frequency transducer, and a 2-inch coaxial high-frequency compression driver, delivering 1950W RMS and 3900W program power (LF: 1600W @ 8Ω, MF/HF: 350W @ 16Ω). This three-way bi-amped setup effectively separates low and mid/high frequencies, allowing for precise frequency control and reduced distortion.
The FILA-21S subwoofer is equipped with a 21-inch high-excursion woofer and a 6-inch voice coil, featuring a 540 oz magnet that delivers 2000W RMS and 4000W program power at 8Ω, providing extreme bass performance for professional audio setups. The FILA-21S can be placed on the ground, enhancing stability and optimizing sound projection for large venues. The FILA-1821CB caster board is specifically designed for the FILA-21S, allowing for effortless transportation and mobility. Meanwhile, the FILA-SSF stacking frame ensures seamless integration and solid support for stacking FILA-212LMH speakers on top of the FILA-21S subwoofer, enhancing audio performance in ground stack configurations.
- MODE AUDIO SERIES FL-21S212X2S LINE ARRAY SYSTEM SET: The FL-21S212X2S set includes (2) FILA-212LMH line array speakers, (1) FILA-21S subwoofer, (1) FILA-SSF stacking frame, and (1) FILA-1821CB Caster Board—delivering a comprehensive all-in-one line array solution.
- FILA-212LMH 3-WAY LINE ARRAY SPEAKERS: Each FILA-212LMH features dual 12" neodymium woofers, a 5.5" MF transducer with 3.5" voice coil, and a 2" coaxial HF compression driver with a 2" diaphragm, delivering 1950W RMS and 3900W program power (LF: 1600W @ 8Ω, MF/HF: 350W @ 16Ω). 3-way bi-amped setup that separates low and mid/high frequencies, enabling precise frequency control and reducing distortion.
- FILA-21S LINE ARRAY SUBWOOFER: The FILA-21S subwoofer is equipped with a 21" high-excursion woofer, a 6" voice coil, with a 540 oz magnet delivering 2000W RMS and 4000W program power at 8Ω, for extreme bass performance in professional audio setups. The FILA-21S can be placed on the ground, providing enhanced stability and optimal sound projection for large venues.
- MODE AUDIO FILA-1821CB CASTER BOARD: Elevate your setup with the FILA-1821CB caster board, designed specifically for the FILA-21S subwoofer. Effortlessly transport your subwoofers or utilize them as a mobile ground stack for enhanced mobility and convenience.
- MODE AUDIO FILA-SSF STACKING FRAME: Designed exclusively for stacking MODE Audio FILA-212LMH line array speakers on the top of FILA-21S line array subwoofer, the FILA-SSF stacking frame ensures seamless integration with solid and secure support, enhancing audio performance for ground stack setups.
Specifications
Model | FILA-212LMH | FILA-21S |
Active / Passive | Passive | Passive |
Frequency Range | 42 Hz - 20k Hz | 25 Hz - 200 Hz |
Frequency Response | 42 Hz - 20k Hz | 25 Hz - 200 Hz |
Sensitivity | 104 db (Biamped LF) 114 db (Biamped MF/HF) |
106 dB |
SPL Max | 146 dB | 142 dB |
Dispersion | 120 Degrees Horizontal | Omnidirectional |
Configuration | High power dual 12" 3-way line array loudspeaker | Hight Power 21" Subwoofer / Stackable |
Transducer | LF: 2 x 12" ND woofer front loaded (4" VC) MF: 5.5" ND MF transducer HF: 2" ND Coxial compression driver |
-- |
Voice Coil | 4.0" | 6.0" |
Magnet | -- | 540 oz |
Impedance | LF=8Ω (LFwired individually) MF/HF=16Ω | 8Ω |
Power Handling | 1950W RMS, 3900W Program | 2000W RMS, 4000W Program |
Enclosure Material | High-grade 100% birch plywood | High-grade 100% birch plywood |
Mounting Hardware | Three points high temper aluminum rigging with easy setting locking mode configuration | Three points high temper aluminum rigging with easy setting locking mode configuration |
Finish | Textured black polyurea | Textured black polyurea |
Grill & Rigging Component | Steel with anti-corrosion coat | Steel with anti-corrosion coat |
Amplifier | -- | -- |
Input | 4 Pin SPEAKON | 4-Pin Speakon |
Output | 4 Pin SPEAKON | 4-Pin Speakon |
Signal Processing | -- | -- |
Control | -- | -- |
Indicator | -- | -- |
Voltage | -- | -- |
Crossover Parts# | -- | -- |
High Frequency Driver Parts# | -- | -- |
Low Frequency Woofer Parts# | -- | -- |
Dimension & Weight
Model | FILA-212LMH | FILA-21S | FILA-SSF | FILA-1821CB |
Product Width (in.) | 27.4" | 27.5" | 17.7" | 32.9" |
Product Height (in.) | 19.3" | 29.1" | 11.7" | 6.2" |
Product Depth (in.) | 13.9" | 25.7" | 1.2" | 31.3" |
Product Weight (lb.) | 74.1 lbs | 185.0 lbs | 5.0 lbs | 29.0 lbs |
Package Width (in.) | 31.4" | 31.4" | 20.7" | 35.8" |
Package Height (in.) | 23.2" | 33.1" | 14.7" | 10.2" |
Package Depth (in.) | 18.7" | 30.3" | 3.3" | 34.3" |
Package Weight (lb.) | 92.8 lbs | 198.4 lbs | 6.2 lbs | 35.0 lbs |
