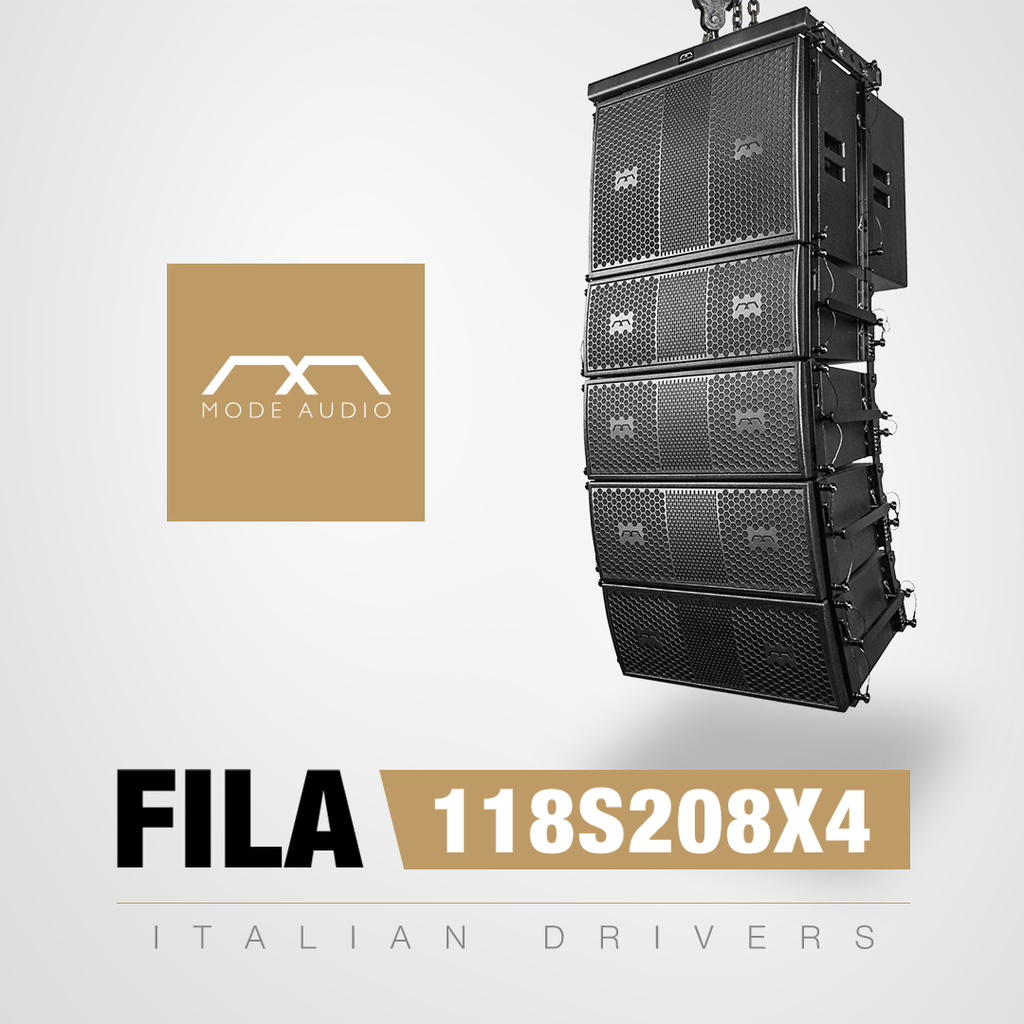

The Sound Town Mode Audio Series FILA-118S208X4 line array speaker system includes:
- (4) FILA-208 Dual 8" Line Array Speakers, Full-Range / Bi-Amp Switchable
- (1) FILA-118S 18-inch Line Array Subwoofer
- (1) FILA-208FF Flying Frame
Experience unmatched audio quality with Sound Town’s FILA-118S208X4 passive line array set, featuring premium Italian-made components. The built-in Italian driver guarantees superior audio excellence, taking your music to unprecedented heights. The FILA-118S208X4 set includes (4) FILA-208 line array speakers, (1) FILA-118S line array subwoofer and (1) FILA-208FF flying frame.
Each FILA-208 line array speaker boasts Italian-made dual 8” high-efficiency woofers and a 3” neodymium compression driver, with each FILA-208 speaker capable of delivering an impressive 500W RMS and 1000W program at 16Ω. Easily switch between full-range and bi-amp modes accommodating both straightforward and more advanced setups. The FILA-118S passive line array subwoofer features an Italian-made 18“ transducer with a 4.5” voice coil, capable of 1200W RMS, 2400W program power output at 8Ω. Easily integrate FILA-208 line array speakers and FILA-118S line array subwoofer using the provided FILA-208FF flying frame.
Crafted within a high-quality plywood enclosure, the FILA-118S208X4 embodies tour-grade craftsmanship. Compared to plastic or particleboard, plywood enclosures significantly reduce unwanted vibrations and distortion, even at high volume outputs, resulting in high-fidelity audio. Its reinforced metal grille and durable design ensure resilience even under challenging conditions, making it as the ideal choice for permanent installations or mobile setups. The FILA-208 is also designed with an integrated aluminum handle and rigging hardware, ensuring durable and sturdy protection during transportation. Whether outfitting clubs, bars, restaurants, school auditoriums, stages, or churches, the FILA-118S208X4 stands as the premier choice for small to medium-sized venues. Elevate your space with the distinguished FILA Series line array system!
- FILA SERIES - ITALIAN COMPONENTS: The FILA-118S208X4 passive line array set includes (4) FILA-208 line array speakers, (1) FILA-118S line array subwoofer and (1) FILA-208FF flying frame.
- FILA-208 LINE ARRAY SPEAKER: Each FILA-208 features an Italian-made dual 8" high-efficiency woofers and a 3” neodymium compression driver, capable of 500W RMS, 1000W program power at 16Ω. Easily switch between full-range and bi-amp modes.
- FILA-118S LINE ARRAY SUBWOOFER: The FILA-118S passive line array subwoofer features an Italian-made 18“ transducer with a 4.5” voice coil, capable of 1200W RMS, 2400W program power output at 8Ω.

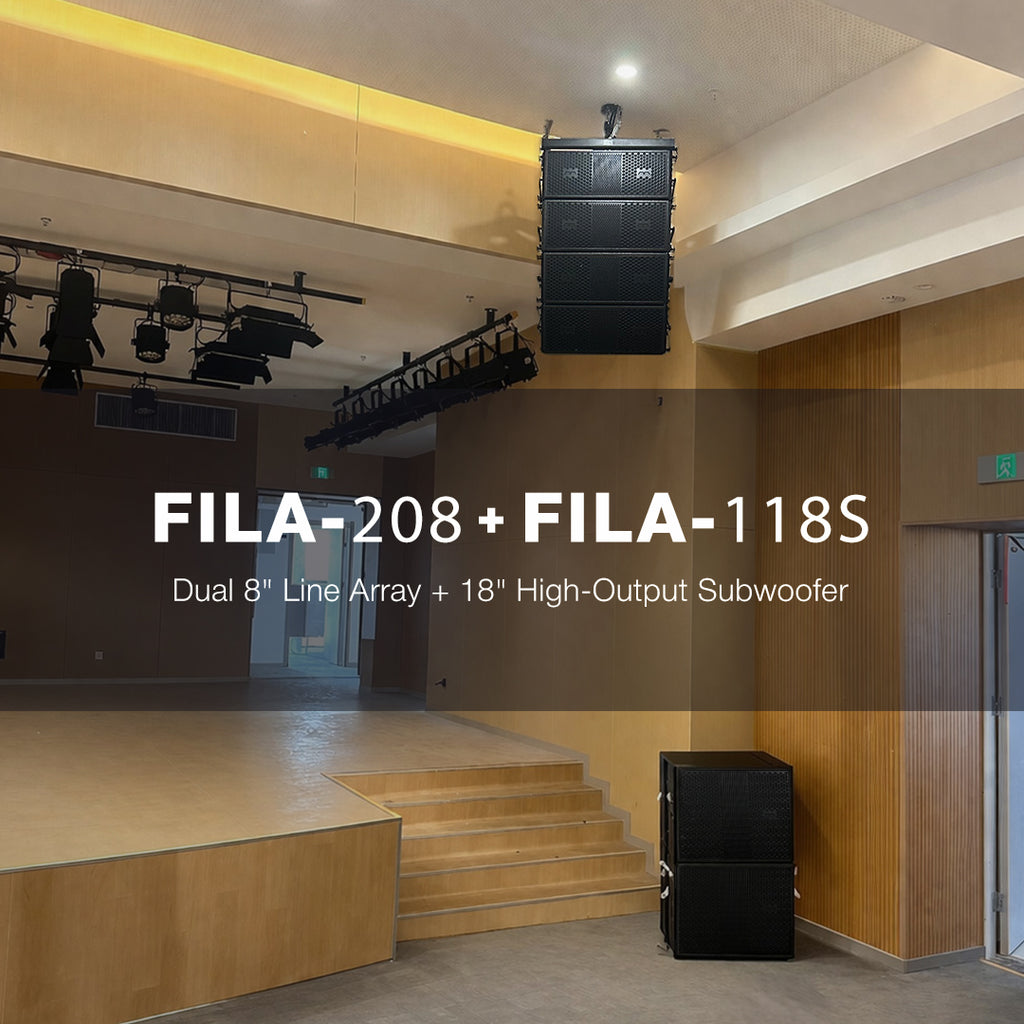

- VERSATILE AND ADAPTABLE: Easily integrate FILA-208 line array speakers and FILA-118S line array subwoofer using the provided FILA-208FF flying frame. The FILA-118S208X4 excels in small to medium venues including clubs, bars, theaters, restaurants, school auditoriums, churches, and more.
-
TOUR-QUALITY BUILD: Encased in a high-quality plywood enclosure, distortion is minimized even at high outputs, providing the clean, crisp audio you can expect from tour-quality craftsmanship. The FILA-208 is also designed with an integrated aluminum handle and rigging hardware, ensuring durable and sturdy protection during transportation.
Specifications
Model | FILA-208 | FILA-118S |
Active / Passive | Passive | Passive |
Frequency Range | 55 Hz - 20k Hz | 30 Hz - 800 Hz |
Frequency Response | 60 Hz - 20k Hz | 35 Hz - 800 Hz |
Sensitivity | 106 dB | 95 dB |
SPL Max | 136 dB | 129 dB |
Dispersion | 120 x 15 Degrees | Omnidirectional |
Configuration | Compact dual 8" passive full-range line array loudspeaker | 18" Passive Line Array Subwoofer |
Transducer | LF: 2 x 8" woofer, HF: 3" Diaphragm Neodymium Compression Driver | LF: 18" woofer, HF:-- |
Voice Coil | 2.0" | 4.5" |
Magnet | 35 oz | 173 oz |
Impedance | Passive: 16 ohm; Bi-amp: LF: 16 ohm, HF: 8 ohm | 8Ω |
Power Handling | 500W RMS / 1000W Program / 2000W Peak | 1200W RMS / 2400W Program / 4800W Peak |
Enclosure Material | High-grade 100% birch plywood | High-grade 100% birch plywood |
Mounting Hardware | Compact Line Array Aluminum Hardware | Compact Line Array Aluminum Hardware |
Finish | Texture coating | Texture coating |
Grill & Rigging Component | Steel with anti-corrosion coat | Steel with anti-corrosion coat |
Amplifier | -- |
-- |
Input | 4 Pin SPEAKON | 4 Pin SPEAKON |
Output | 4 Pin SPEAKON | 4 Pin SPEAKON |
Signal Processing | -- |
-- |
Control | -- |
-- |
Indicator | -- |
-- |
Voltage | 100V-240V (50-60 Hz) | 100V-240V (50-60 Hz) |
Crossover Parts# | -- |
-- |
High Frequency Driver Parts# | -- |
-- |
Low Frequency Woofer Parts# | -- |
-- |
Dimension & Weight
Model | FILA-208 | FILA-118S | FILA-208FF |
Product Width (in.) | 25.6" | 25.6" | 27.4" |
Product Height (in.) | 10.1" | 19.9" | 2.0" |
Product Depth (in.) | 13.8" | 23.0" | 15.8" |
Product Weight (lb.) | 54.5 lbs | 112.6 lbs | 24.3 lbs |
Package Width (in.) | 31.3" | 29.1" | 29.1" |
Package Height (in.) | 14.2" | 23.4" | 3.5" |
Package Depth (in.) | 17.7" | 26.6" | 17.3" |
Package Weight (lb.) | 60.0 lbs | 115.9 lbs | 29.3 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
