$299.99 $449.99

The CARPO-M106B is equipped with 10 x 3" woofers, 6 x 1.2" dome tweeters, and a low-inductance passive crossover. It can handle 300W RMS and 600W program power output at 8-ohm, delivering balanced and crisp audio throughout any small to medium-sized venues.

Constructed of an aluminum enclosure, the CARPO-M106B is built to withstand the elements. Its weather-resistant construction protects against dust and water, making it an ideal choice for outdoor installations and high-humidity environments. Combined with the speaker's versatile mounting options, the connectors with a waterproof cover, make it a reliable and flexible solution for both permanent and temporary audio setups.

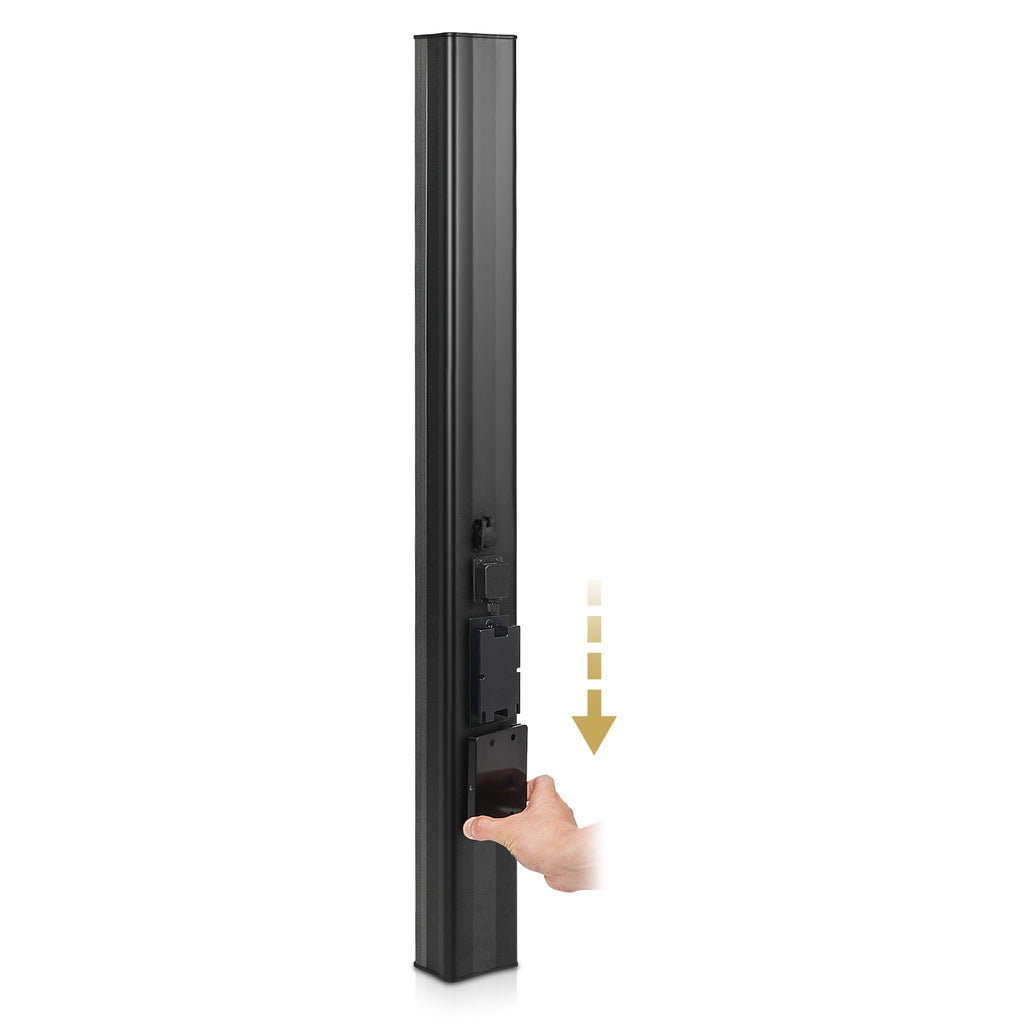

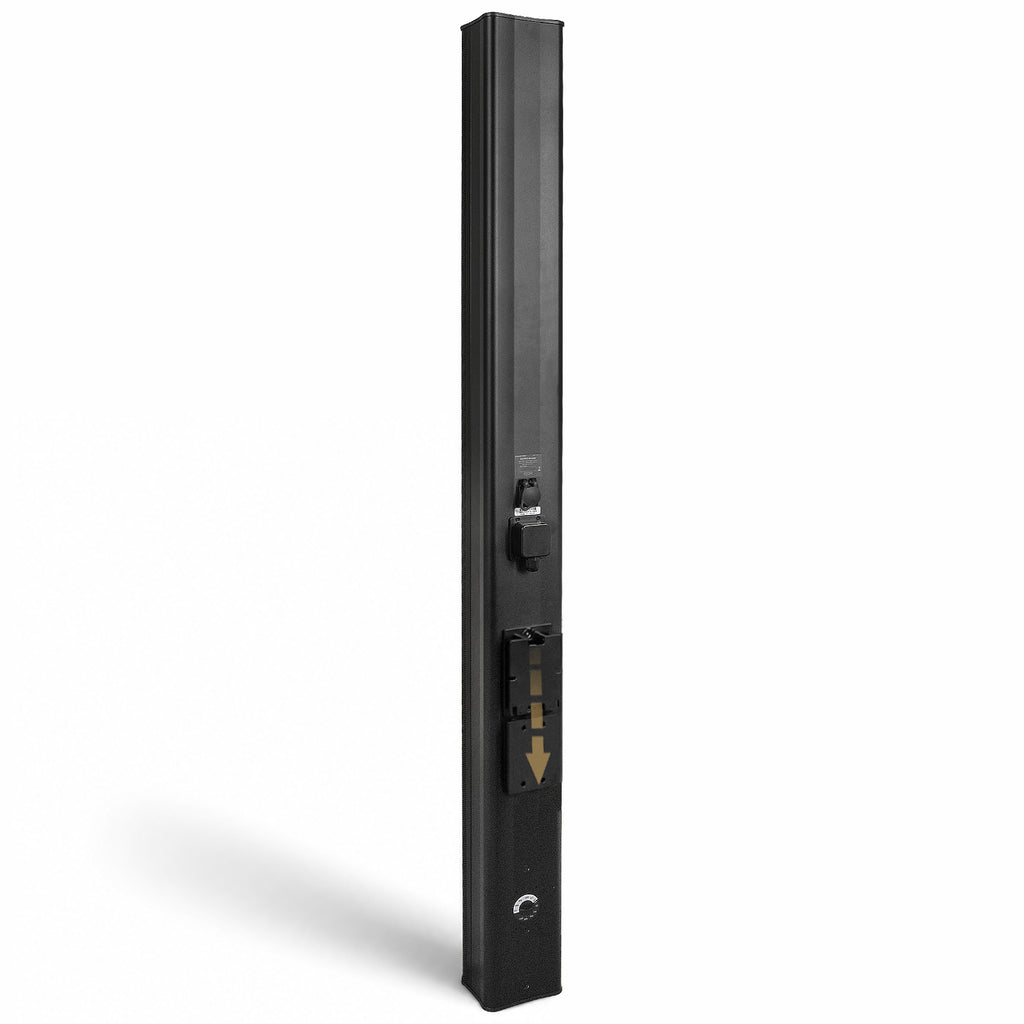

With direct radiating drivers built in, the column speaker has a 140° x 25° coverage. Even better, it comes with a standard wall mount bracket and there is also a four direction adjustable bracket with 0~10° of vertical, ± 90° of horizontal (STCL-AB, sold separately), which allows you to tilt the angle of the loudspeaker for optimal focusing on the listening area. Optional adapter STCL-POLESET is available for stand pole installation. Featuring both Speakon and EUROBLOCK connectors, the CARPO-M106B can be used as an installation speaker or a portable PA system. It is well-suited for a wide range of applications, including live stage performances, church services, conference centers, nightclubs, restaurants, and lounges.

  • SUPERB SOUND: The CARPO-M106B comes with 10 x 3" woofers, 6 x 1.2" dome tweeters and a low-inductance passive crossover. It handles 300W RMS, 600W program power output at 8-ohm and provides balanced and crisp audio throughout any small to medium-sized venues
  • DURABLE WEATHER-RESISTANT DESIGN: The CARPO-M106B boasts an weather resistant aluminum enclosure that provides sturdy construction and protects against dust and water, making it ideal for outdoor installations and high-humidity environments
  • FLEXIBLE MOUNTING: With direct radiating drivers built in, the column speaker has a 140° x 25° coverage. Even better, it comes with a standard wall mount bracket and there is also a four direction adjustable bracket with 0~10° of vertical, ± 90° of horizontal (STCL-AB, sold separately) that allows you to tilt the angle of the loudspeaker for optimal focusing on the listening area. Optional adapter STCL-POLESET is available for stand pole installation

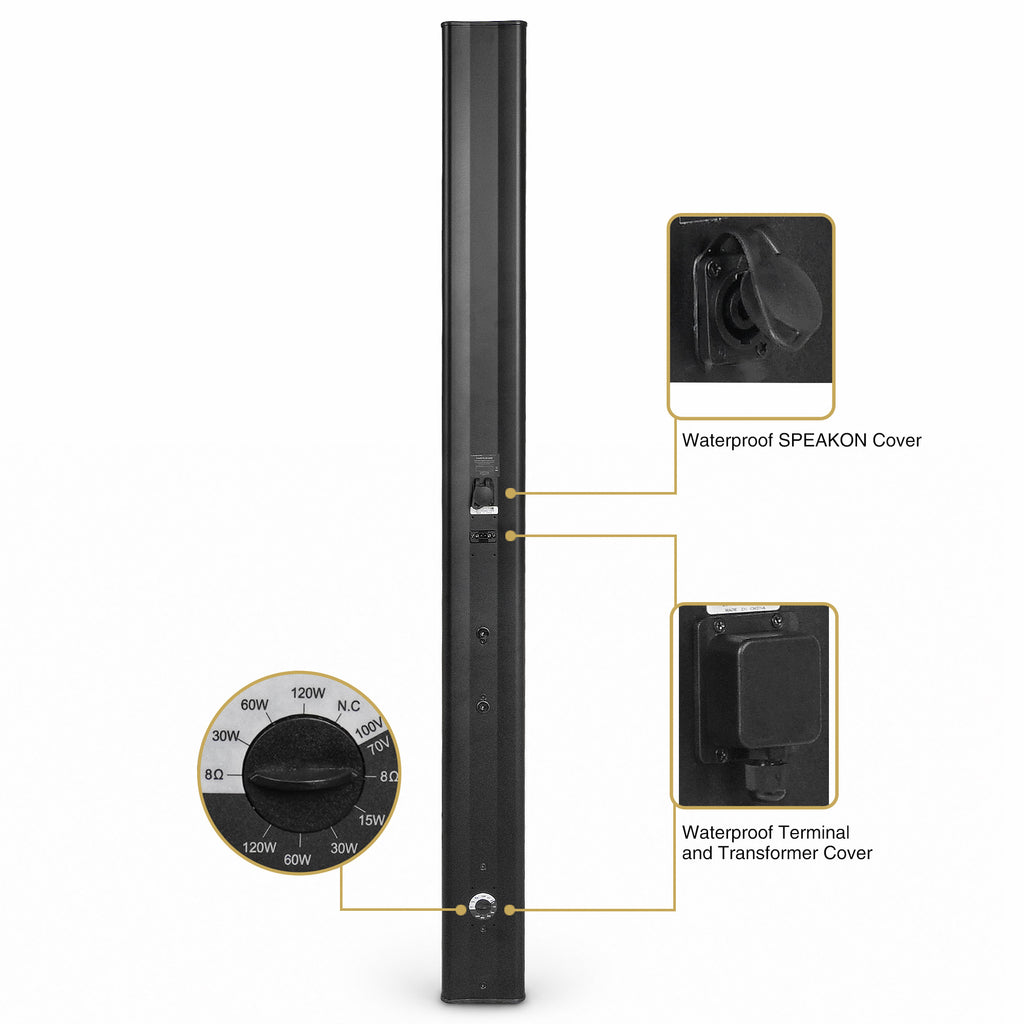

  • VERSATILE APPLICATIONS: The column speaker comes with both Speakon and EUROBLOCK connectors with waterproof cover, making it ideal as an installation speaker or portable PA speaker and is perfect for live stage performance, church, conference center, night club, restaurant, lounge and more

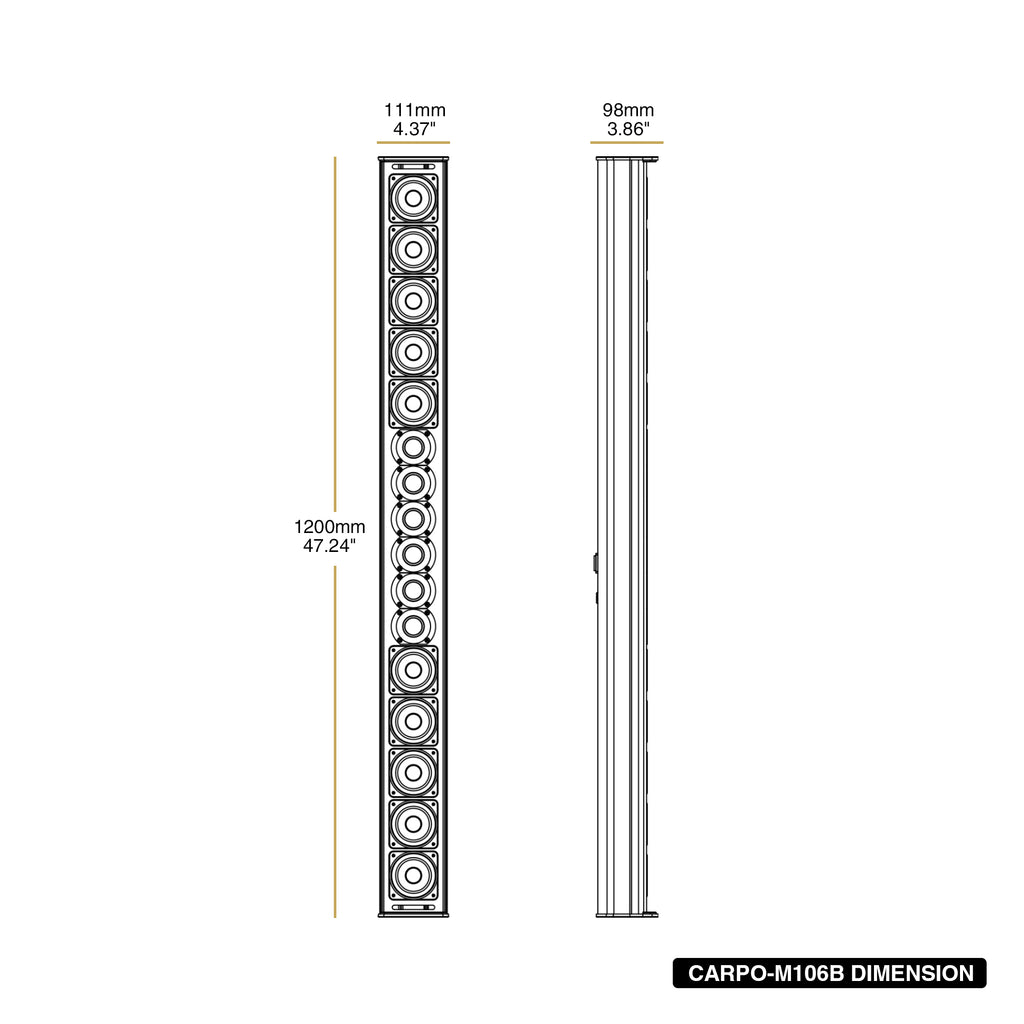

  • COMPACT AND LIGHTWEIGHT: The column speaker system is designed for maximum portability without compromising sound quality; it weighs less than 23 lbs and takes a small footprint. Column size: 4.4" x 3.9" x 47.2" (w x d x h)


Specifications

Model CARPO-M106B
Active / Passive passive
Frequency Range 95Hz~20K Hz
Frequency Response 100Hz~20K Hz
Sensitivity 97dB, 1W @ 1
SPL Max 125dB
Dispersion 140°x25° Degrees
Configuration 10X3" woofers and 6X1.2" dome tweeters
Transducer LF: 10 x 3", HF: 6 x 1.2"
Voice Coil 0.8"
Magnet 5.3 oz
Impedance
Power Handling 300W RMS, 600W PROGRAM
Enclosure Material High-grade 100% birch plywood
Mounting Hardware Wall-mount bracket or STCL-POLESET pole-mount adapter
Finish Texture coating
Grill & Rigging Component Steel with anti-corrosion coat
Amplifier --
Input Speakon & Barrier Strip
Output Speakon & Barrier Strip
Signal Processing --
Control --
Indicator --
Voltage 100V-240V (50-60 Hz)
Crossover Parts# --
High Frequency Driver Parts# --
Low Frequency Woofer Parts# --


Dimension & Weight

Product Width (in.) 3.9"  Package Width (in.) 6.8"
Product Height (in.) 47.2"  Package Height (in.) 52.7"
Product Depth (in.) 4.4"  Package Depth (in.) 7.4"
Product Weight (lb.) 19.6 lbs  Package Weight (lb.) 22.6 lbs


Warranty/Certifications

Manufacturer Warranty 1 Year
