CARPO-K12PW | High-Power Powered Wall-Mount Column Line Array Speaker w/ 6x5" Woofers, Dual Compression Drivers, Class-D w/ DSP, TWS, Plywood, Black
- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- DOWNLOADS
- REVIEWS

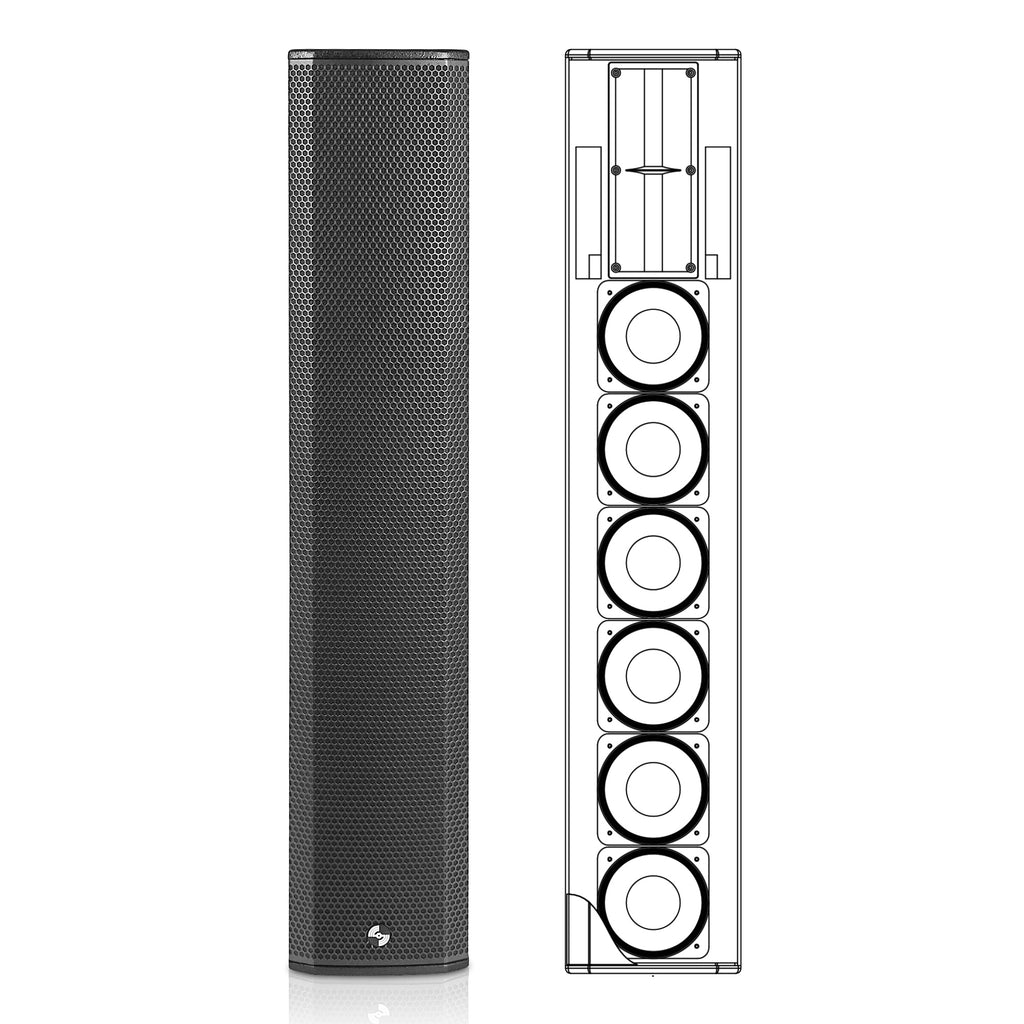

Get ready to experience amazing sound quality with our CARPO-K12PW Column Speaker from the CARPO series. This speaker is designed to give you fantastic audio in any situation and looks really cool too! It has six 5-inch woofers and two 3/4-inch compression drivers with linear horns, so you'll get strong, clear sound for all sorts of things. Plus, its built-in class-D amplifier delivers a strong output of 650W continuous and 1300W peak power, giving you both loud and crystal-clear audio.
The CARPO-K12PW sets a new standard in audio customization with its onboard digital signal processing (DSP). With four selectable modes and manual settings for the 3-band EQ, bass boost, and delay, you have complete control over your sound. The CARPO-K12PW also excels in connectivity, featuring dual 1/4-inch & XLR combo inputs, a 1/8-inch AUX input, Bluetooth capability for True Wireless Stereo (TWS), and an XLR output (mix/through out switchable), making it compatible with a wide range of sound and speaker systems.
Installation and setup are easy with the included wall-mount U-bracket and an adapter for a 10° tilt. The speaker also has a 35mm socket for tripods and speaker poles compatibility. For those looking for more, optional accessories like the CARPO-EP extension brackets and the CARPO-PFF flying frame are available for advanced setup configurations.
The CARPO-K12PW is a flexible speaker that works well in lots of places. You can use it permanently in places like big rooms, churches, restaurants, and cozy lounges. But it's also great for taking outside or setting up on a stage. It's perfect for making sure you get really good sound no matter where you are.
- CARPO SERIES CARPO-K12PW COLUMN SPEAKER: The CARPO-K12PW column speaker packs a punch with six 5-inch woofers and two 3/4-inch compression drivers. These drivers, paired with linear horns, give you a strong, clear sound. Plus, it's got a built-in class-D amplifier and digital signal processor (DSP) that can pump out 650W continuous and 1300W peak power
- ONBOARD DSP: Take complete control of your sound and music with the onboard digital signal processing (DSP), featuring 4 selectable modes, and manual settings are available for the 3-band EQ, bass boost, and delay, allowing you to fine-tune and optimize your audio
- FLEXIBLE CONNECTIVITY OPTIONS: (2) 1/4“ & XLR combo inputs, (1) 1/8” AUX, True Wireless Stereo (TWS) via Bluetooth, and (1) XLR output (mix/through out switchable) provide compatibility with a variety of sound and speaker systems
- VERSATILE MOUNTING OPTIONS: The CARPO-K12PW includes a wall-mount U-bracket and an adapter for 10° of tilt (left-right, down), giving you different ways to set it up. The optional CARPO-EP extension bracket is designed to link two CARPO-K12PW speakers, or the CARPO-PFF flying frame for suspension setup (these are sold separately)
- DURABLE CONSTRUCTION & WIDE APPLICATIONS: Made from strong birch plywood and coated with a tough black texture, the CARPO-K12PW is built to last, whether you use it in one place or take it on the go. It's great for all sorts of places, like big rooms, churches, restaurants, cozy lounges, and even outdoor spots
Specifications
Model | CARPO-K12PW |
Active / Passive | Active |
Frequency Range | 70 Hz - 20 kHz |
Frequency Response | 75 Hz - 20 kHz |
Sensitivity | 101 dB |
SPL Max | 135 dB |
Dispersion | 120 x 20º (H x V) |
Configuration | High-Power Wall-Mount Column Line Array Speaker |
Transducer | LF: 6 x 5" Woofer, HF: 2 x 0.75" Compression Drivers |
Voice Coil | 1.5" |
Magnet | 21 oz |
Impedance | 8Ω |
Power Handling | 650W Continuous / 1300W Peak |
Enclosure Material | High-grade 100% birch plywood |
Mounting |
35mm mounting socket U-bracket (included) CARPO-EP extension bracket (not included) CARPO-PFF flying frame (not included) |
Finish | Texture coating |
Grill & Rigging Component | Steel with anti-corrosion coat |
Amplifier | Class-D w/ DSP, TWS |
Input | 2 x 1/4" & XLR combo (MIC/LINE) + 1 X 1/8" (AUX) / Bluetooth |
Output | XLR (mix/link out) |
Signal Processing | DSP: 3-BAND EQ / BASS BOOST / MODE SELECT / TWS BLUETOOTH |
Control | -- |
Indicator | -- |
Voltage | 100V-240V (50-60 Hz) |
Plate Amp Parts# | STPA-G750DSP-V |
Crossover Parts# | -- |
High Frequency Driver Parts# | -- |
Low Frequency Woofer Parts# | -- |

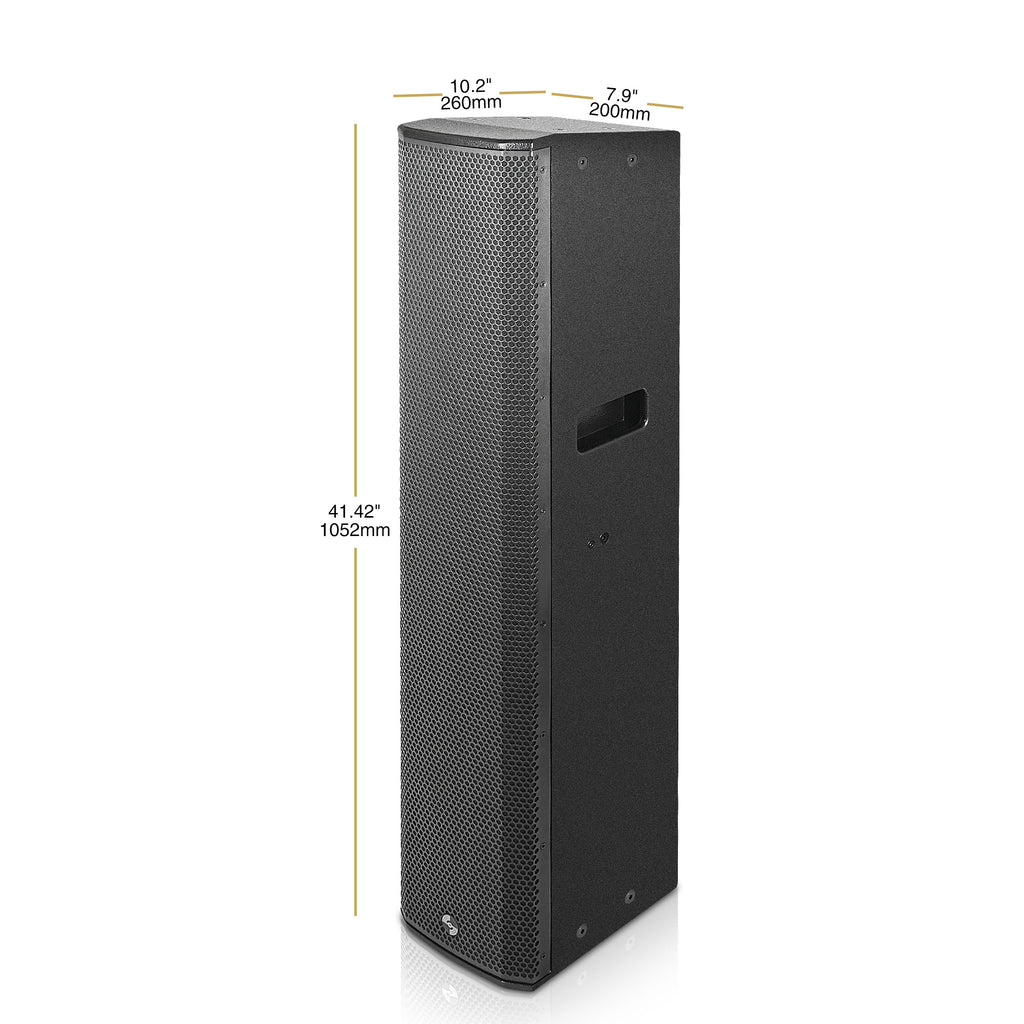

Dimension & Weight
Product Width (in.) | 7.9" | Package Width (in.) | 10.8" |
Product Height (in.) | 41.7" | Package Height (in.) | 47.0" |
Product Depth (in.) | 10.2" | Package Depth (in.) | 13.2" |
Product Weight (lb.) | 53.1 lb | Package Weight (lb.) | 58.1 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
