The Sound Town CARME Series CARME-115WPW is the ultimate combination of performance and portability, featuring a 15” woofer and a built-in lightweight and powerful Class-D amplifier. It comes with 400W continuous, 800W peak power handling capability and powerfully splits the 800 Watts between the subwoofer and high frequency driver. Pairing a 15” woofer with a 1.75” titanium compression driver, the Sound Town CARME-115WPW powered PA speaker provides outstanding full-range sound at all volume levels. The onboard digital signal processor (DSP) provides excellent system optimization and EQ capabilities. With a frequency range of 45 Hz to 20K, this full-range speaker ensures a wide and accurate sound reproduction. It is ideal as a PA speaker for live music and venues such as clubs, restaurants, churches, etc. and its trapezoidal design with angled sides allows you to position it as a monitor wedge as well. Whether you use it in courtyards, meeting rooms, schools, churches, or if you are in a band or running any music gigs, this speaker can be relied on for clear and rich sound and consistent performance.

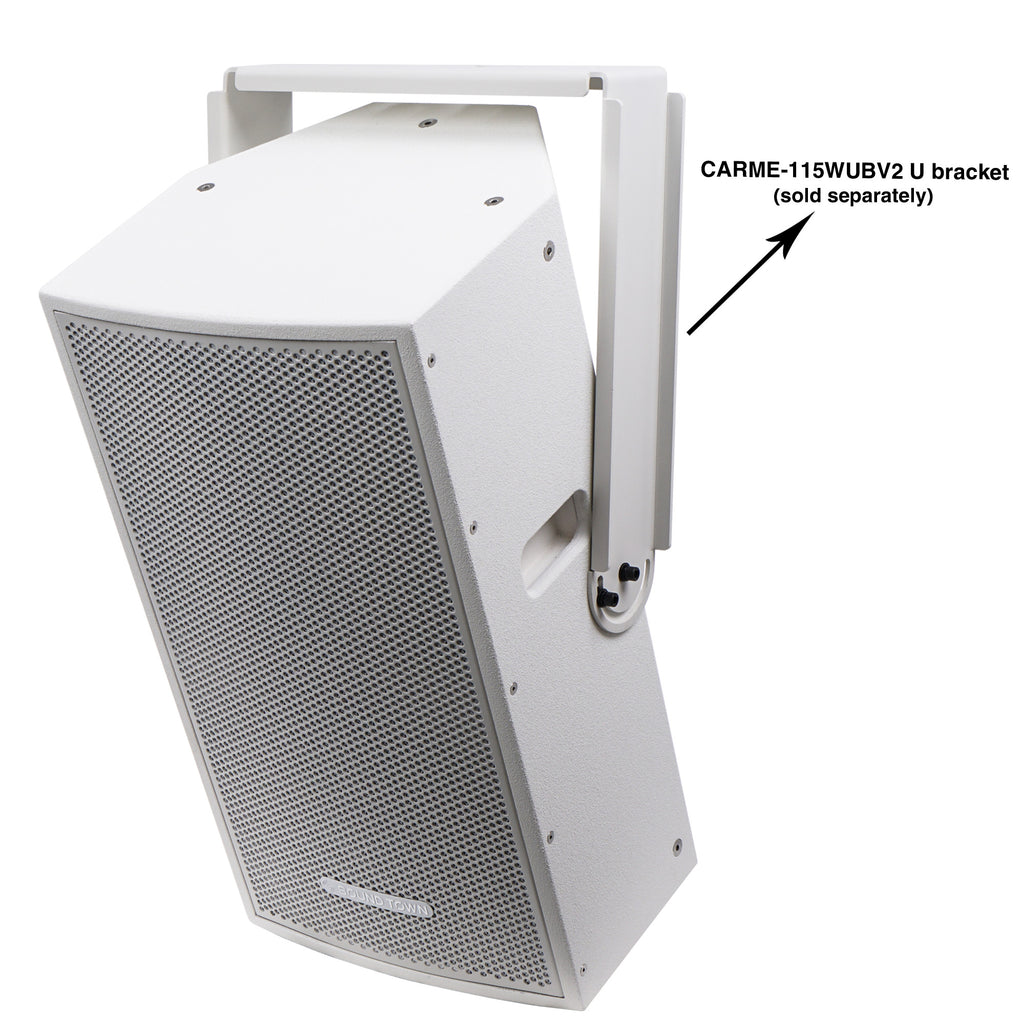

The CARME-115WPW speaker is equipped with XLR inputs which can be integrated into your PA system. The Powercon connectors enable you to daisy chain with the other PA speakers. It also has one standard tripod speaker stand mount on the bottom and M8 inserts for suspended installation (CARME-115WUBV2 mounting U bracket available separately), which makes it versatile for both indoors and outdoors. The speaker is optimized and works great with the CARME series subwoofers (CARME-18SPW / CARME-18SWPW sold separately) when you would like to upgrade to earth shaking bass. With rugged birch plywood construction and white textured paint, the Sound Town CARME-115WPW speaker provides stellar sound and performance without sacrificing durability.
- VERSATILE APPLICATIONS: A professional-grade full range 2-way powered PA speaker for meeting rooms, courtyards, churches, restaurants, stages and any other small to medium venues. Perfect for either main sound reinforcement or monitoring applications
- OUTSTANDING SOUND QUALITY: 15” top quality woofer together with a built-in Class D amplifier delivers massive bass in a compact enclosure; 1.75” titanium compression driver generates clean audio and stellar quality, With a frequency range of 45 Hz to 20K, this full-range speaker ensures a wide and accurate sound
- ONBOARD DSP: The onboard digital signal processor (DSP) provides excellent system optimization and EQ capabilities
- FLEXIBLE MOUNTING & CONNECTING OPTIONS: Standard pole mount on the bottom and M8 fittings for flown applications (mounting U bracket CARME-115WUBV2 sold separately); the CARME powered PA speaker is optimized and works great with the CARME subwoofer when you would like to add room shaking bass (CARME-18SPW/CARME-18SWPW available separately). The Powercon connectors enable you to daisy chain with the other PA speakers
-
STURDY CONSTRUCTION W/ PORTABILITY: The white speaker enclosure is more than beautiful. It comes with 5/8” textured and painted birch plywood with heavy-duty metal grille and holds up to touring applications. The small form factor and ergonomic handles make it easy to transport without sacrificing durability
Specifications
Model | CARME-115BPW, CARME-115WPW |
Frequency Response | 45 Hz - 20 kHz |
Sensitivity | 100 dB (Passive) |
SPL Max | 128 dB |
Dispersion | 100º x 55º (H x V) |
Configuration | 15" active multi-angle full-range loudspeaker |
Transducer | LF: 1 x 15", HF: 1 x 1.75" diaphragm |
Impedance | 8Ω Nominal |
Power Handling | 400 / 800W |
Connectors | -- |
Cabinet Construction | High-grade 100% birch plywood |
Mounting | M8 inserts / optional U bracket |
Finish | Texture coating (RAL colors available) |
Grill & Rigging Component | Steel with anti-corrosion coat |

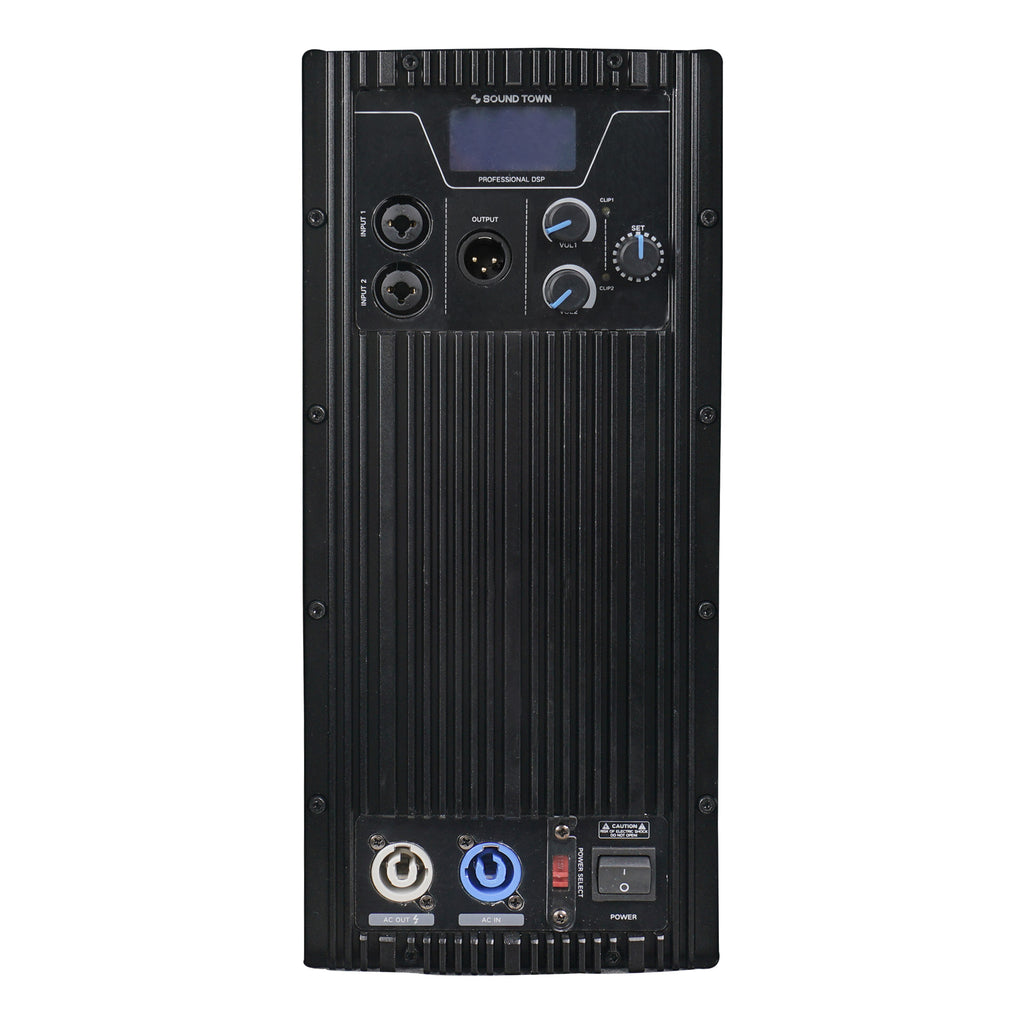

Amplifier | Class-D amplifier w/ DSP |

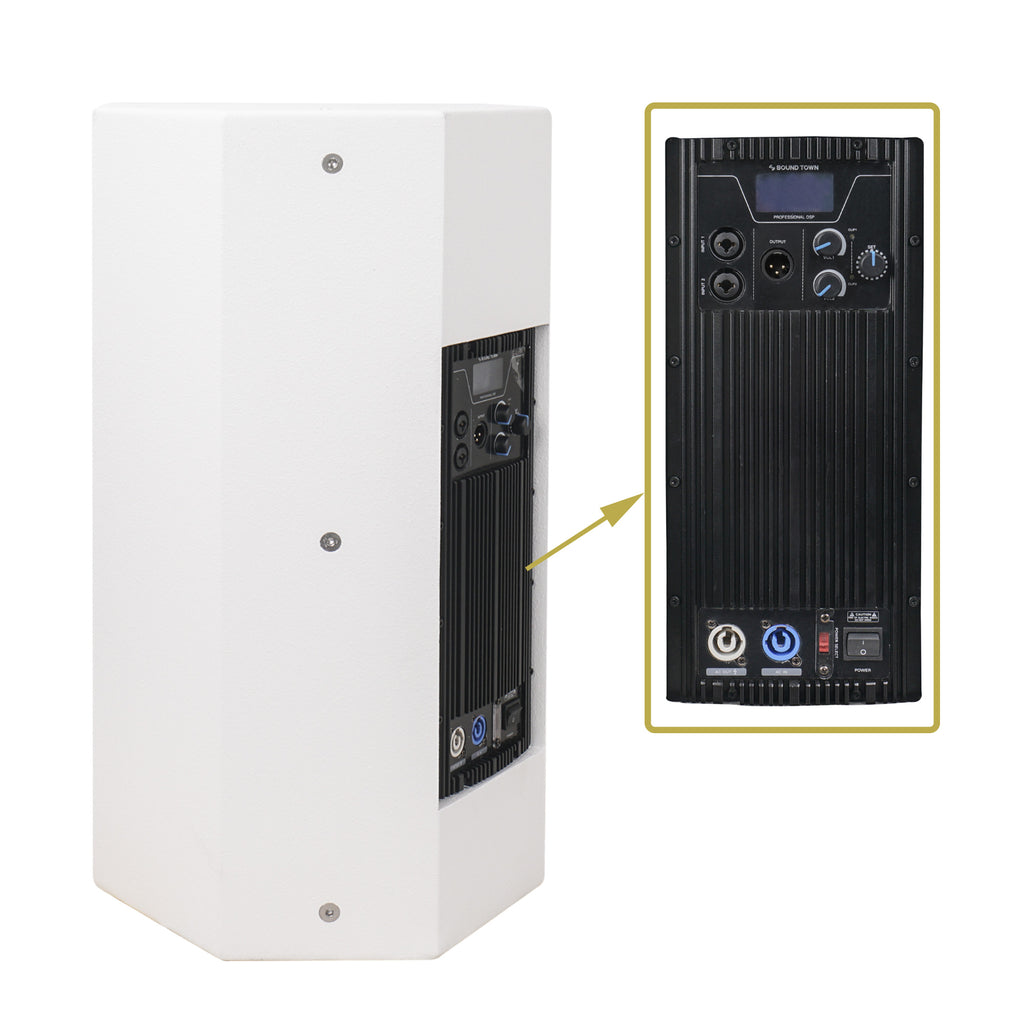

Input | 2 x XLR-1/4" combo, 3.5mm AUX, Bluetooth |
Output | XLR line out |
Control | Master/Input 1/Input 2 volume |
Indicator | Power, limit |
Voltage | 100V-240V (50-60 Hz) |
Dimension & Weight
Product Width (in.) | 17.5" | Package Width (in.) | 20.5" |
Product Height (in.) | 29.9" | Package Height (in.) | 33.3" |
Product Depth (in.) | 15.7" | Package Depth (in.) | 18.7" |
Product Weight (lb.) | 63.5 lbs | Package Weight (lb.) | 65.6 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
▶ CARME Series Brochure
▶ CARME-115WPW User Manual
▶ CARME-115WPW DSP Software (discontinued, for older versions)
