CARME-115BG3 | CARME Series 15" 900W 2-Way Professional PA DJ Speaker, Black w/ Titanium Driver for Installation, Live Sound, Karaoke, Bar, Church
- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- REVIEWS
The Sound Town CARME-115BG3 is the ultimate combination of performance and portability, featuring a 15” woofer and 450W RMS, 900W program of power handling capability. Pairing a long-excursion 15” powerful woofer with 70oz magnet, and a 1.75" diaphragm titanium compression driver, the Sound Town CARME-115BG3 passive PA speaker provides outstanding full-range sound at all volume levels. It is ideal as a PA speaker for small to mid-size venues and its trapezoidal design with angled sides allows you to position it as a monitor wedge as well. Features 90° x 60° rotatable horn and a variety of U-bracket options (vertical or horizontal) for rigging, allowing for flexible setup and speaker placement (CARME-115BUB-H or CARME-115BUB-V wall mount bracket, sold separately). The multipurpose mounting adaptor can either be used as a universal 35mm socket for a speaker stand pole or for fixed installation with a wall mount bracket.

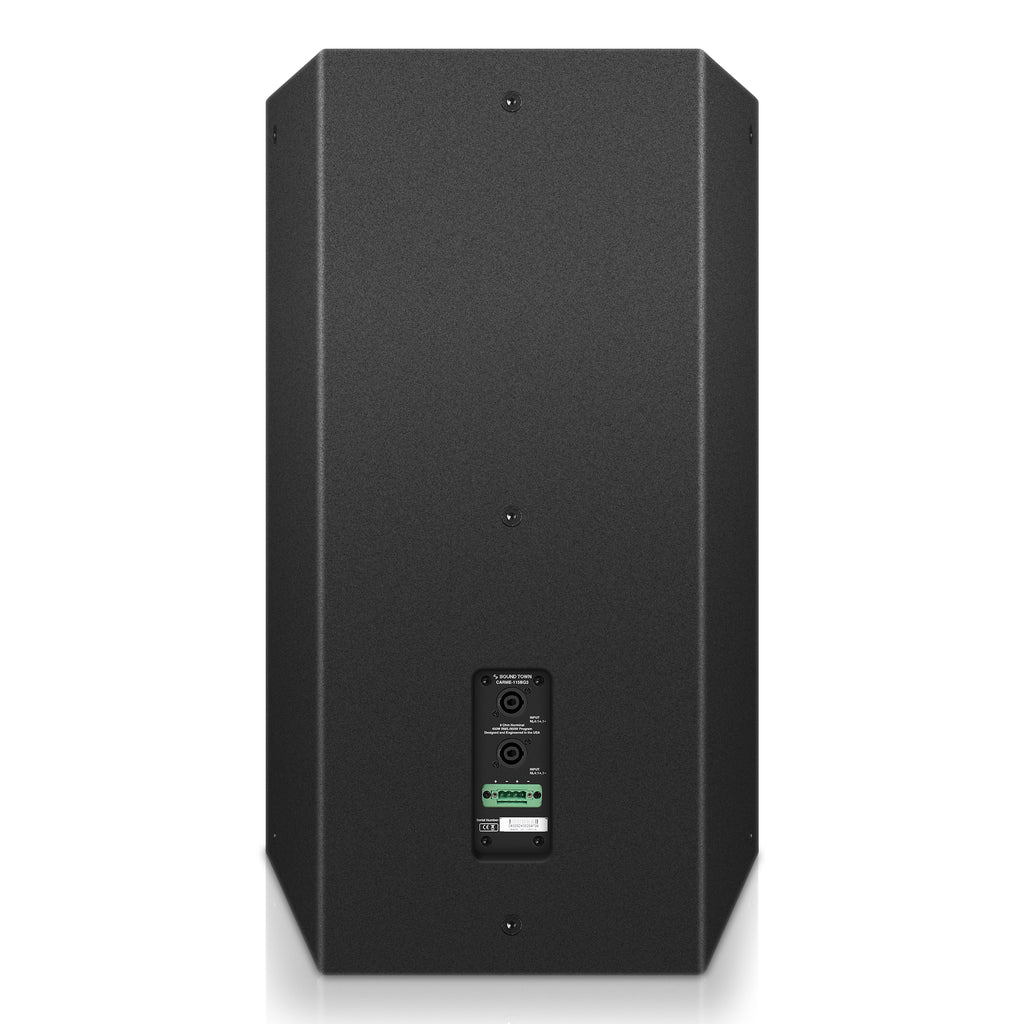

The CARME-115BG3 speaker is equipped with two speakon connectors and one barrier strip. With rugged birch plywood construction and black textured paint, the Sound Town CARME-115BG3 speaker provides stellar sound and performance without sacrificing durability. Whether you use it in courtyards, meeting rooms, schools, churches, or if you are in a band or running any music gigs, this speaker can be relied on for quality sound and consistent performance.
- A professional-grade full range 2-way loudspeaker for meeting rooms, courtyards, churches, restaurants, stages and any other small to medium venues. Perfect for either main sound reinforcement or monitoring applications.

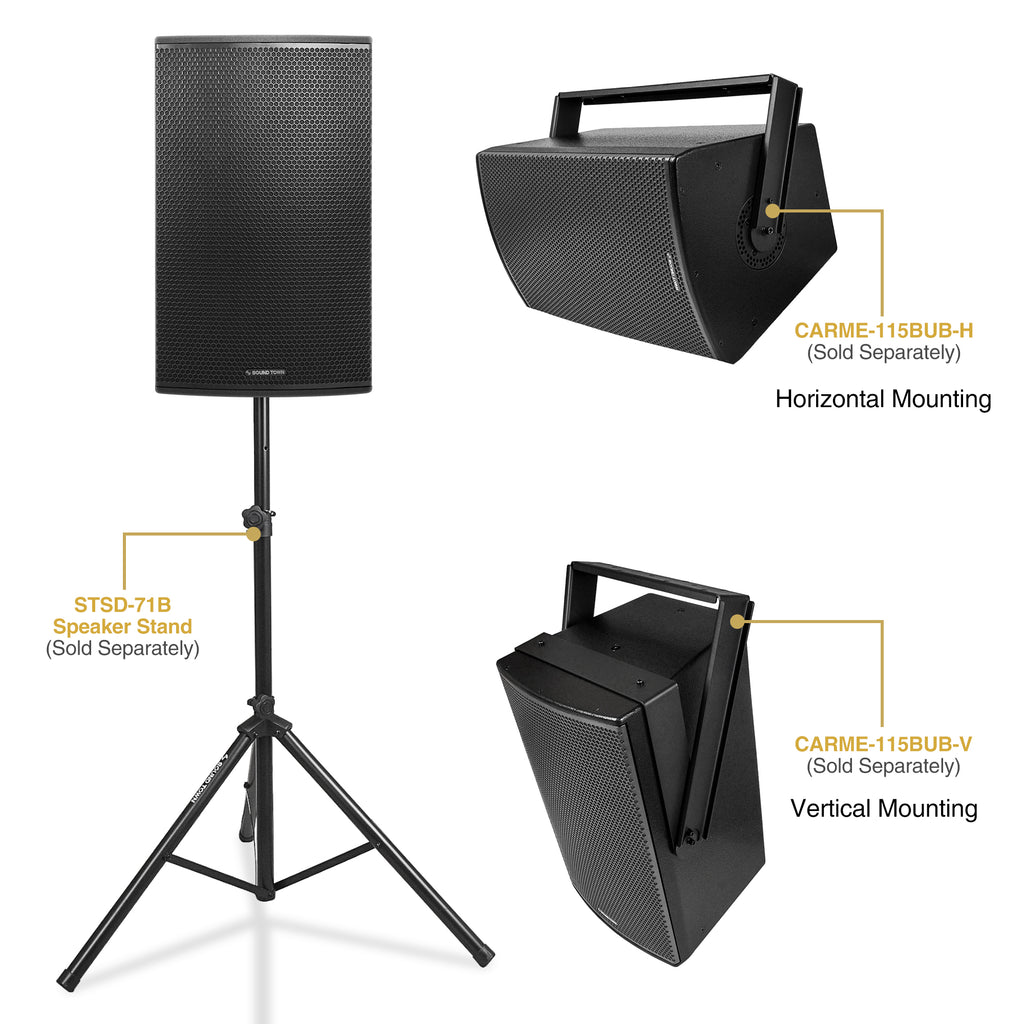

- The speaker features a 90° x 60° rotatable horn and a variety of U-bracket options (vertical or horizontal) for rigging, allowing for flexible setup and speaker placement (CARME-115BUB-H or CARME-115BUB-V wall mount bracket, sold separately).

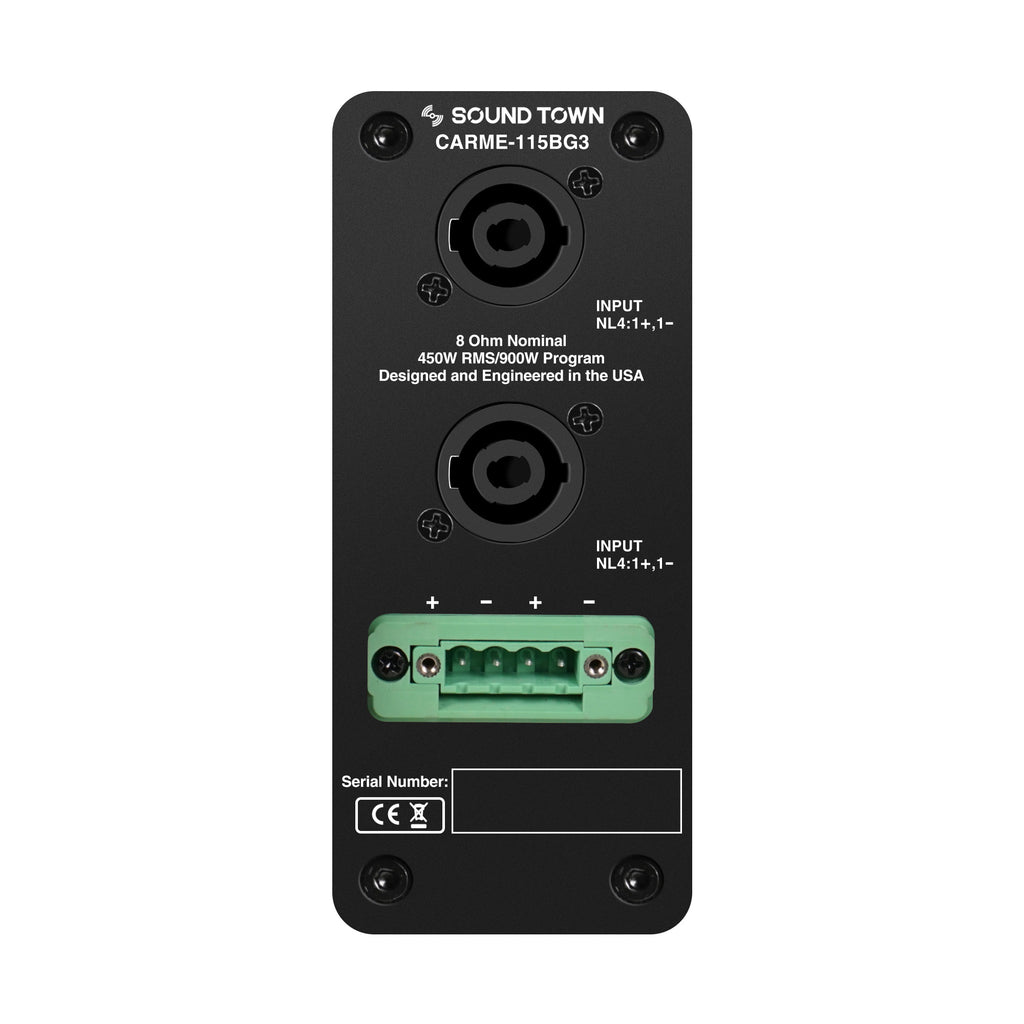

- Massive 450W RMS, 900W program power handling capability (8-Ohm); Long-excursion 15” powerful woofer with 70oz magnet for low-frequency punch in a compact enclosure and 1.75" diaphragm titanium compression driver stellar sound quality and performance; Two speakon (NL4) and one barrier strip input connectors makes it easy to connect with your PA system.

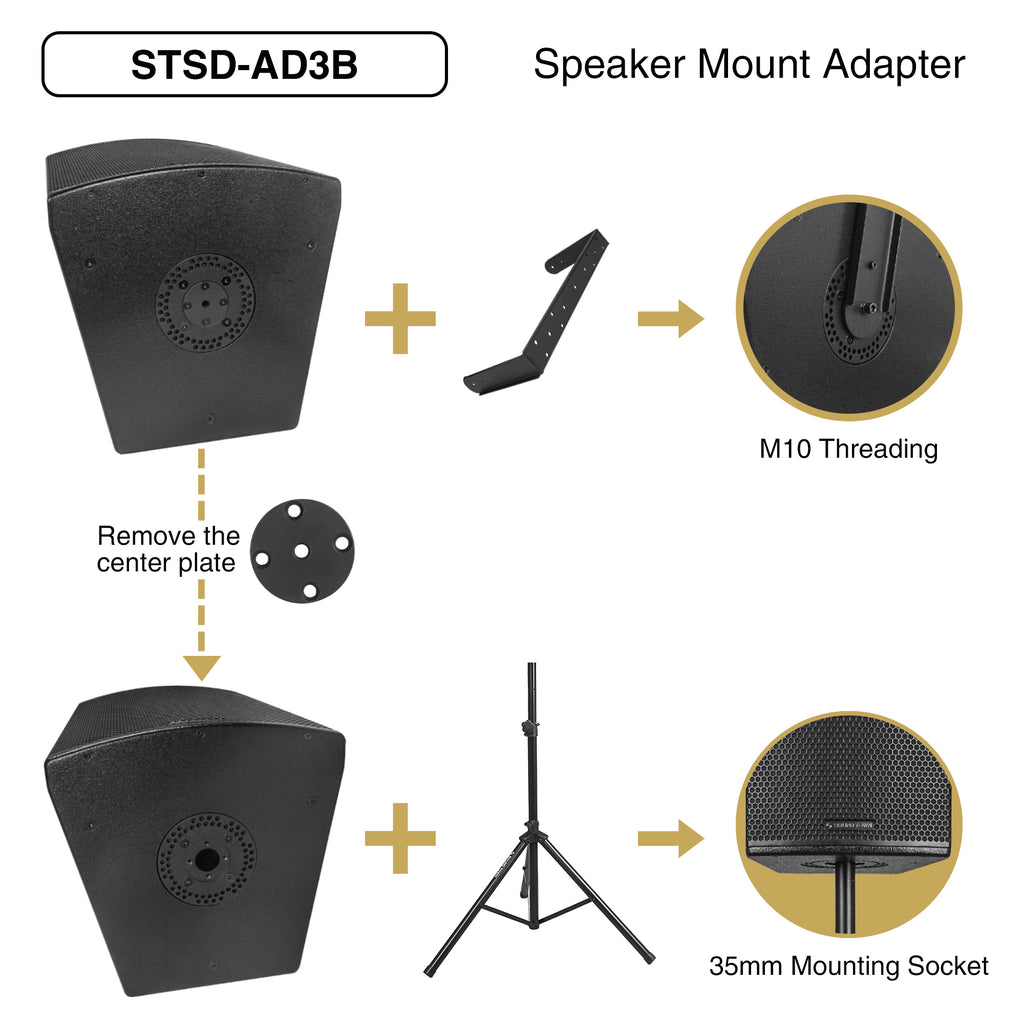

- The multipurpose mounting adaptor can either be used as a universal 35mm socket for a speaker stand pole or for fixed installation with a wall mount bracket.
- 5/8” textured and painted birch plywood, with heavy-duty metal grille. The small form factor makes it easy to transport without sacrificing durability. With heavy-duty metal grille and sturdy construction, it holds up to touring applications.
Specifications
Model | CARME-115BG3 |
Active / Passive | Passive |
Frequency Range | 35 Hz - 20kHz |
Frequency Response | 40 Hz - 20kHz |
Sensitivity | 102 dB |
SPL Max | 132 dB |
Dispersion | 90 º x 60 º (H x V) |
Configuration | 15" passive multi-angle full-range loudspeaker |
Transducer | LF: 1 x 15" woofer HF: 1 x 1.75" diaphragm titanium compression driver |
Voice Coil | 3" |
Magnet | 70 oz |
Impedance | 8Ω |
Power Handling | 450W RMS / 900W Program |
Enclosure Material | High-grade 100% birch plywood |
Mounting Hardware | CARME-115BUB-H / CARME-115BUB-V wall mount bracket / 35mm mounting sockets on the bottom, sold separately |
Finish | Texture coating |
Grill & Rigging Component | Steel with anti-corrosion coat |
Amplifier | -- |
Input | Speakon |
Output | Speakon |
Signal Processing | -- |
Control | -- |
Indicator | -- |
Voltage | 100V-240V (50-60 Hz) |
Crossover Parts# | -- |
High Frequency Driver Parts# | -- |
Low Frequency Woofer Parts# | -- |
Dimension & Weight
Product Width (in.) | 27.6" | Package Width (in.) | 30.9" |
Product Height (in.) | 16.7" | Package Height (in.) | 19.7" |
Product Depth (in.) | 16.7" | Package Depth (in.) | 20.9" |
Product Weight (lb.) | 52.6 lbs | Package Weight (lb.) | 58.2 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
